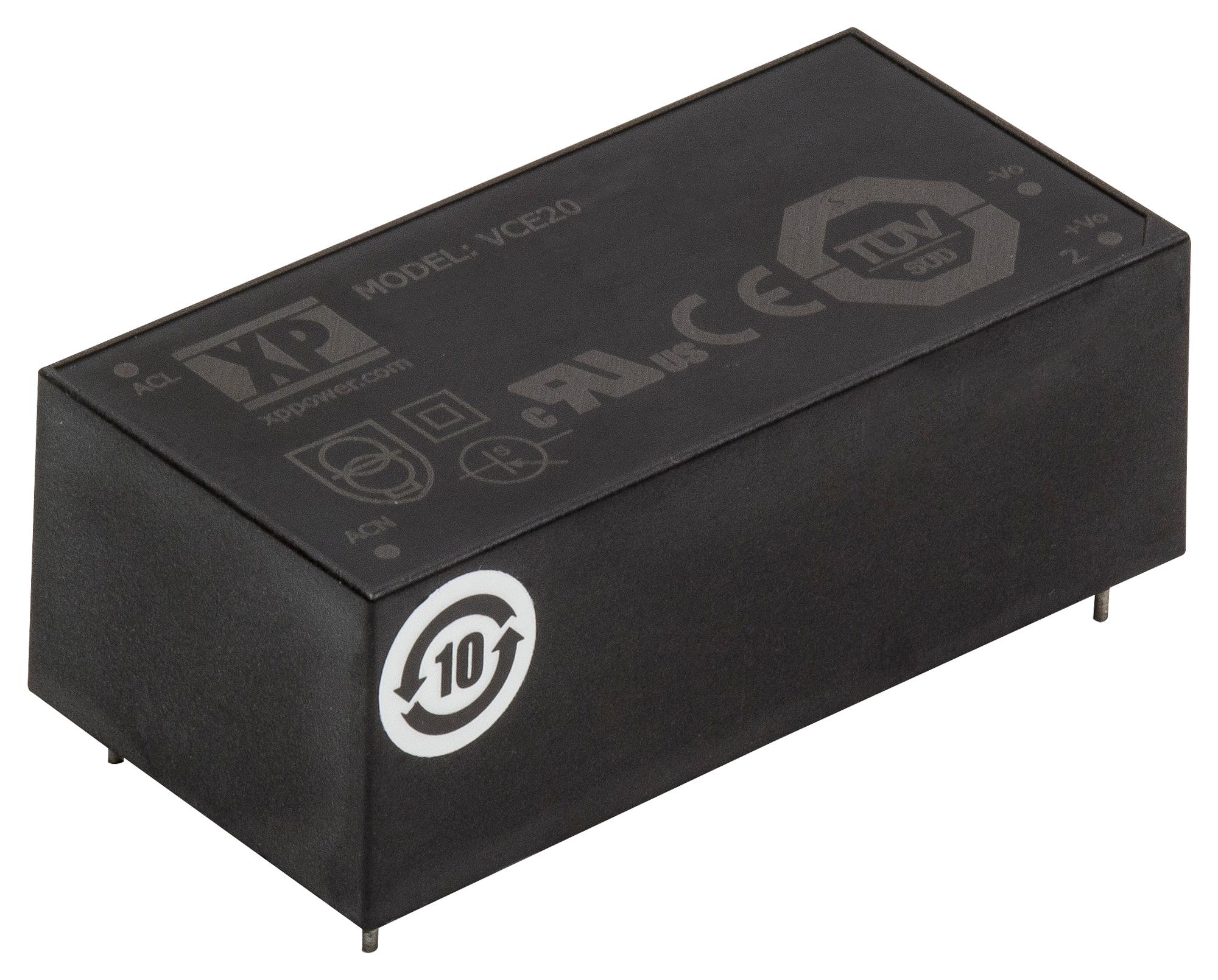

XP POWER VCE20US15 Power Supply Module
The VCE20 series comprises open frame and encapsulated AC-DC power supplies with a single output, suitable for low-cost ITE, industrial, and domestic applications. These power supplies feature two mechanical options: open frame and encapsulated PCB mount. They are approved according to worldwide safety standards, including ITE and household appliance certifications, and comply with Class B emissions for conducted and radiated noise. The series supports an input voltage range of 85 to 305 VAC and provides single outputs from 3.3V to 48V DC. They are designed for easy system integration and meet the EN55035 immunity standard. The products are Class II isolation and are available in both encapsulated and open frame configurations.
XP POWER VCE20US15 Power Supply Module Specifications:
- Input Voltage Range: 85 to 305 VAC
- Output Voltage Options: 3.3V, 5V, 9V, 12V, 15V, 24V, 48V
- Output Power: 20W
- Efficiency: 85%
- Isolation: Input to Output 3000 vac
- Operating Temperature: -25°C to +70°C
- Cooling: Convection-cooled
- Dimensions: Open Frame - 2.60 x 1.30 x 0.92 inches; Encapsulated - 2.50 x 1.20 x 0.86 inches
- Weight: Open Frame - 0.088 lbs; Encapsulated - 0.198 lbs
- Certifications: IEC62368-1, IEC60335-1, UL62368-1, EN62368-1
- EMC Standard: EN55035, EN61000-3-2, EN61000-3-3, EN55024
- Switching Frequency: 5 to 65 kHz
- Durability: MTBF 550 to 600 khours
- Protection: Overvoltage, overload, short circuit (hiccup mode)
Buy the Buy XP Power VCE20 Series Part Number VCE20US15 Online
Purchase the XP Power VCE20US15 power supply online today to benefit from dependable performance, easy installation, and certifications for safety and EMC standards. This 20W AC-DC power supply offers a wide input range of 85-305 VAC, high efficiency of 85%, and robust isolation, making it ideal for industrial and household projects. Whether you need open frame or encapsulated design, ordering online guarantees quick delivery and access to genuine parts that meet all necessary specifications and safety requirements, ensuring your system’s reliable operation.
Order your XP Power VCE20US15 today and ensure reliable power with versatile options for industrial and domestic applications.
Frequently Asked Questions
Where can I buy XP POWER VCE20US15?
You can click on the BUY or RFQ button to purchase VCE20US15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCE20US15?
You can download the VCE20US15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCE20US15?
XP POWER
