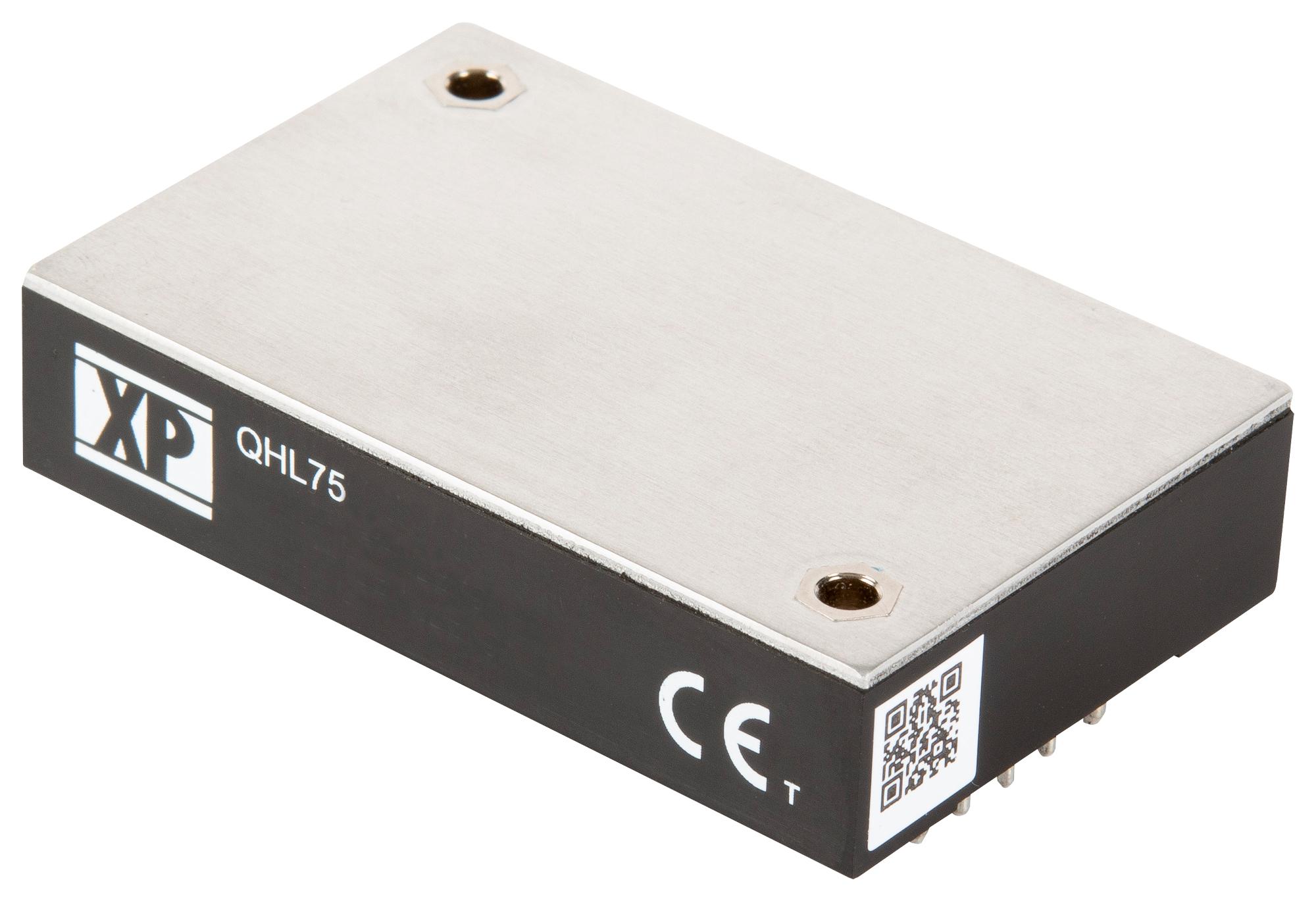

XP POWER QHL75300S15 DC-DC Converter
The QHL75 series provides a compact 75W DC-DC converter in an industry-standard quarter brick package. These modules are ideal for building distributed power architectures with applications from AC front ends, Power Factor Correction circuits, to battery systems. Featuring an integrated baseplate for conduction cooling, they offer flexibility in system design. Built with reinforced insulation, the series supports an industrial operating temperature range from -40°C to +105°C and includes protections against over-current, over-voltage, and overheating. Key features include an input voltage range of 180-450V DC, output voltage trim of ±20% (with -20%/+10% for 5V output), 3kVAC reinforced isolation, short circuit protection, remote on/off capability, and a 3-year warranty.
XP POWER QHL75300S15 DC-DC Converter Specifications:
- Input Voltage Range: 180-450VDC
- Output Power: 75W
- Output Voltage: 5V, 12V, 15V, 24V, 48V (regulated)
- Output Voltage Trim: ±20% (5V limited to +10%)
- Isolation: 3kVAC reinforced
- Efficiency: Up to 90%
- Operating Temperature Range: -40°C to +105°C
- Dimension: 2.28" x 1.45" x 0.50" (57.9 x 36.8 x 12.7 mm)
- Protection: Over-current, over-voltage, over-temperature, short circuit
- Remote On/Off: Yes (positive or negative logic options)
- Baseplate cooled with conduction cooling
- Certification Standards: UL, EN45545-2
- Weight: Approximately 65g (0.143 lbs)
Buy the XP Power QHL75 Series – Reliable DC-DC Converter for Industrial Applications
Purchase the XP Power QHL75 series DC-DC converter online today for high efficiency and robust performance in industrial environments. Featuring a compact design, wide input voltage range, reinforced insulation, and conduction cooling via integrated baseplate, this 75W module supports applications from PFC circuits to battery systems. With protections against over-current, over-voltage, and temperature extremes, and a typical efficiency of up to 90%, it ensures safe, reliable operation across an industrial operating temperature from -40°C to +105°C. Get yours now for dependable power delivery and system flexibility.
Order your XP Power QHL75 series 75W baseplate-cooled DC-DC converter today and ensure your industrial power systems operate reliably and efficiently.
Frequently Asked Questions
Where can I buy XP POWER QHL75300S15?
You can click on the BUY or RFQ button to purchase QHL75300S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part QHL75300S15?
You can download the QHL75300S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of QHL75300S15?
XP POWER
