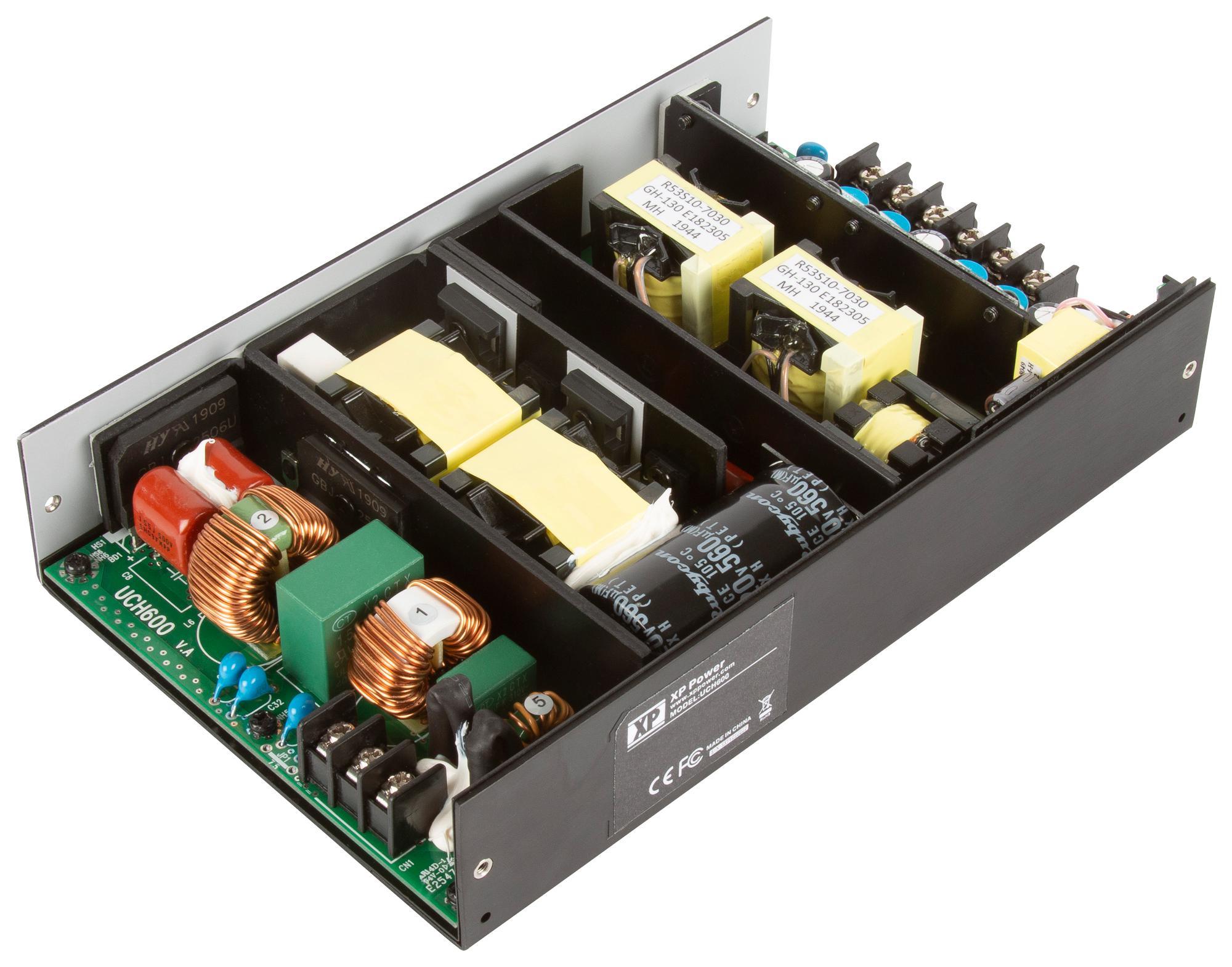

XP POWER UCH600PS12 Medical Power Supply
This convection-cooled, single output AC/DC power supply is ideal for medical and ITE applications. Compact at 5.0 inches by 8.0 inches, it delivers up to 600 W with a high density of 9.5 W/in³. Features include a 12 V/0.6 A fan output for cooling, a 5 V/1 A standby, safety approvals for medical and industrial standards, low leakage currents, and operation from -20°C to +70°C. Its certifications for safety and emissions compliance ensure reliability in diverse environments, making it highly versatile for medical devices, automation, and control systems.
XP POWER UCH600PS12 Medical Power Supply Specifications:
- Output Power: 600 W
- Input Voltage: 90-264 VAC
- Input Frequency: 50/60 Hz
- Efficiency: Up to 95%
- Dimensions: 5.0 x 8.0 x 1.57 inches (127 x 203.2 x 40 mm)
- Cooling: Convection cooled
- Temperature Range: -20°C to +70°C
- Power Density: 9.5 W/in³
- Standby Output: 5 V / 1 A
- Fan Output: 12 V / 0.6 A
- Certifications: UL, IEC60601-1, EN55011/22 Class B
- Safety Standards: Medical and ITE approvals
- Leakage Currents: Low leakage currents compliant with medical standards
- Connections: Barrier terminal block, remote On/Off control
Buy the XP Power UCH600PS12 – Reliable Medical and Industrial Power Supply for Medical Applications
Purchase the XP Power UCH600PS12 power supply online now and ensure your medical or industrial devices operate reliably with high efficiency and safety. With Certifications for medical and industrial standards, low leakage currents, and a compact footprint, this power supply supports environments from -20°C to +70°C. Its high power density of 9.5 W/in³, fan cooling option, and wide input voltage range provide versatile, safe, and efficient power for demanding applications. Get yours today for a trusted, professional power solution.
Order your XP Power UCH600PS12 high-performance power supply today and equip your medical or industrial projects with dependable, compact power solutions.
Frequently Asked Questions
Where can I buy XP POWER UCH600PS12?
You can click on the BUY or RFQ button to purchase UCH600PS12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part UCH600PS12?
You can download the UCH600PS12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of UCH600PS12?
XP POWER
