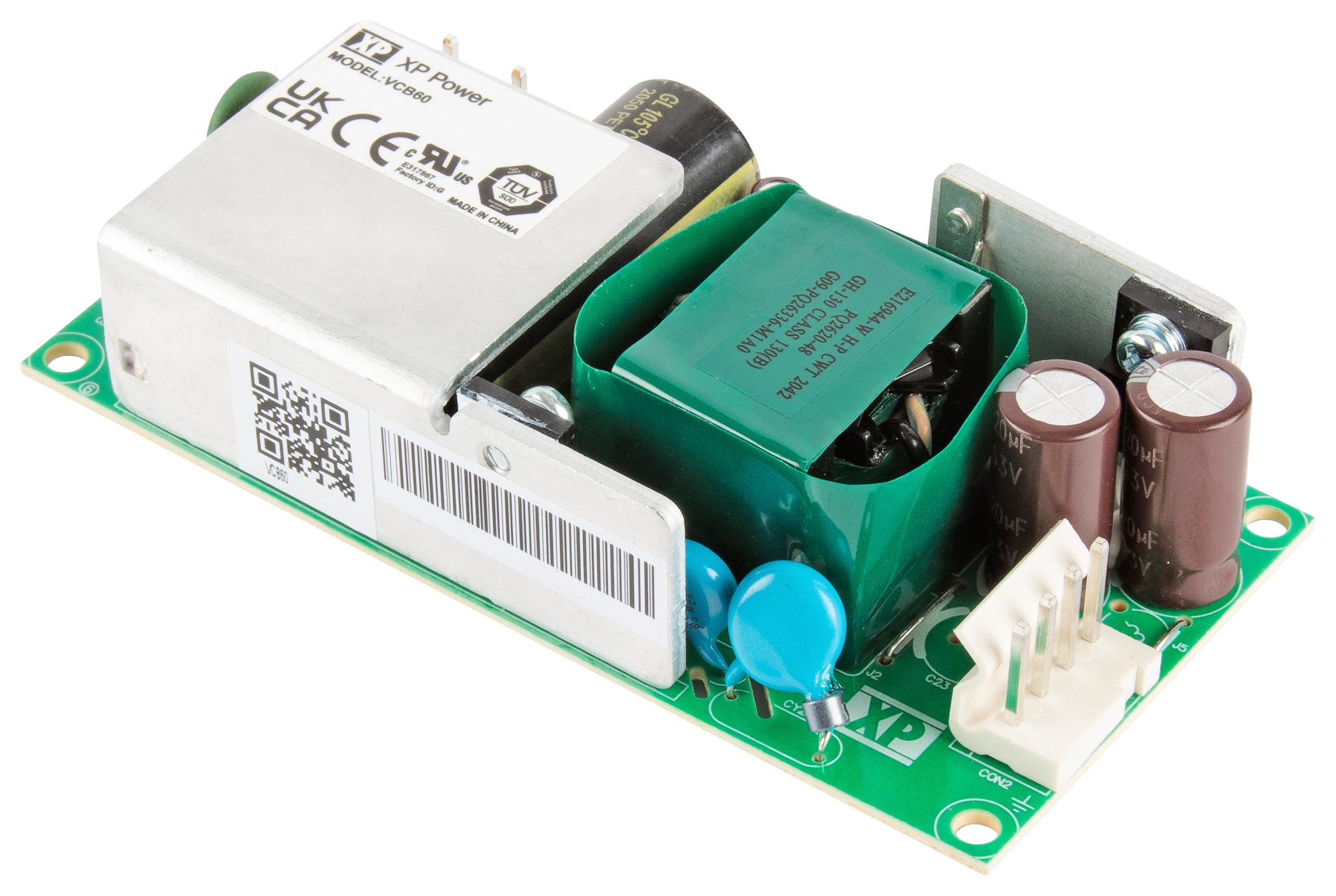

XP POWER VCB60US24 Power Supply
The VCB60 series is a line of open frame AC-DC power supplies with a 60W output, designed for low-cost applications in information technology equipment, industrial electronics, domestic use, IoT devices, and robotics. These units feature a compact 4” x 2” footprint with a low profile of 1.01 inches and are convection cooled for reliable operation. They are compliant with various safety and EMC standards, including IEC 60950, IEC 62368, IEC 60355, EN55035, EN55024, EN61000-4, EN55032, EN55014, and EN61000-3, ensuring they meet noise and immunity requirements without external filters. The power supplies include protections against short circuits, overvoltage, and overload, operate efficiently at 90%, and can handle full load at temperatures up to 50°C. They accept an input voltage range of 90-305VAC, including approval for overvoltage category III, simplifying installation in building wiring systems. Their switching frequency ranges from 5kHz to 75kHz, adapting with load for optimal performance.
XP POWER VCB60US24 Power Supply Specifications:
- Power Output: 60W
- Input Voltage Range: 90-305VAC
- Output Voltage Options: 5V, 12V, 15V, 19V, 24V, 30V, 48V, 54V
- Output Current: 8A, 5A, 4A, 3.164A, 2.508A, 2A, 1.25A, 1A respectively
- Efficiency: Up to 90%
- Dimensions: 4" x 2" x 1.01" (101.6 x 50.8 x 25.6mm)
- Operating Temperature Range: -10°C to +60°C
- Protections: Short circuit, overvoltage, overload
- Safety & EMC Standards: IEC 60950, IEC 62368, IEC 60355, EN55035, EN55024, EN61000-4
- Switching Frequency Range: 5kHz to 75kHz
- Isolation: 3000 VAC
Buy the Buy XP Power VCB60 Part Number VCB60US24 Online
Purchase the XP Power VCB60 Series power supply online today to benefit from a compact, reliable, and cost-effective solution for industrial, IoT, or domestic applications. With universal input voltage of 90-305VAC and high efficiency up to 90%, it provides robust protection features including short circuit, overvoltage, and overload protections. Its compact size of 4” x 2” x 1.01”, along with compliance to international safety standards like IEC 60950 and IEC 62368, makes it ideal for seamless integration into a wide range of electronic systems and devices. The quick and easy online purchase ensures fast delivery to keep your projects on schedule.
Order your XP Power VCB60US24 low-cost, high-efficiency power supply today and ensure reliable power for your industrial, IoT, or household projects.
Frequently Asked Questions
Where can I buy XP POWER VCB60US24?
You can click on the BUY or RFQ button to purchase VCB60US24 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VCB60US24?
You can download the VCB60US24 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VCB60US24?
XP POWER
