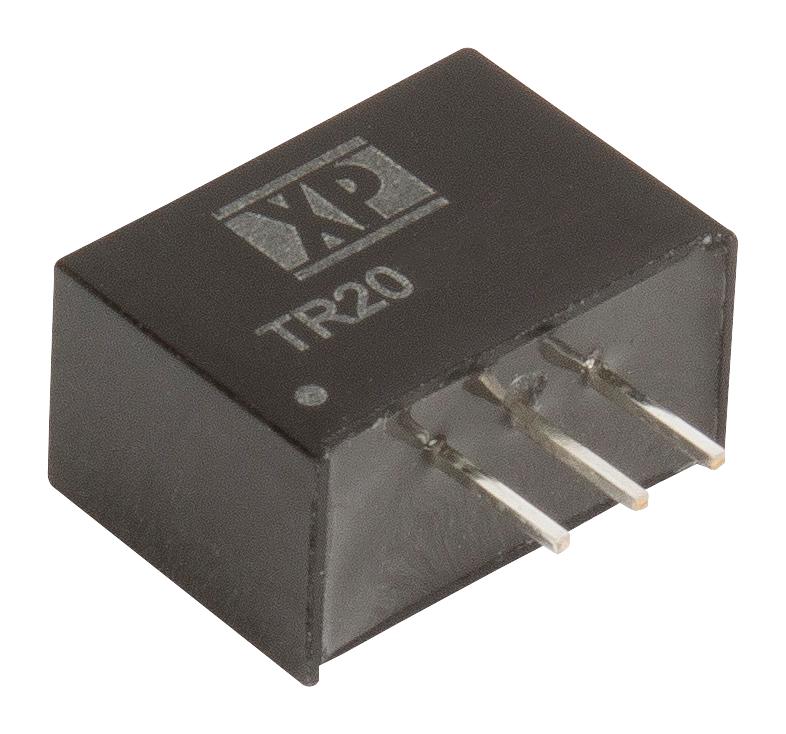

XP POWER TR2024S3V3 Switching Regulator
The TR20 is a compact, efficient switching regulator designed to operate from a wide input voltage range. It provides regulated single outputs from 1.2V up to 15V DC, with a maximum input voltage of 36V. The device features a SIP3 package, is non-isolated, and offers high efficiency up to 96%. It includes short circuit protection, minimal external components for compliance with Class B emissions standards, and consumes just 1mA during standby.
XP POWER TR2024S3V3 Switching Regulator Specifications:
- Input Voltage Range: 3V to 36V
- Output Voltage: 1.2V to 15V DC
- Maximum Input Voltage: 36V
- Output Current: 2A
- Efficiency: Up to 96%
- Package: SIP3
- Isolation: Non-isolated
- Standby Input Current: 1mA
- Operating Temperature: -40°C to +100°C
- Short Circuit Protection: Yes
- EMI Standards: Class B Conducted & Radiated Emissions
- MTBF: Greater than 2.6 million hours
- Warranty: 3 years
Buy the XP Power TR2024S3V3 – Reliable Switching Regulator for Industrial Applications
Purchase the XP Power TR2024S3V3 switching regulator online and enjoy a compact, high-efficiency solution for your power management needs. This non-isolated regulator operates from 3V to 36V input, providing a stable output from 1.2V to 15V DC with a maximum load current of 2A. It features up to 96% efficiency, short circuit protection, and a SIP3 package for easy integration. With a standby current of only 1mA and compliance with EMI standards, it’s ideal for industrial, communications, and automation applications. Get yours now for reliable, efficient power delivery.
Order your XP Power TR2024S3V3 series switching regulator today and ensure your projects benefit from high efficiency and dependable power regulation.
Frequently Asked Questions
Where can I buy XP POWER TR2024S3V3?
You can click on the BUY or RFQ button to purchase TR2024S3V3 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part TR2024S3V3?
You can download the TR2024S3V3 datasheet or visit the XP POWER website for support.
Who is the manufacturer of TR2024S3V3?
XP POWER
