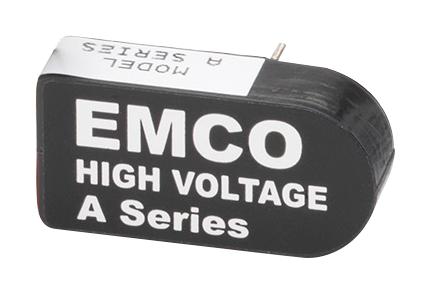

XP POWER A30P5 High Voltage Converter
The A Series high voltage converters are ultraminiature, capable of controllable output voltages from 100V to 6000V with low ripple, EMI/RFI noise, and input ripple current. Featuring a low profile of only 0.250 inches, they are ideal for space-constrained applications requiring minimal size and weight. These products incorporate a resonant quasi-sinewave oscillator, fully shielded transformer, and are encapsulated with UL94V-0 listed materials, providing excellent thermal and high voltage properties. Suitable for noise-sensitive equipment, they operate from 0-5, 12, or 24VDC, with optional extended temperature ranges and high reliability.
XP POWER A30P5 High Voltage Converter Specifications:
- Output Voltage Range: 100V to 6000V
- Output Power: 1W standard, 1.5W optional
- Input Voltage Ranges: 0-5V, 12V, 24VDC
- Polarity: Positive or Negative Output
- Size: 0.250 inches (6.35mm) height, occupies less than one tenth of a cubic inch
- Control: High impedance control pin for external modulation
- Isolation: ±500V bias on output return
- Leakage Current: <100 nA
- Coupling Capacitance: <250 pF
- Temperature Range: Operating -25°C to +75°C (standard), -55°C to +85°C (extended)
- Encapsulation: UL94V-0 compliant epoxy
- Efficiency: High, with low EMI/RFI noise
- Reliability: MTBF over 1,862,000 hours
- Circuit Technology: Resonant quasi-sinewave oscillator
Buy the EcoPower 30P5 – Reliable High Voltage Converter for Industrial Applications
Secure your EcoPower high voltage converter online today to experience exceptional reliability and performance for demanding industrial and scientific applications. Designed to deliver controllable voltages up to 6000V with minimal size and weight, this miniature converter is ideal for noise-sensitive equipment and space-constrained projects. Featuring low ripple, EMI/RFI noise reduction, and high thermal stability, it ensures dependable operation under a wide temperature range. Perfect for integrators requiring high voltage outputs in compact, reliable packages—order now and enhance your system's performance instantly.
Order your EcoPower Series30P5 high voltage converter today and give your projects the dependable quality they deserve, perfect for space-constrained and noise-sensitive environments.
Frequently Asked Questions
Where can I buy XP POWER A30P5?
You can click on the BUY or RFQ button to purchase A30P5 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part A30P5?
You can download the A30P5 datasheet or visit the XP POWER website for support.
Who is the manufacturer of A30P5?
XP POWER
