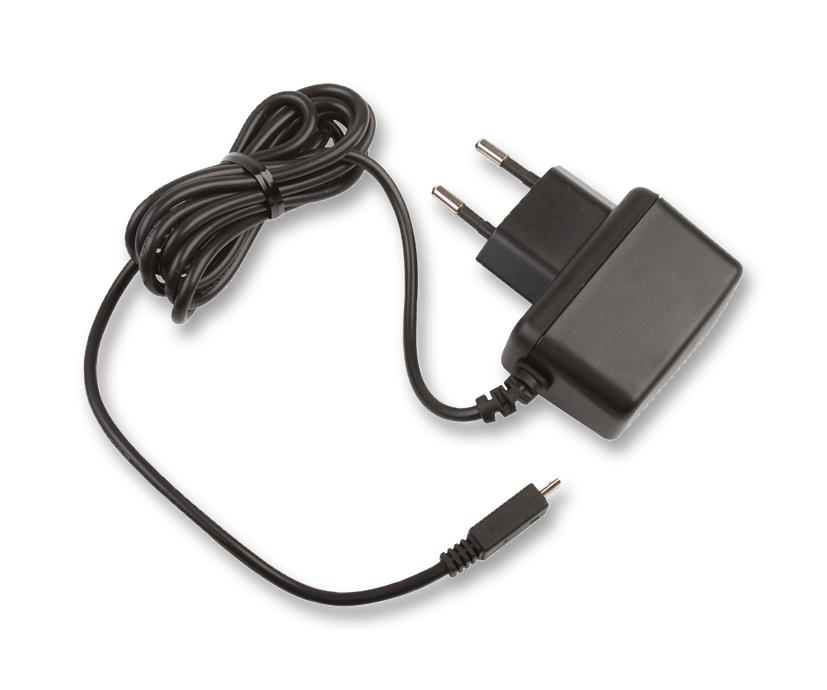

XP POWER VEL05US050EUUB Power Supply
The VELOS series are highly efficient 5-watt AC-DC power supplies with Energy Efficiency Level VI, UK, EU, US, and AU plug options, and multiple output voltage variants from 5V to 12V. Featuring universal input (90-264 VAC), low no-load power consumption, and class II construction, they supply reliable power for various electronic devices. Optional USB and DC jack connectors enhance versatility for cost-sensitive applications. Compact and lightweight, these power supplies meet industry standards for safety, efficiency, and electromagnetic compatibility, making them ideal for portable and embedded electronic equipment.
XP POWER VEL05US050EUUB Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 63 Hz
- Input Current: 0.18 A at 100 VAC
- Inrush Current: 60 A at 220 VAC, cold start at 25°C
- Output Voltage Range: 5.0V to 12.0V
- Output Current: 1000 mA at 5V, 830 mA at 60V, 550 mA at 9V, 420 mA at 12V
- Total Regulation: 5%
- Efficiency: 74-79%
- Power Factor: Class A
- Isolation: 3000 V AC input to output
- Switching Frequency: 70 kHz (variable)
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 5-95% RH non-condensing
- Dimensions: Varies by model, approximately 2.17 x 0.95 inches for US, UK, and EU versions
- Certifications: UL, TUV, CB, CE, RCM, EN 60950-1
Buy the XP Power Series VELOS 5 Watt Power Supplies: VEL05US050EUUB
Purchase the XP Power VELOS series 5-watt power supplies online for reliable, efficient power with universal input and multiple output options. Designed for cost-sensitive applications, these compact units comply with energy efficiency standards and feature low no-load consumption, making them perfect for portable electronics and embedded systems. With various models featuring USB and DC jack connectors, these power supplies ensure your devices stay powered reliably in various environments. Order now for industry-leading performance and peace of mind in your electronic projects.
Get XP Power VELOS 5 Watt Power Supply today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy XP POWER VEL05US050EUUB?
You can click on the BUY or RFQ button to purchase VEL05US050EUUB from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL05US050EUUB?
You can download the VEL05US050EUUB datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL05US050EUUB?
XP POWER
