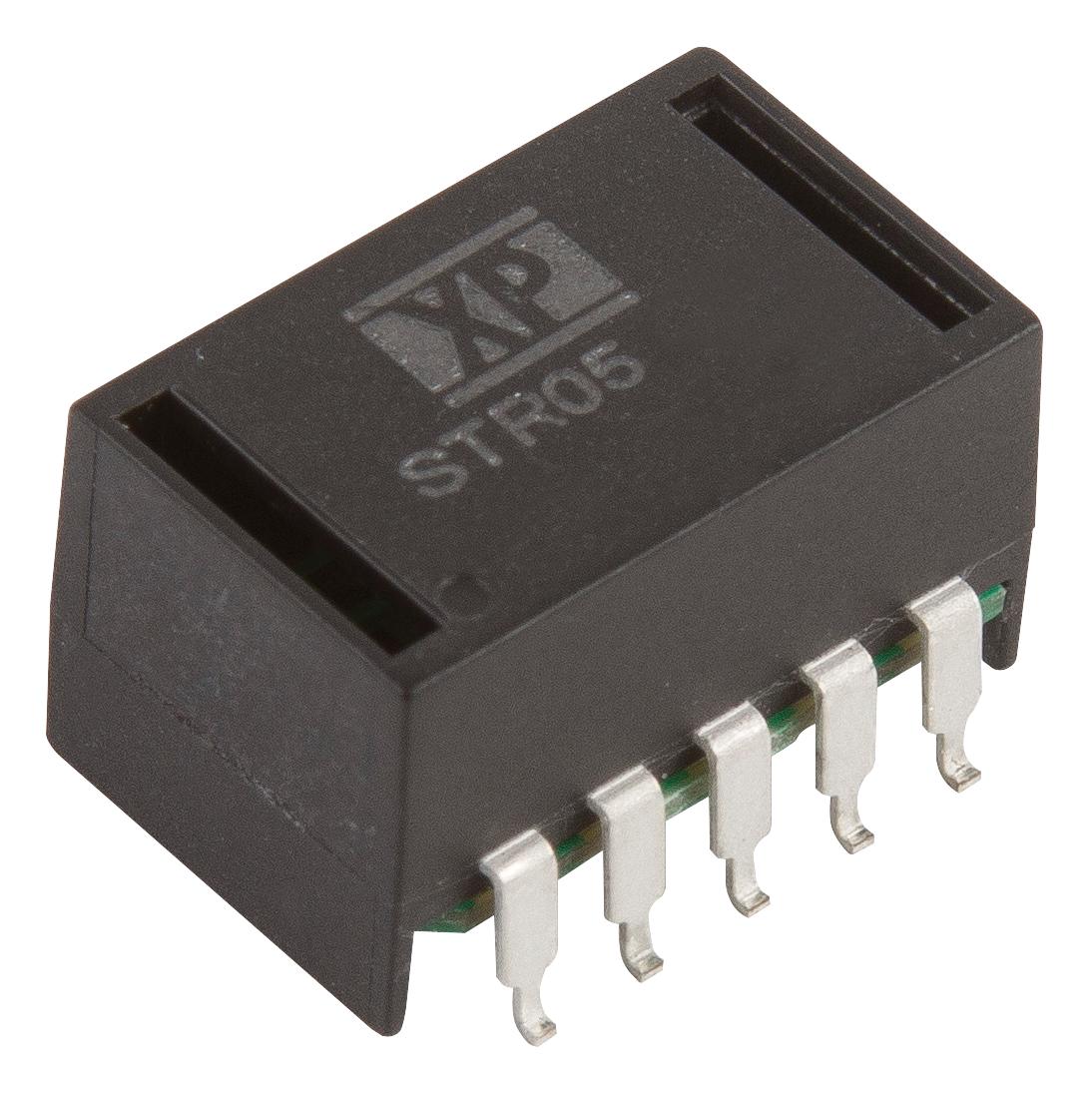

XP POWER STR05S15 Switching Regulator
The STR05S15 from XP Power is a regulated switching power regulator suitable for various applications. It offers a 0.5A output with a wide input voltage range of 18V to 32V and provides a fixed output voltage of 15V. The device features continuous short circuit protection with auto recovery, high efficiency (up to 97%), and low ripple and noise. It includes a remote on/off function and a trim range from 4.5V to 15.5V. The compact SMD package measures 15.3mm x 12.35mm x 9.24mm and weighs 1.7g. Operating within a temperature range of -40°C to 100°C, it is ideal for power management and industrial applications.
XP POWER STR05S15 Switching Regulator Specifications:
- Input Voltage Range: 18V to 32V
- Output Voltage: 15V
- Output Current: 0.5A
- Efficiency: up to 97%
- Ripple & Noise: Low
- Operating Temperature: -40°C to +100°C
- Package Dimensions: 15.3mm x 12.35mm x 9.24mm
- Weight: 1.7 grams
- Remote On/Off: Yes
- Thermal Shutdown: 760°C
- Switching Frequency: 280-380 KHz
- Isolation: None
- Maximum Capacitive Load: 220µF
- Environmental compliance: UL 94V-0, RoHS
- Operating humidity: Non-condensing
Buy the XP Power Series Switching Regulator: STR05S15
Order the XP Power STR05S15 switching regulator online today to enjoy high efficiency of up to 97%, a compact design, and reliable power regulation for industrial and power management applications. Its wide input voltage range of 18V to 32V, 0.5A output current, and features like remote on/off and low ripple noise make it a versatile choice. The device's small size, lightweight at only 1.7g, and robust operating temperature range from -40°C to 100°C ensure excellent performance in demanding environments. Easy to integrate in various systems for optimal power delivery.
Buy XP Power STR05S15 now and experience unmatched reliability and high efficiency suitable for industrial power management.
Frequently Asked Questions
Where can I buy XP POWER STR05S15?
You can click on the BUY or RFQ button to purchase STR05S15 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part STR05S15?
You can download the STR05S15 datasheet or visit the XP POWER website for support.
Who is the manufacturer of STR05S15?
XP POWER
