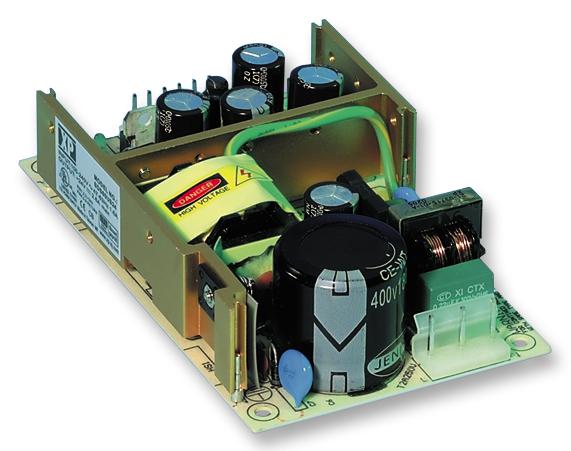

XP POWER SDS60UQ03 Industrial Power Supply
The SDS60UQ03 is a compact, high-efficiency power supply designed for 1U applications, featuring multiple output options from 3.3 V to 48 V. It offers a power density of 3.5 W/in³, with an industry-standard 3” x 5” package, open frame or covered versions, and an operating temperature range of 0°C to +70°C. It includes advanced protections such as overload, overvoltage, and short circuit protection, with a typical MTBF of 190,000 hours. Suitable for industrial automation and control systems requiring reliable power distribution.
XP POWER SDS60UQ03 Industrial Power Supply Specifications:
- Input Voltage: 90-264 VAC, 120-370 VDC
- Efficiency: 80% typical at 230 VAC full load
- Input Frequency: 47-63 Hz
- Isolation: 3000 VAC input to output, 1500 VAC input to ground
- Input Current: 1.6 A max at 115 VAC, 1.0 A max at 230 VAC
- Inrush Current: <15 A at 115 VAC cold start
- Switching Frequency: 60 kHz typical
- Power Density: 3.5 W/in³
- Output Voltage Range: 3.3 V to 48 V, multiple outputs with some models featuring trim capability
- Output Power: Up to approximately 60 W, with various voltage/current combinations
- Output Operating Temperature: 0°C to +70°C (derating from 100%)
- Cooling: Convection-cooled
- Operating Humidity: 5-95% RH, non-condensing
- Storage Temperature: -40°C to +85°C
- Start-Up Delay: 2 seconds typical
- Hold-Up Time: 12 ms min at 110 VAC, full load
- Ripple & Noise: 1% pk-pk within 20 MHz bandwidth
- EMC & Safety: EN55022 level B, UL60950-1, CSA60950-1, international safety approvals
- Certifications: UL Listed, CE compliant, EN61000-3-2, EN61000-4-2/3/4/6/4-8/4-11
Buy the Buy Industry Power Supply Part Number SDS60UQ03 Online
Purchase the SDS60UQ03 power supply online today and secure a reliable, efficient power source for your industrial automation and control projects. This compact, high-performance unit offers multiple outputs, excellent efficiency, and advanced protections including overload, overvoltage, and short circuit safety features. Designed for 1U rack applications, it features a universal input range of 90-264 VAC, operating temperatures from 0°C to +70°C, and a typical MTBF of 190,000 hours. Perfect for demanding industrial environments requiring consistent power delivery.
Order your SDS60UQ03 power supply today and ensure your industrial control systems operate reliably with this compact, high-efficiency solution.
Frequently Asked Questions
Where can I buy XP POWER SDS60UQ03?
You can click on the BUY or RFQ button to purchase SDS60UQ03 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part SDS60UQ03?
You can download the SDS60UQ03 datasheet or visit the XP POWER website for support.
Who is the manufacturer of SDS60UQ03?
XP POWER
