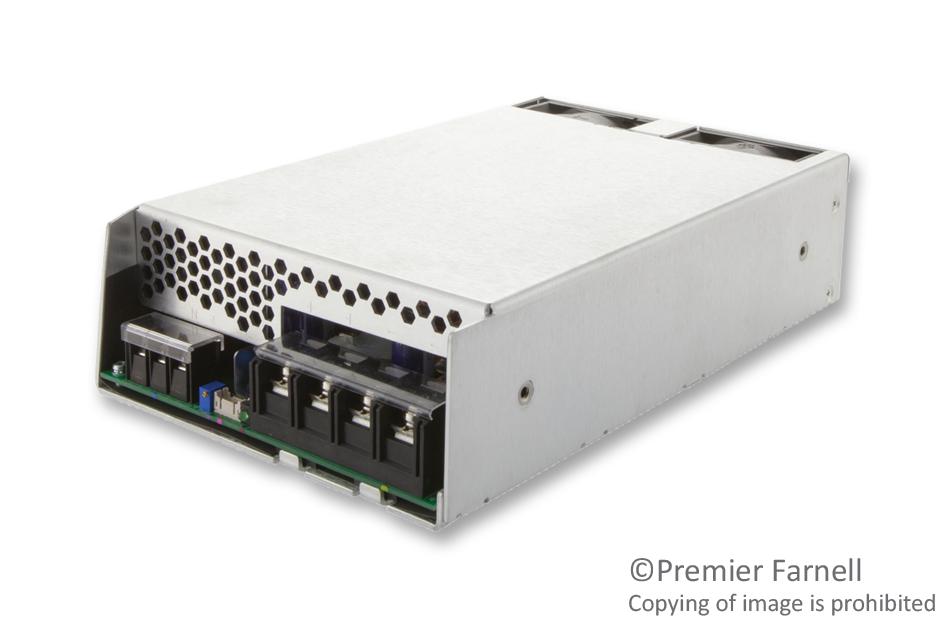

XP POWER SHP1000PS48 High Power Industrial Power Supply
The SHP1000 power supply delivers up to 1200 W of reliable output power in a rugged, industrial-grade enclosure equipped with load-dependent variable speed fans for noise reduction. It operates from -40°C to +70°C, with full operation at -20°C to 50°C, and half power at +70°C. Features include multiple outputs from 12-48 VDC, a 5 V standby supply, remote sensing, on/off control, current sharing, and integrated EMC and safety approvals. Its compact size and protection features make it ideal for high-power industrial applications requiring durability and efficiency.
XP POWER SHP1000PS48 High Power Industrial Power Supply Specifications:
- Output Power: Up to 1200 W
- Main Output Voltage: 12-48 VDC
- Standby Supply Voltage: 5 V/0.2 A
- Operation Temperature: -40°C to +70°C (full power at -20°C to 50°C, 50% power at +70°C)
- Cooling: Load-dependent variable speed fan
- Dimensions: 9.5” (241 mm) x 5.9” (150 mm) x 2.4” (61 mm)
- Protection: Overtemperature shutdown, short circuit protection with auto hiccup mode
- Input Voltage: 115/230 VAC, input derating below 90 VAC
- Input Frequency: 47-63 Hz
- Efficiency: Typically over 90%
- Isolation: Input to Output, Input to Ground, Output to Ground
- Safety Approvals: IEC60950 family, UL, TUV, CSA
- EMC Compliance: Conducted and radiated emissions to EN55022 Class B/A, immunity to EN61000-4-11
- Mechanical Features: Rugged enclosure, screw terminals, multiple mounting options
- Parallel Operation: Supports current sharing via built-in control
- Certifications: UL, TUV, CSA, CE
- Failure Rate: MTBF approximately 275,000 hours
Buy the Power Supply 1200W – Reliable Industrial Power for High Power Applications
Order the high-capacity SHP1000 power supply today and ensure your industrial systems run smoothly with reliable 1200 W output. Its rugged design, load-dependent variable speed fans, and multiple safety features guarantee long-lasting performance in demanding environments. Perfect for high-power applications requiring stable power delivery, remote control, and efficient operation across a wide temperature range. Purchase online now and upgrade your industrial power infrastructure with confidence in durability and efficiency.
Buy the SHP1000 power supply now and experience unmatched reliability, efficiency, and durability for your industrial power needs.
