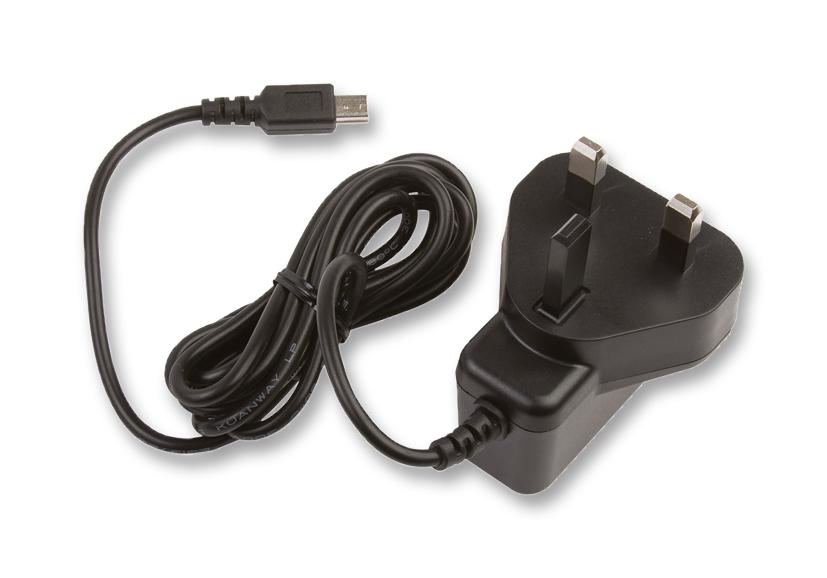

XP POWER VEL05US050UKMB Power Supply Module
The VELOS series of compact, energy-efficient AC-DC power supplies deliver reliable 5W output with universal input and multiple output voltage options from 5V to 12V. Designed to meet Level VI standards, they feature low no-load power consumption, high active efficiency, and a wide range of connector options including USB and DC jack variants. These adaptable power modules are suitable for cost-sensitive industrial applications, offering full regulation, low ripple, and reliable short-circuit protection, with internal fuse protection for enhanced safety.
XP POWER VEL05US050UKMB Power Supply Module Specifications:
- Input Voltage: 90 VAC to 115 VAC (typical), 100-240 VAC optional
- Input Frequency: 50/60 Hz
- Input Current: <0.4 W no load, 2A cold start at 25°C
- Output Power: 5W
- Output Voltage Options: 5.0V, 6.0V, 9.0V, 12.0V
- Output Currents: 1000 mA for 5V, 830 mA for 6V, 550 mA for 9V, 420 mA for 12V
- Total Regulation: ±5%
- Efficiency: 74-77%
- Ripple & Noise: 200 mV pk-pk at 20 MHz bandwidth
- Overcurrent & Short Circuit Protection: Continuous, automatic recovery
- Safety & Compliance: UL/cUL, CE, Level VI energy efficiency
- Temperature Range: Operating from 0°C to 50°C, derates at higher temps
- Cooling: Natural convection
- Dimensions: Approx. 54mm x 19mm x 17mm
- Weight: approximately 20g
Buy the XP Power VEL05US050 UK – Reliable Power Supply for Industrial Applications
Purchase the XP Power VELOS series power supply online now and enjoy superior reliability and energy efficiency. With universal input and multiple output voltages, this compact power module is ideal for industrial and cost-sensitive applications. Features include low no-load power consumption, full regulation, and robust short-circuit protection, ensuring your equipment operates safely and reliably. Invest in proven quality—order today and power your projects with confidence and efficiency.
Order your XP Power VELOS series 5W power supply today and ensure your industrial projects operate with dependable, energy-efficient power sources.
