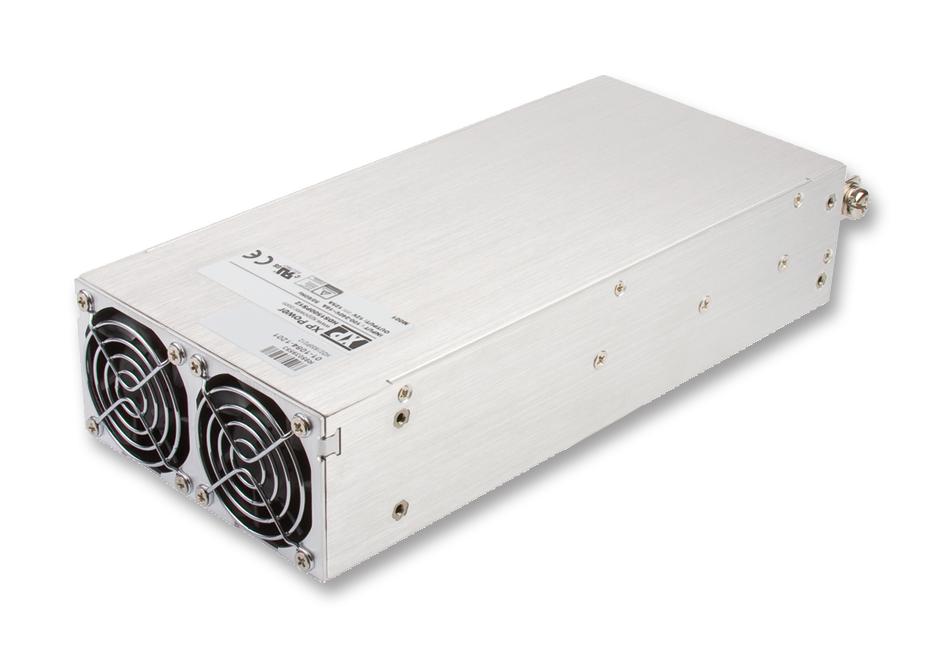

XP POWER HDS1500PS48 High Power Industrial Power Supply
The HDS1500 series comprises high-efficiency, 1500-watt AC-DC power supplies designed for industrial and laboratory applications. These power supplies feature up to 92% efficiency, high power density, programmable output voltage (0-105%) and current (0-105%), active current sharing, remote control options, standby output, and various signals for monitoring and control. The units are compact, measuring approximately 12.32” x 2.5” x 5.0”, and include protections like overvoltage, overtemperature, and short circuit with auto recovery. Suitable for demanding power conversion needs with reliable operation and easy integration.
XP POWER HDS1500PS48 High Power Industrial Power Supply Specifications:
- Power Output: 1500 W
- Output Voltage: 12 VDC, 15 VDC, 24 VDC, 30 VDC, 36 VDC, 48 VDC, 60 VDC (models vary)
- Output Current: Up to 125 A at 12 V, 100 A at 15 V, 62.54 A at 24 V, 50 A at 30 V, 41 A at 36 V, 31.3 A at 48 V, 25.04 A at 60 V
- Efficiency: Up to 93%
- Input Voltage: 90-264 VAC
- Dimensions: 12.32” x 2.5” x 5.0” (294.5 x 63.5 x 127 mm)
- Protection: Overvoltage, overtemperature, overload, short circuit, auto recovery
- Switching Frequency: 70-200 kHz PWM
- Power Density: High, suitable for constrained spaces
- Operating Temperature: -25°C to 60°C
- Remote Sense: Yes, compensates for 0.5 V voltage drop
- Standby Output: 5V at 0.5 A, user selectable
- Isolation: Input to Output 3000 VAC
- Cooling: Internal fan, speed varies with load
- MTBF: 115,000 hours
- Certifications: UL, EN60950-1
Buy the XP Power Series HDS1500 AC-DC Power Supply: HDS1500PS48
Secure your high-performance industrial power solution with the XP Power HDS1500PS48. This 1500-watt power supply offers high efficiency up to 93%, programmable voltage and current, and comprehensive protections like overvoltage and overtemperature. Its compact design measures only 12.32 inches long, making it ideal for space-constrained environments. With remote sensing, standby outputs, and active current sharing, this unit ensures reliable, stable power for various industrial and laboratory applications. Buy online now for unmatched reliability and advanced control features.
Get XP Power HDS1500PS48 today—built for precision and long-lasting durability in demanding power applications.
