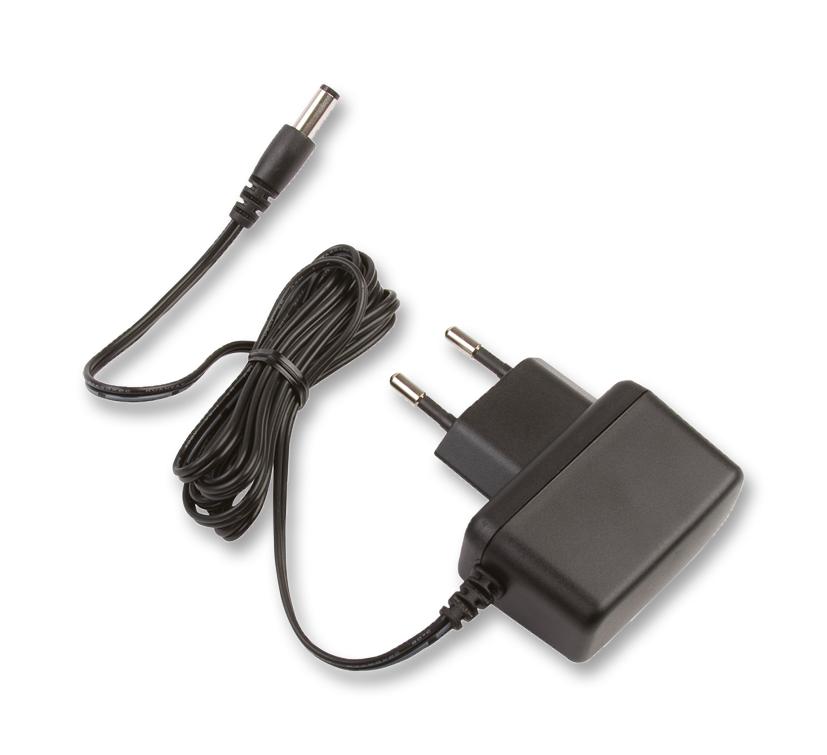

XP POWER VEL12US050EUJA AC-DC Power Supply
The VEL12 series consists of energy-efficient 12-watt AC-DC power supplies designed for low-cost, high-reliability applications. These power units comply with Level VI energy efficiency standards, offering high active mode efficiency and extremely low no-load power consumption. Available in various models with output voltages from 5.0 V to 12.0 V, they feature universal input, fixed mains connectors, and class II construction for safety. Compact and lightweight, these supplies are ideal for a wide range of industrial, electronic, and consumer applications, providing reliable power with minimal environmental impact.
XP POWER VEL12US050EUJA AC-DC Power Supply Specifications:
- Input Voltage: 90-264 VAC
- Input Frequency: 50-63 Hz
- Input Current: 0.3 A at 115 VAC
- Power Factor: Class A
- Efficiency: 79-83% at various loads
- Isolation Voltage: 3000 VAC input to output
- Switching Frequency: 24-70 kHz (Variable)
- Operating Temperature: 0°C to +60°C, derates at higher temps
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 3-95% RH, non-condensing
- Size (US): 2.99 x 1.16 x 1.73 inches (76.0 x 29.5 x 43.87 mm)
- Size (EU): 2.99 x 1.16 x 1.55 inches (76.0 x 29.5 x 39.37 mm)
- Weight: Approx. 1 lb (0.45 kg)
- Certifications: UL, TUV, CE, CB, RoHS
- Short Circuit Protection: Continuous, auto-recovery
- Efficiency Level: VI
- Included output voltages: 5.0 V, 9.0 V, 12.0 V with respective currents
- Output Regulation: 5%, load and line regulation
- Transient Response: within 4% for 60% load step
- Class II construction for safety
Buy the Buy XP Power VEL12 Series AC-DC Power Supply Part Number VEL12US050EUJA Online
Enhance your projects with the XP Power VEL12 series AC-DC power supplies. These compact, energy-efficient units provide reliable power from 5V to 12V, ideal for industrial, consumer, and electronic applications. Featuring universal input, low stand-by power, and compliance with Level VI standards, they deliver high efficiency and dependable operation. Easy to install, these power supplies are certified UL, TUV, and CE, ensuring safety and compliance. Purchase online now to ensure you get high-quality, cost-effective power solutions with fast delivery and excellent support.
Order your XP Power VEL12US050EUJA power supply today and ensure reliable, energy-efficient power for your electronic projects and industrial equipment.
Frequently Asked Questions
Where can I buy XP POWER VEL12US050EUJA?
You can click on the BUY or RFQ button to purchase VEL12US050EUJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL12US050EUJA?
You can download the VEL12US050EUJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL12US050EUJA?
XP POWER
