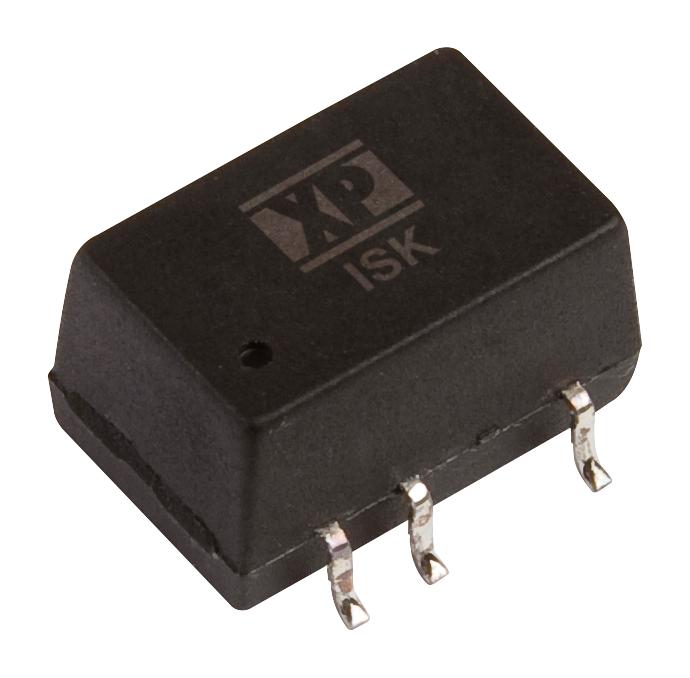

XP POWER ISK2405A DC-DC Converter
The ISK series is a 0.25W surface mount DC-DC converter with a single output, designed for reliable industrial and signal processing applications. It supports nominal input voltages of 5V, 12V, and 24V, providing stable output voltages with high isolation of 1500VDC for safety and noise reduction. The device features an industry-standard SMD package, operating within a temperature range of -40°C to 105°C, ensuring durability in harsh environments. Ideal for compact, high-reliability power conversion in industrial automation, instrumentation, and communication systems.
XP POWER ISK2405A DC-DC Converter Specifications:
- Power: 0.25 Watt
- Input Voltage Range: 5V (4.50-5.50V), 12V (10.8-13.2V), 24V (21.6-26.4V)
- Output Voltage: 5V, 12V, 24V (see model ratings)
- Output Current: Up to 0.0125A (12.5mA) at full load
- Isolation Voltage: 1500 VDC (optionally up to 3000 VDC with suffix -H)
- Operating Temperature: -40°C to +105°C
- Mechanical Dimensions: 0.500 x 0.44 x 0.285 inches (12.7 x 11.2 x 7.25 mm)
- Pin Diameter: 0.02 inches (+0.002), pitch tolerance 0.014 inches
- Efficiency: Typically aligned with models, details specified in datasheet
- Certifications: Industry-standard pinout, meets general safety standards
- Cooling: Natural convection
- Maximum Operating Case Temperature: +115°C
- Humidity: Up to 95% RH non-condensing
Buy the XP Power ISK2405A – Reliable DC-DC Converter for Industrial Applications
Enhance your industrial power systems with the XP Power DC-DC Converter from the ISK series. This compact and reliable 0.25W device features industry-standard SMD packaging, high voltage isolation of 1500VDC, and operates efficiently over a wide temperature range of -40°C to 105°C. Ideal for signal processing, automation, and instrumentation, it ensures stable power delivery in demanding environments. Purchase online today and enjoy quick delivery, secure checkout, and superior performance for your industrial projects.
Buy XP Power ISK2405A now and experience unmatched reliability and performance in power conversion for industrial environments.
Frequently Asked Questions
Where can I buy XP POWER ISK2405A?
You can click on the BUY or RFQ button to purchase ISK2405A from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ISK2405A?
You can download the ISK2405A datasheet or visit the XP POWER website for support.
Who is the manufacturer of ISK2405A?
XP POWER
