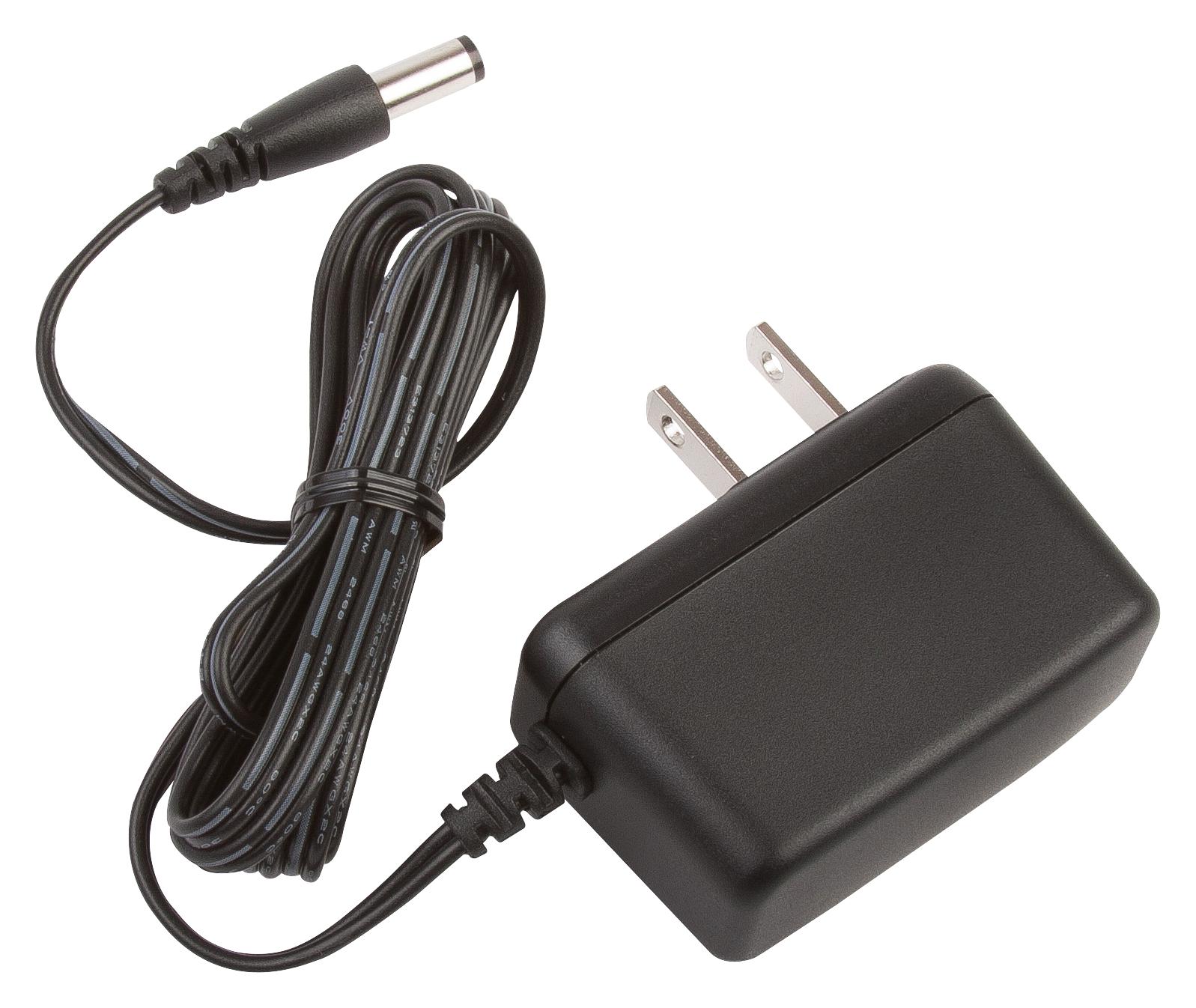

XP POWER VEL12US090USJA Power Adapter
The VEL12 series wall plug adapters meet the latest Energy Efficiency Level VI standards, offering high active mode efficiency and extremely low no-load power consumption. Equipped with a standard jack plug connector, these adapters are suitable for a wide range of cost-sensitive applications while delivering industry-leading performance. Key features include European CoC Tier 2 compliance, fixed mains connectors, universal input voltage, and Class II construction. They provide output voltages ranging from 5V to 12V, making them ideal for power management applications.
XP POWER VEL12US090USJA Power Adapter Specifications:
- Input Voltage: 90-264 VAC, 50/60 Hz
- Output Voltages: 5.0 V, 9.0 V, 12.0 V
- Output Power: 12 Watt
- Efficiency: 79-83% at 25%, 50%, 75%, and 100% load
- Energy Efficiency Level: VI
- Total Regulation: 10%
- Ripple & Noise: Not specified
- Power Factor: Approx. 0.95
- Switching Frequency: 24-70 kHz
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Dimensions (varies by model): approximately 2.99 x 1.16 x 1.73 inches (76 x 29.5 x 44 mm)
- Weight: Approx. 85g
- Protection: Short circuit, overload, and overvoltage protection
- Certifications: UL, EN55032, EN61000-3-2, EN61000-4-2, IEC60950-1
- Safety Class: Class II
- Connector: 5.5 x 2.1 mm DC jack
- Cable: 1500 mm length, 20-22 AWG wire gauge
- Compliance: European CoC Tier 2, RoHS
Buy the XP Power Series Power Adapter: VEL12US090USJA
Shop online now for the XP Power Series Power Adapter VEL12US090USJA and benefit from high efficiency, low power consumption, and reliable performance. These adapters meet the latest energy standards and are perfect for various applications, including consumer electronics and industrial equipment. Featuring a compact design and a standard DC jack connector, they are easy to install and suitable for extensive use. Secure your power solutions today by purchasing directly online and enjoy fast, hassle-free delivery with guaranteed quality.
Order your XP Power Series Power Adapter VEL12US090USJA today and ensure reliable, efficient power for all your cost-sensitive applications.
Frequently Asked Questions
Where can I buy XP POWER VEL12US090USJA?
You can click on the BUY or RFQ button to purchase VEL12US090USJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL12US090USJA?
You can download the VEL12US090USJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL12US090USJA?
XP POWER
