XP POWER DTJ1524S12D DC-DC Power Converter
The DTJ15 Toya DC-DC converter is a 15-watt, chassis-mounted power supply designed for industrial and commercial applications. It features regulated single and dual outputs from 3.3V to 30V DC, with a wide input range of 4:1. Built with lightweight materials, it includes short circuit, reverse polarity protection, and soft start. Operating from -40°C to +100°C, it offers UL62368-1 safety approval, 3kV isolation, remote On/Off, voltage trim, and optional heatsinks. Suitable for demanding environments, the device supports various mounting options including DIN rail, and provides high efficiency and reliability.
XP POWER DTJ1524S12D DC-DC Power Converter Specifications:
- Input Voltage Range: 9-36 VDC (nominal 12V, 24V, 48V), 8-75 VDC for higher input voltages
- Output Voltage: 3.3V to 30 VDC, adjustable via external trimming
- Output Power: 15 Watts
- Input Current: Based on models, typical 2 mA at nominal input when outputs are off
- Isolation: 3000 VDC for 60 seconds
- Efficiency: Up to 89%
- Operating Temperature: -40°C to +100°C, derating applies
- Dimensions: 3.00 x 1.24 x 0.77 inches (76.2 x 31.4 x 19.4 mm)
- Protection: Short circuit, reverse polarity, overload (170%), overvoltage (140%), automatic restart
- Safety: UL60950-1/62368-1, CE, UKCA approval
- Mechanical: Non-conductive black plastic case, optional heatsink (HK, HKD) for enhanced thermal management
- Mounting options: chassis mount, DIN rail with clip, optional heatsink
- Electromagnetic Compatibility: EN55032 Class A, EN55035 immunity compliance
- Switching Frequency: 2.7 to 3.8 MHz
- Maximum Altitude: 5000 meters
- Humidity: Up to 95%, non-condensing

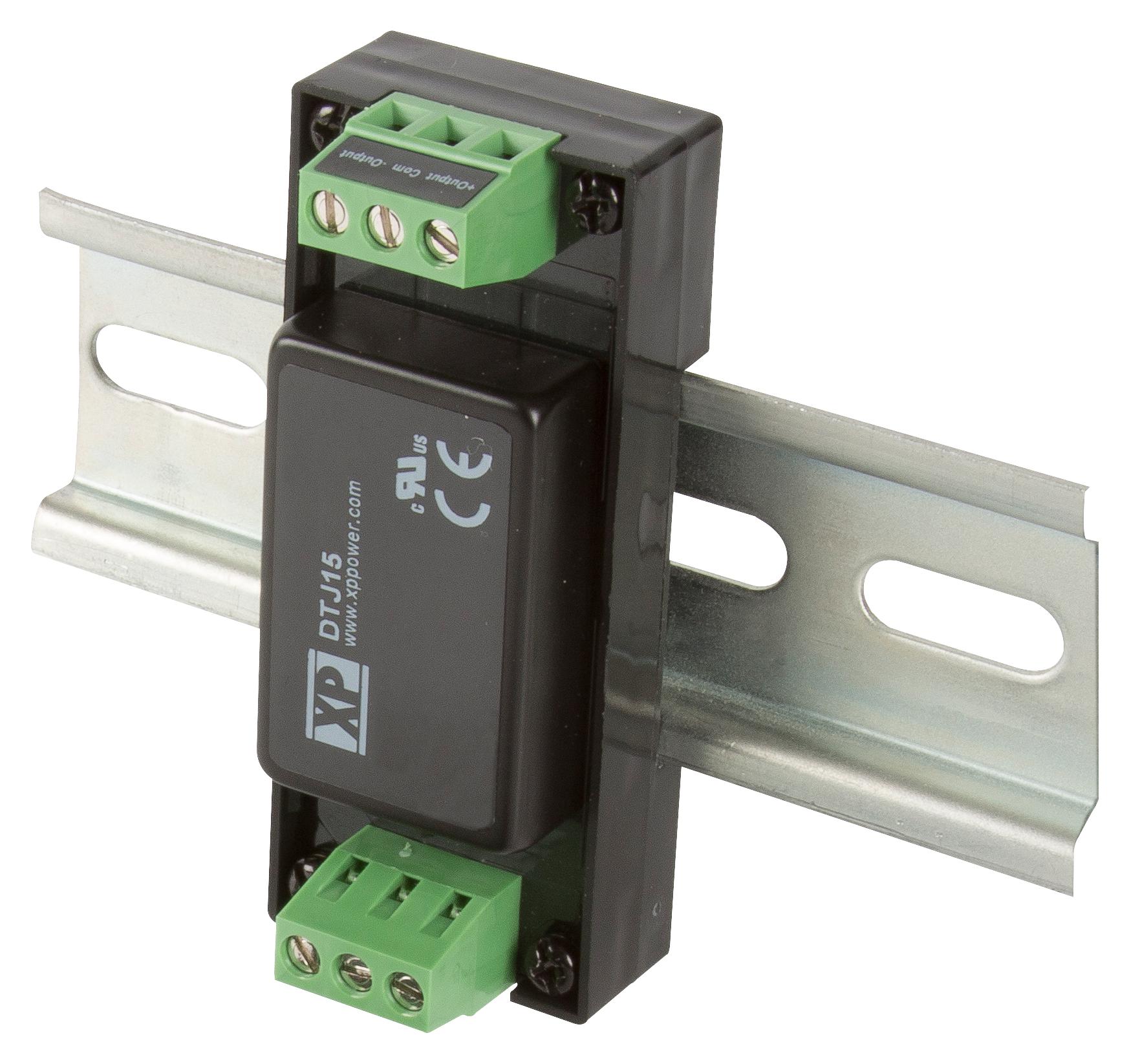

Buy the Buy XP Power DC-DC Converter Part Number DTJ1524S12D Online
Purchase the XP Power DC-DC Power Converter online today. This high-quality 15-watt power supply offers regulated outputs from 3.3V to 30V, with a wide input range suitable for industrial and commercial applications. It features advanced safety protections, UL62368-1 approval, and high efficiency up to 89%. Its compact design, lightweight construction, and multiple mounting options including DIN rail make installation easy and versatile. Ensure reliable power conversion for demanding environments with this robust and dependable chassis mount converter.
Get XP Power DTJ1524S12D today—built for precision, high durability, and versatile mounting options for demanding industrial environments.
Frequently Asked Questions
Where can I buy XP POWER DTJ1524S12D?
You can click on the BUY or RFQ button to purchase DTJ1524S12D from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part DTJ1524S12D?
You can download the DTJ1524S12D datasheet or visit the XP POWER website for support.
Who is the manufacturer of DTJ1524S12D?
XP POWER
