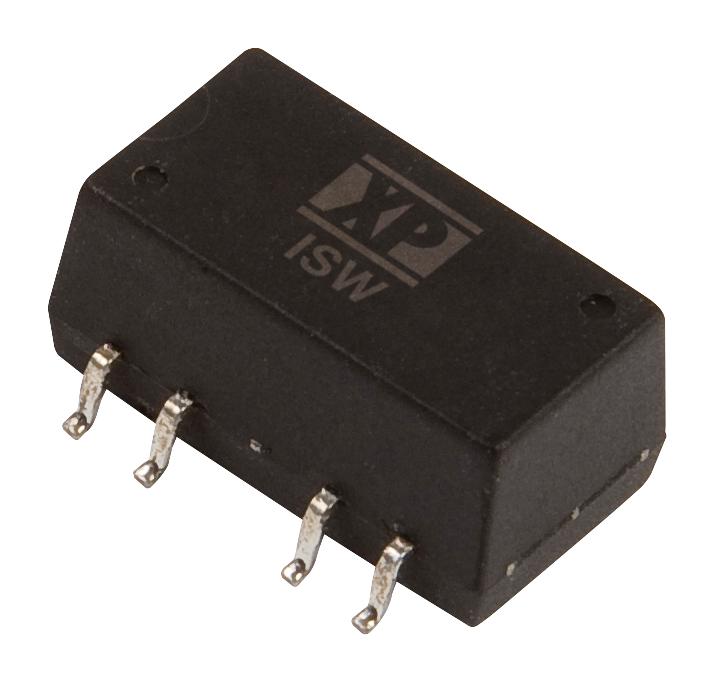

XP POWER ISW2405A DC-DC Converter
This surface-mount power module delivers reliable regulated output in a compact SMD package, ideal for industrial and signal processing use. It operates from -40°C to 85°C, ensuring durability across various environments. Featuring 1500V DC isolation, it provides enhanced safety and noise immunity, with an optional 3000VDC version. The module's industry-standard pinout simplifies integration into existing systems. Its efficient design supports typical applications requiring stable voltage conversion, high isolation, and temperature resilience, making it suitable for demanding industrial, automation, or electronic signal conditioning systems.
XP POWER ISW2405A DC-DC Converter Specifications:
- Type: Surface-mount (SMD) power module
- Operating Temperature Range: -40°C to 85°C
- Isolation Voltage: 1500 VDC, optional 3000 VDC with suffix '-H'
- Package: Industry standard pinout, compact size
- Dimensions: 0.600 x 0.44 x 0.285 inches (15.24 x 11.2 x 7.25 mm)
- Input Voltage Range: 4.75 V to 26 VDC
- Output Voltage: 5 V, 12 V, 15 V, 24 V (model dependent)
- Output Current: Up to 1 W power capacity
- Efficiency: Typical values based on load and model
- Ripple and Noise: 50 mV pk-pk measured at 20 MHz bandwidth
- Surge Voltage: 78 VDC for 12 V models, 30 VDC for 24 V models
- Start-up Delay: 2 ms
- Maximum Capacitive Load: 220 µF
- Switching Frequency: 50-300 kHz
- Isolation Resistance: ≥ 10^9 Ω at 500 VDC
- Weight: Approx. 0.004 lbs (2.0 g)
Buy the Buy XP Power DC-DC Converter Part Number ISW2405A Online
Purchase the XP Power DC-DC Converter online today and benefit from a highly efficient, space-saving power module featuring industry-standard pinout. It offers regulated output with excellent noise performance, wide temperature operation from -40°C to 85°C, and robust 1500V DC isolation, making it an ideal choice for industrial automation, signal processing, and sensitive electronic applications. Its compact size, fast start-up, and high reliability ensure seamless integration into your system, delivering consistent power with long-term durability and safety assurance.
Get XP Power ISW2405A today—designed for high isolation and reliable regulation in industrial environments.
