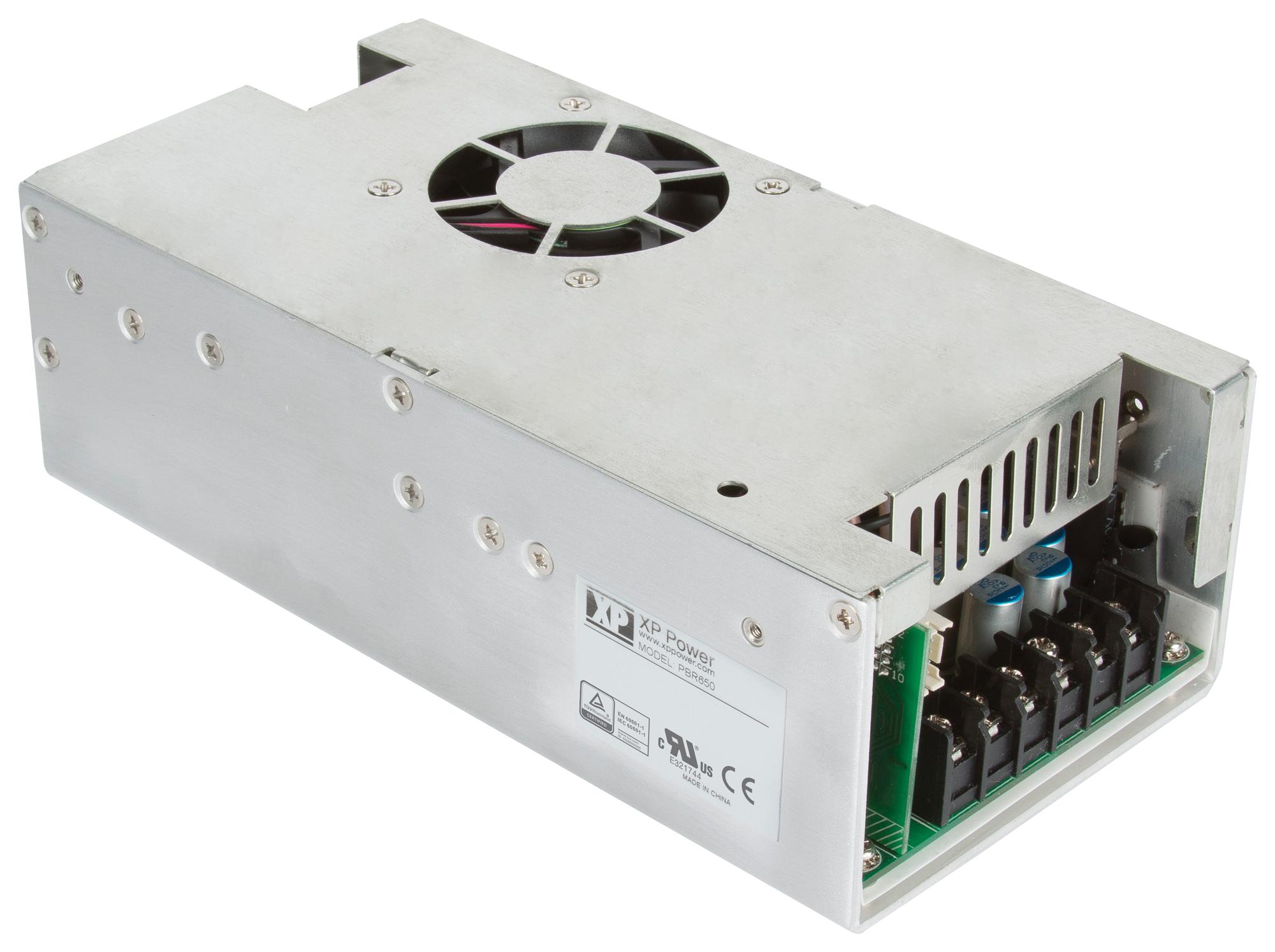

XP POWER PBR650PS24C Medical Power Supply
The PBR650 series is a set of AC-DC switching power supplies offering 600 to 650 watts of continuous power. Encased in a compact package measuring 4 x 8 x 2.58 inches, these power supplies are suitable for medical applications requiring BF-rated insulation and operation at altitudes up to 5,000 meters. Features include a 5V standby supply, AC OK indicator, inhibit function, remote sense, and compliance with Class B conducted and radiated emissions standards. They are designed to meet medical safety approvals for precise and reliable power delivery.
XP POWER PBR650PS24C Medical Power Supply Specifications:
- Input Voltage: 80-264 VAC, Derate to 90% at 85 VAC and 80% at 80 VAC
- Input Frequency: 47-63 Hz
- Input Current: 8.4A / 4.2A (115V / 230V, full load)
- Output Power: 600-650W
- Output Voltage: 12V, 15V, 18V, 24V, 28V, 36V, 48V, 57V models with respective current ratings
- Ripple & Noise: 120 mV to 570 mV depending on model, measured at 20 MHz bandwidth
- Efficiency: Typically 90%
- Isolation: Input to Ground 1500 VAC, Output to Ground 1500 VAC
- Overvoltage Protection: 115%-140% (latching)
- Overcurrent Protection: 115%-140% (trip & restart)
- Temperature Range: Operating from -10°C to +50°C, derates at higher temps
- Humidity: 5%-95% RH, non-condensing
- Dimensions: 8.00 x 4.00 x 2.58 inches (203.2 x 101.6 x 65.5 mm)
- Weight: Approx. 1.4 kg
Buy the Buy XP Power PBR650 Part Number PS24C Online
Order the XP Power PBR650 series power supply online today and ensure your medical devices operate with the highest reliability. With 600 to 650 watts of continuous power, BF-rated insulation, remote sensing, and compliance with medical standards, this compact power supply guarantees safety and performance. Its efficient design and built-in protections make it ideal for demanding healthcare environments. Purchase online now for fast delivery, secure checkout, and the peace of mind that comes with a trusted solution for your medical power requirements.
Buy XP Power PBR650 series power supply now and enjoy reliable, medical-grade power with BF insulation, remote sensing, and high efficiency for critical medical equipment.
Frequently Asked Questions
Where can I buy XP POWER PBR650PS24C?
You can click on the BUY or RFQ button to purchase PBR650PS24C from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part PBR650PS24C?
You can download the PBR650PS24C datasheet or visit the XP POWER website for support.
Who is the manufacturer of PBR650PS24C?
XP POWER
