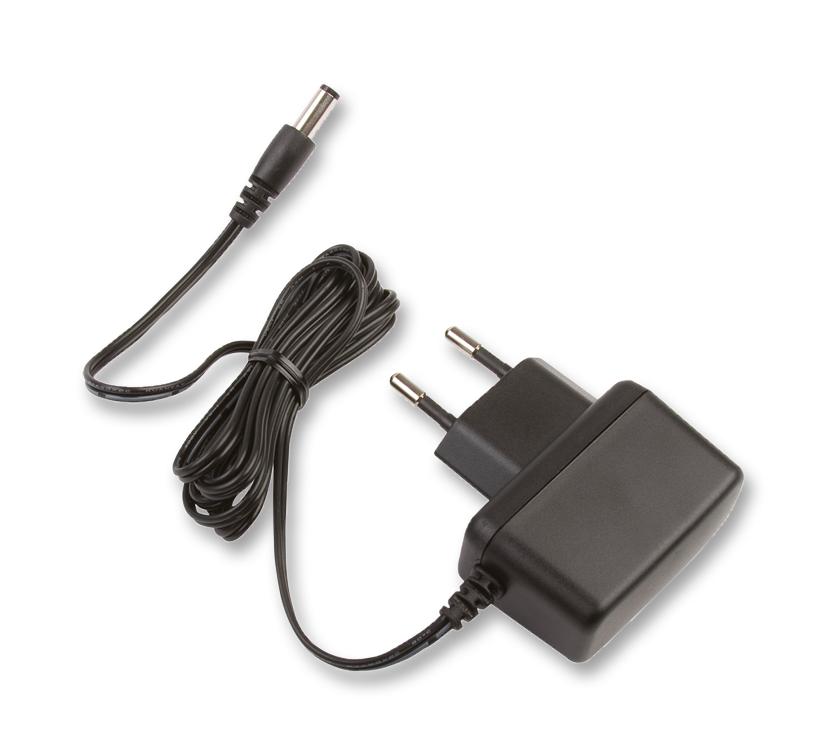

XP POWER VEL24US120EUJA Power Supply Adapter
The VEL24 series of wall plug adaptors meet the latest energy efficiency standards with high active mode efficiency and extremely low no load power consumption. Available with standard jack connectors, these adapters are suitable for various cost-sensitive applications. They support universal input voltages from 90 to 264 VAC, with output voltages from 12 V to 24 V, and power ratings up to 24W. Featuring Class II construction, they provide a reliable, low-cost power solution with industry-leading performance and compliance with safety and EMC standards.
XP POWER VEL24US120EUJA Power Supply Adapter Specifications:
- Input Voltage: 90 264 VAC
- Input Frequency: 63 Hz
- Input Current: 0.3 A @ 264 VAC
- Inrush Current: 60 A cold start at 25°C
- Power Factor: Class A
- No Load Power: 4 W
- Output Voltage: 12 V to 24 V (models vary)
- Output Power: Up to 24 W
- Total Regulation: 5 %
- Efficiency: 85% typical at full load and 115 VAC
- Isolation: 3000 VAC input to output
- Operating Temperature: 0°C to +60°C
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 3% to 95% RH, non-condensing
- Cooling: Natural convection
- Switching Frequency: 24-70 kHz (variable)
- MTBF: 250,000 hours (MIL-HDBK-217F at 25°C)
Buy the Buy XP Power VEL24 Power Supply Part Number VEL24US120EUJA Online
Purchase the XP Power VEL24 series power supply online for dependable, energy-efficient power delivery with universal input support. These adapters feature output voltages from 12 V to 24 V, offering up to 24W of power, ideal for various industrial, commercial, and consumer electronic applications. Designed with Class II construction, they ensure safety and durability while maintaining high efficiency and low no load power consumption. Easy to install, compact, and compliant with international safety standards, these power supplies guarantee dependable operation in a wide range of environments.
Get XP Power VEL24US120EUJA today—built for reliable performance, energy efficiency, and long-lasting durability in cost-sensitive power applications.
Frequently Asked Questions
Where can I buy XP POWER VEL24US120EUJA?
You can click on the BUY or RFQ button to purchase VEL24US120EUJA from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VEL24US120EUJA?
You can download the VEL24US120EUJA datasheet or visit the XP POWER website for support.
Who is the manufacturer of VEL24US120EUJA?
XP POWER
