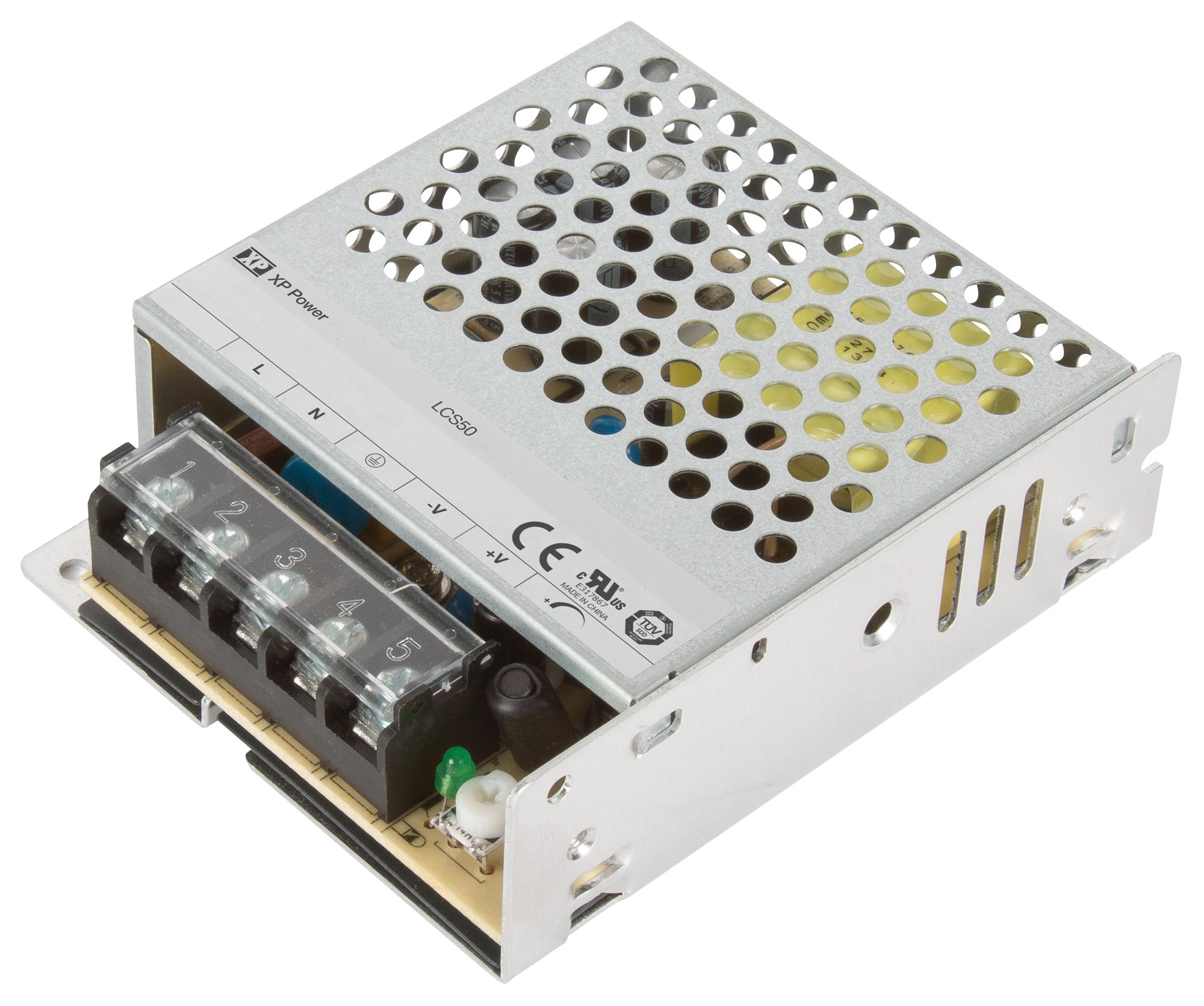

XP POWER LCS50US12 Power Supply
The LCS series of regulated, convection-cooled AC-DC power supplies offers an affordable and reliable power solution for industrial electronics, household, and automation applications. Features include adjustable output voltages from 5V to 48VDC, an LED indicator for power status, low standby power, and protection against short circuits, overcurrent, and overvoltage. Approved for ITE, industrial, and household use, these units support input voltages from 85 to 264 VAC, withstand 300 VAC for 5 seconds, and operate from -30°C to +70°C. Compact at 3.89" x 3.23" x 1.18", they are ideal for auxiliary power, security, lighting, smart home, and vending applications with a 3-year warranty.
XP POWER LCS50US12 Power Supply Specifications:
- Input Voltage Range: 85-264VAC
- Surge Withstand: 300VAC for 5 seconds
- Output Voltages: 5V to 48VDC with adjustment
- Output Current: From 10.08A at 5V to 3.48A at 15V, 1.458A at 36V, 1.1A at 48V
- Efficiency: Up to 90%
- Operating Temperature: -30°C to +70°C
- Dimensions: 3.89" x 3.23" x 1.18" (99.0 x 82.0 x 30.0 mm)
- Protection Features: Short circuit, overvoltage, overload
- Input Frequency: 47-63Hz
- Isolation: Input to Output 4000 VAC, Input to Ground 2000 VAC, Output to Ground 1250 VAC
- Switching Frequency: 65 kHz
- Conformal Coating: Optional, UL94V-0 rated
- Certifications: ITE, industrial, household approvals, Class B emissions
Buy the Buy XP Power LCS50US12 Power Supply Part Number LCS50US12 Online
Secure your XP Power LCS50US12 power supply online today for a dependable, efficient, and compact solution to meet your industrial and household power needs. With adjustable output voltage, protection features, and a 3-year warranty, this 50W convection-cooled unit is ideal for security systems, lighting control, smart home automation, and vending applications. Its high efficiency up to 90%, wide input voltage support, and compliance with safety standards make it a top choice for professionals seeking quality and reliability in power supplies. Order now to enhance your project’s stability and performance.
Order your XP Power LCS50US12 regulated power supply today and ensure reliable power delivery for industrial, security, and automation projects.
Frequently Asked Questions
Where can I buy XP POWER LCS50US12?
You can click on the BUY or RFQ button to purchase LCS50US12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCS50US12?
You can download the LCS50US12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCS50US12?
XP POWER
