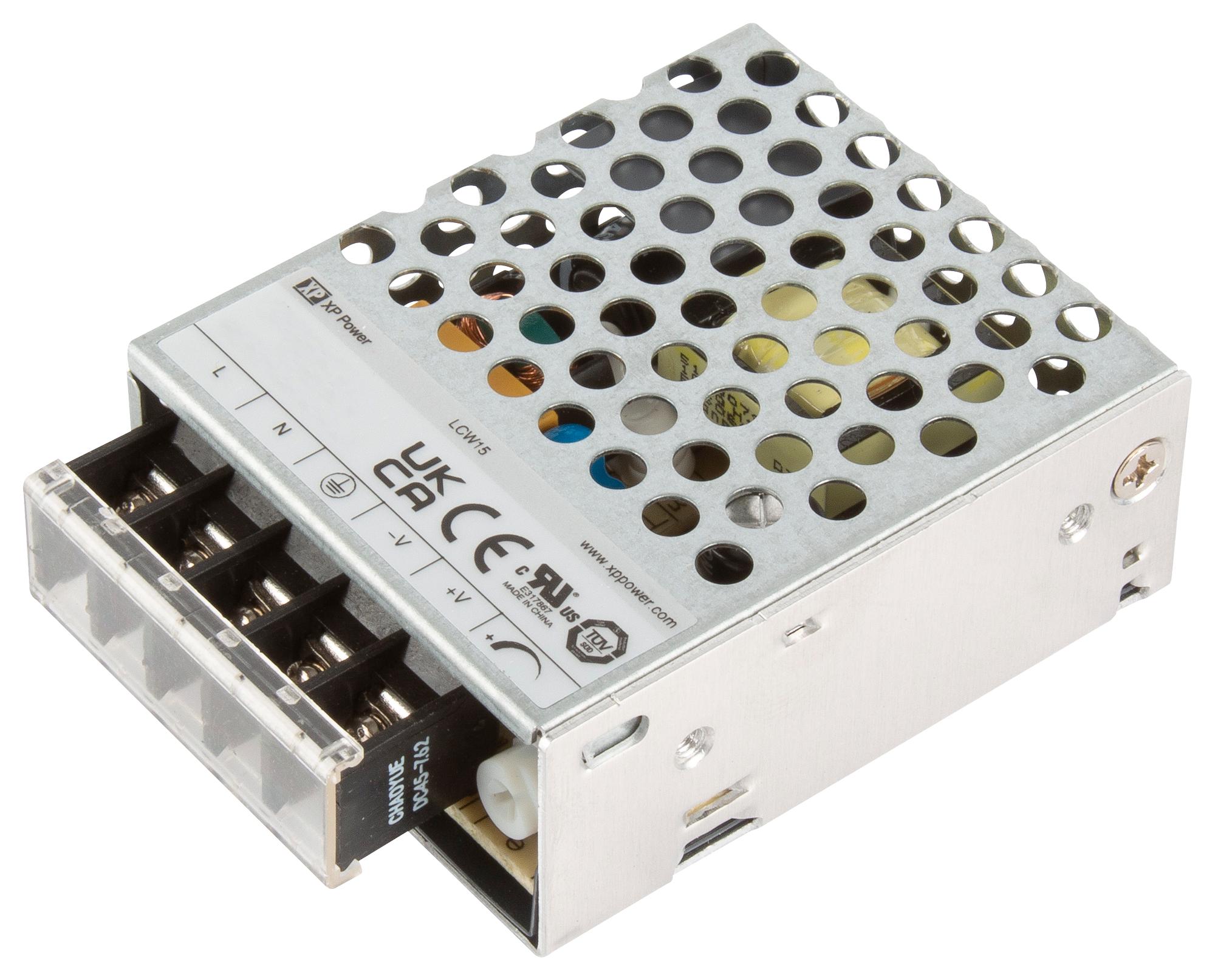

XP POWER LCW15US48 Power Supply Module
The LCW15 series regulated AC to DC power supplies are convection-cooled, 15W units engineered for industrial and electronic applications. They support a wide input voltage range of 85-305VAC, featuring adjustable output voltages, low standby power consumption, and comprehensive protections including short circuit, overcurrent, overload, and overvoltage. Suitable for auxiliary power, security, lighting, smart home, and vending systems, these supplies meet UL62368-1, EN 62368-1, CE, and UKCA standards. Key features include optional conformal coating, Class B emissions, efficiency up to 83%, 65kHz switching frequency, and operating temperatures of -30°C to +70°C. Dimensions are 78mm x 55mm x 25mm with a vented aluminum chassis and galvanized steel cover, backed by a 3-year warranty.
XP POWER LCW15US48 Power Supply Module Specifications:
- Input Voltage Range: 85-305VAC
- Input Frequency: 50/60Hz
- Output Power: 15W
- Output Voltage Range: 3.3V to 48VDC (adjustable +10%)
- Output Current: 3.0A (at 3.3V), up to 3.0A (at 5V), 1.34A (at 12V), 1.04A (at 15V), 0.625A (at 24V), 0.324A (at 48V)
- Efficiency: Up to 83%
- Protection: Short circuit, overvoltage, overload
- Switching Frequency: 65kHz
- Dimensions: 78mm x 55mm x 25mm including connector
- Operating Temperature Range: -30°C to +70°C
- Mounting: Vented aluminum chassis, galvanized steel cover
- Certifications: UL62368-1, EN 62368-1, CE, UKCA
- Environmental Resistence: 5–90% RH, non-condensing, up to 5000m altitude
Buy the XP Power LCW15U – Reliable Convection Cooled Power Supply for Industrial Applications
Enhance your industrial systems with the XP Power LCW15U convection-cooled power supply. Offering adjustable voltage, high efficiency up to 83%, and multiple protections—ideal for automation, security, lighting, and vending equipment. Its compact design, operating temperature range from -30°C to +70°C, certified standards, and 3-year warranty ensure optimal performance and durability. Available for online purchase, this power supply delivers consistent, reliable power to critical systems efficiently and safely. Order now and ensure your technology stays powered seamlessly and securely.
Buy XP Power LCW15U now and experience unmatched reliability and performance for your industrial and electronic needs.
Frequently Asked Questions
Where can I buy XP POWER LCW15US48?
You can click on the BUY or RFQ button to purchase LCW15US48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part LCW15US48?
You can download the LCW15US48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of LCW15US48?
XP POWER
