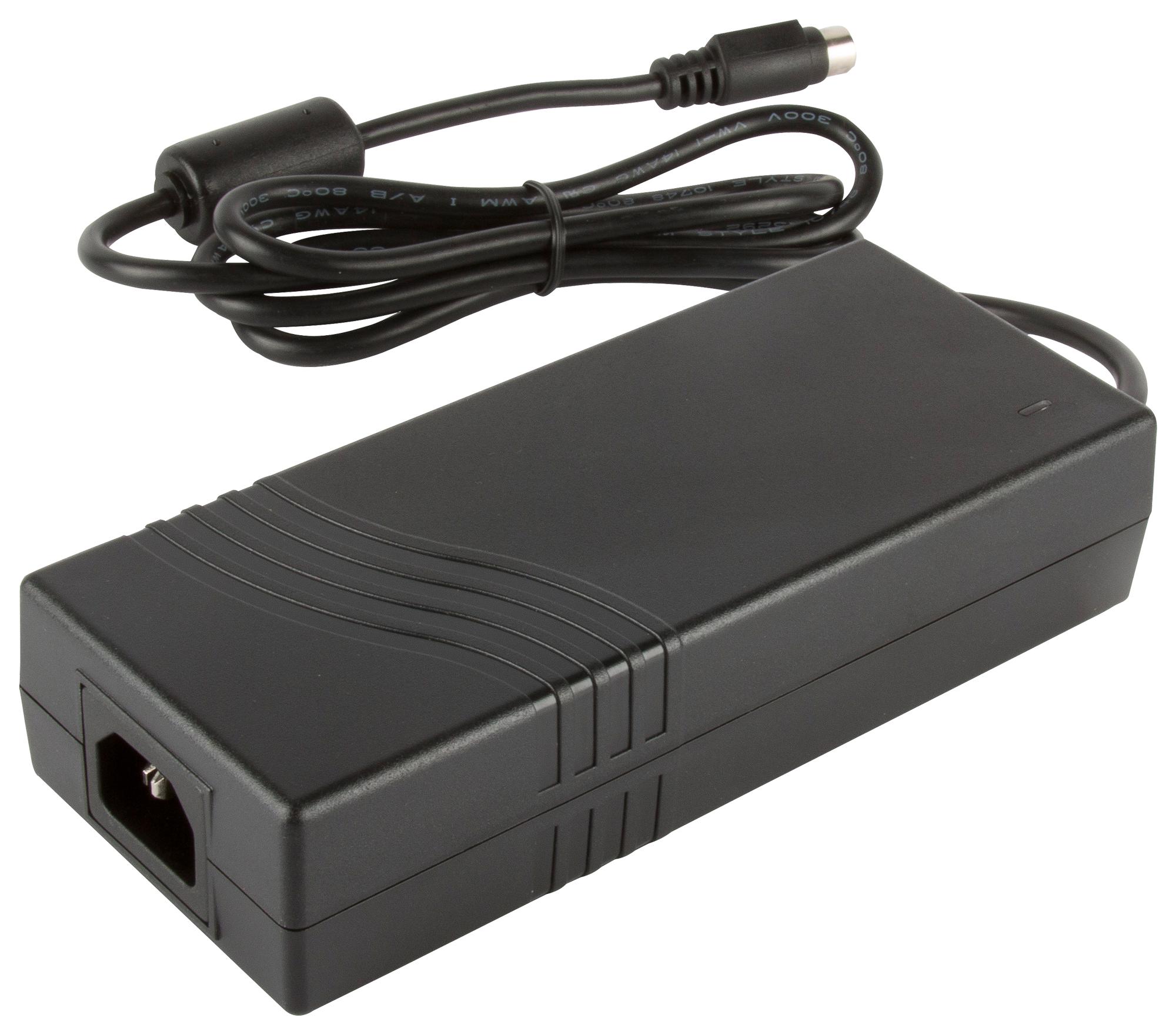

XP POWER VES180PS48 AC DC Power Supply
The VES180 series is a 180W AC to DC power supply that complies with Energy Efficiency Level VI and CoC Tier 2 standards. It features high efficiency of approximately 92%, which helps keep the unit cool during operation. The power supply consumes less than 0.15W in standby mode, offers high power density, and is China CCC certified. Its operating temperature range is from -10°C to +60°C. The dimensions are 7.77 inches by 3.5 inches by 1.53 inches (197.4mm x 88.9mm x 39.0mm).
XP POWER VES180PS48 AC DC Power Supply Specifications:
- Power Output: 180 Watts
- Input Voltage: 90-264 VAC
- Input Frequency: 63 Hz
- Input Current: 18/09 A at 115/230 VAC
- Inrush Current: 120 A at 230 V
- Efficiency: 92%
- Standby Power: 0.15 W
- Isolation: Input to Output 3000 VAC, Input to Ground 1500 VAC
- Output Voltage and Currents: 12V-15V-19V-24V-48V; up to 15A for 12V, 12A for 15V, 9.47A for 19V, 0.75A for 24V, 0.375A for 48V
- Operating Temperature: -10°C to +60°C
- Dimensions: 7.77 x 3.5 x 1.53 inches (197.4 x 88.9 x 39.0 mm)
- Weight: 2.23 lbs (1010 g)
- Certifications: UL, TUV, cUL, CCC, CE, RoHS
- Cooling: Natural convection
- Safety Standards: UL62368-1, IEC62368-1, IEC60950-1, GB4943
- Protection Features: Overload, Overvoltage, Short Circuit
- Efficiency Certification: DoE Level VI, CoC Tier 2
- Switching Frequency: 70 kHz
- Power Density: 43 W/in³
- Vibration & Shock Resistance: IEC standard tests
Buy the XP Power Series AC-DC Power Supply: VES180PS48
Purchase the XP Power VES180PS48 online today for reliable, high-efficiency power conversion. Designed for industrial and commercial applications, this 180W power supply offers excellent efficiency, broad input voltage, and a compact form factor. Its low standby power consumption and comprehensive safety features make it an ideal choice for demanding electronic projects and equipment. Secure fast delivery and expert support by ordering now, ensuring seamless integration into your systems with confidence in quality and performance.
Get XP Power VES180PS48 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy XP POWER VES180PS48?
You can click on the BUY or RFQ button to purchase VES180PS48 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part VES180PS48?
You can download the VES180PS48 datasheet or visit the XP POWER website for support.
Who is the manufacturer of VES180PS48?
XP POWER
