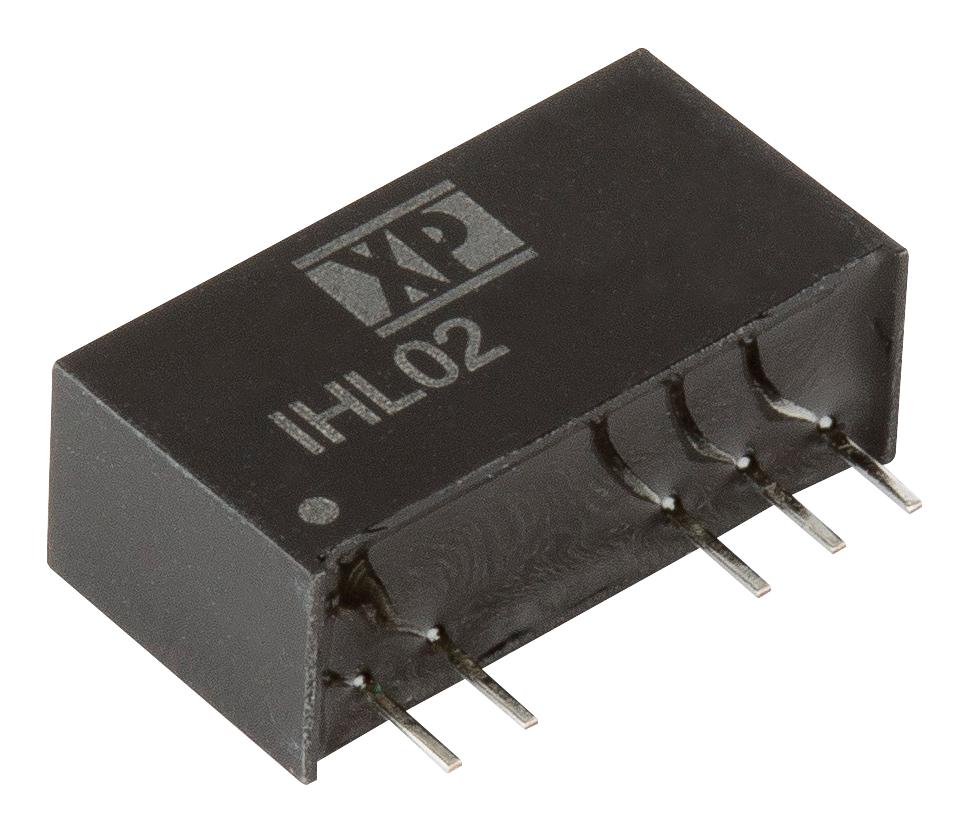

XP POWER IHL0224D15 DC-DC Converter
The IHL02 series is a 2W DC-DC converter available in a 7-pin SIP package. It features bipolar outputs suitable for MOSFET and IGBT drive applications, with high isolation of 5200VDC and an operating voltage of 250VAC. The converter provides both single and dual output options, with continuous short circuit protection. It operates effectively over a temperature range from -40°C to 95°C and is capable of full load operation at 65°C ambient temperature. Designed for power management and industrial applications.
XP POWER IHL0224D15 DC-DC Converter Specifications:
- Power: 2 Watts
- Isolation Voltage: 5200 VDC (functional insulation)
- Operating Voltage: 250 VAC
- Output Options: Single & dual outputs
- Outputs: Bipolar for MOSFET & IGBT drives
- Transient Immunity: 20 kV/μs
- Package: SIP7
- Operating Temperature Range: -40°C to +95°C
- Full load at 65°C ambient
- MTBF: 3.3 million hours
- Dimensions: 0.77 x 0.28 x 0.39 inches (19.5 x 7.2 x 10.0 mm)
- Weight: 0.006 lbs (2.7 g)
- Efficiency: up to 80%
- Ripple & Noise: 150 mV pk-pk
- Short Circuit Protection: Continuous, auto-recovery
- Switching Frequency: 50–100 kHz
- Case Material: Non-conductive black plastic (UL94V-0)
- Soldering Process: 260°C for 10 seconds max, 1.5 mm from case
- Humidity: 25% to 95% RH, non-condensing
- Compliance: CE, UKCA
- CMTI: 20 kV/μs
Buy the XP Power IHL0224D15 – Reliable DC-DC Converter for Industrial Applications
Purchase the XP Power IHL0224D15 online today to enhance your industrial and power management systems. This 2W DC-DC converter offers high isolation of 5200VDC, bipolar outputs suitable for MOSFET and IGBT drives, and operates over a temperature range of -40°C to 95°C. Its compact SIP7 package, efficiency up to 80%, and short circuit protection ensure reliable performance for demanding applications. Buy now to ensure your projects benefit from proven quality, fast delivery, and excellent technical support.
Order your XP Power IHL0224D15 today and give your power management projects the dependable quality they deserve.
