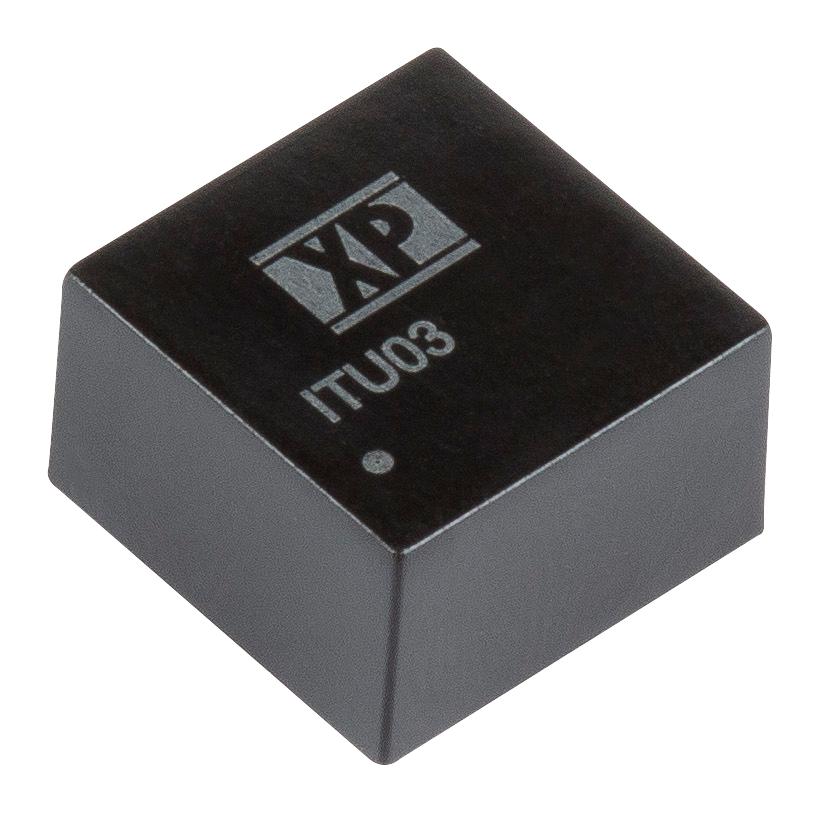

XP POWER ITU0312S12 DC-DC Converter
The ITU series offers a compact, 3W DC-DC converter with wide input voltage ranges of 4.5-18V, 9-36V, and 18-75V DC, supporting regulated single and dual outputs from 3.3V to 30V. It features high efficiency up to 84%, 1.6kVDC input/output isolation, short circuit protection, remote on/off, and operates from -40°C to +80°C. Encased in a robust DIP8 package, it ensures reliable performance in industrial applications, with full power up to +70°C, and boasts an MTBF exceeding 820,000 hours.
XP POWER ITU0312S12 DC-DC Converter Specifications:
- Input Voltage Range: 4.5-18V, 9-36V, 18-75V DC as per model
- Output Power: 3 Watts
- Output Voltage: 3.3V to 30V (regulated, single & dual outputs)
- Efficiency: Up to 84%
- Isolation: 1.6kVDC input/output
- Operating Temperature: -40°C to +80°C, full power up to +70°C
- Dimensions: 0.55 x 0.55 x 0.32 inches (14.0 x 14.0 x 8.1mm)
- Input Surge Voltage: 100ms, see datasheet
- Regulation: 1% load regulation, 2-6% gross regulation
- Ripple & Noise: 100mV pk-pk, transient response within 5% deviation
- Protection: Short circuit, remote on/off control
- Compliance: EN55032 Class A, safety approvals CE and UKCA
- MTBF: Greater than 820,000 hours (MIL-HDBK-217F, +25°C)
Buy the Buy XP Power ITU Series3W Converter Part Number ITU0312S12 Online
Purchase the XP Power ITU Series 3W DC-DC Converter online today for small footprint power regulation. Featuring wide input voltages of up to 75VDC, efficiency up to 84%, and robust encapsulation, this converter is ideal for industrial settings. It provides regulated outputs from 3.3V to 30V, supports remote on/off, and includes short circuit protection, ensuring dependable operation. With a temperature range from -40°C to +80°C and a MTBF exceeding 820,000 hours, it offers durability and high performance for demanding environments.
Order your XP Power ITU Series3W Converter today and ensure reliable power supply for your industrial applications with proven quality.
Frequently Asked Questions
Where can I buy XP POWER ITU0312S12?
You can click on the BUY or RFQ button to purchase ITU0312S12 from an authorized XP POWER distributor.
How do I troubleshoot issues or seek technical support for part ITU0312S12?
You can download the ITU0312S12 datasheet or visit the XP POWER website for support.
Who is the manufacturer of ITU0312S12?
XP POWER
