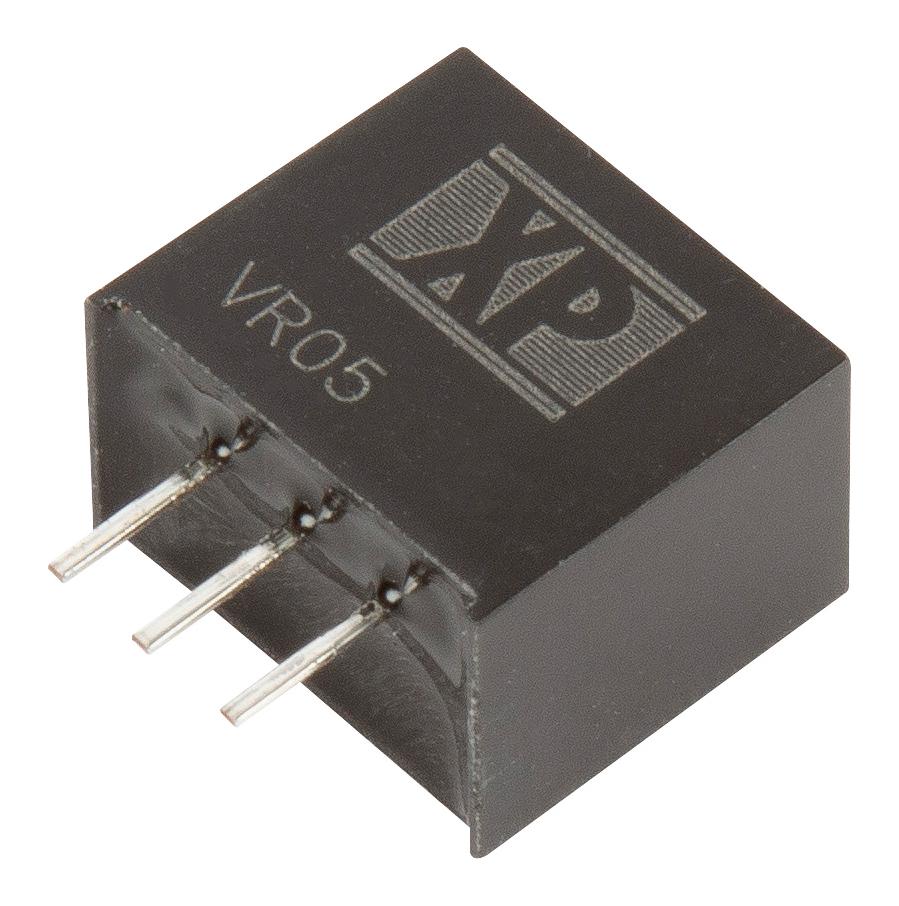

XP POWER VR05S12 DC-DC Converter
The VROS5 Series DC-DC Converter from XP Power offers a compact, high-efficiency solution for powering electronic devices from a wide input voltage range of 4.75V to 36V. It provides regulated single outputs from 3.3V to 15V with output currents up to 500mA. The non-isolated design features high efficiency of up to 95%, low standby input current of 0.1mA, and short circuit protection. Its robust case measures approximately 0.457 x 0.401 x 0.297 inches, making it suitable for space-constrained applications with reliable operation from -40°C to +85°C.
XP POWER VR05S12 DC-DC Converter Specifications:
- Input Voltage Range: 4.75V to 36V
- Output Voltage: 3.3V to 15V
- Output Current: 500mA
- Efficiency: up to 95%
- Isolation: None (non-isolated)
- Operating Temperature: -40°C to +85°C
- Operating Frequency: 550-850 kHz
- Dimensions: 0.457 x 0.401 x 0.297 inches (11.6 x 10.16 x 7.55 mm)
- MTBF: Greater than 2 million hours
- Short Circuit Protection: Yes, auto recovery
- Standby Input Current: 0.1mA
- Housing Material: Non-conductive black plastic UL94V-0
- Pin Material: Solder coated phosphor bronze
- Soldering Temperature: 260°C for vapor phase soldering
- Certifications: Class B conducted & radiated emissions
Buy the Buy XP Power VROS5 Series DC-DC Converter Part Number VRO5S12 Online
Secure your XP Power VROS5 Series DC-DC Converter today online. This high-efficiency, compact power module delivers up to 95% efficiency with output voltages from 3.3V to 15V, supporting currents up to 500mA. It features a wide input range of 4.75V to 36V, making it suitable for industrial, automation, and embedded systems. Its small size, robust construction, and auto recovery short circuit protection ensure long-term durability and dependable operation in challenging conditions from -40°C to +85°C. Purchase now for reliable power solutions.
Get XP Power VRO5S12 today—designed for high efficiency, space-saving applications, and reliable performance in demanding environments.
