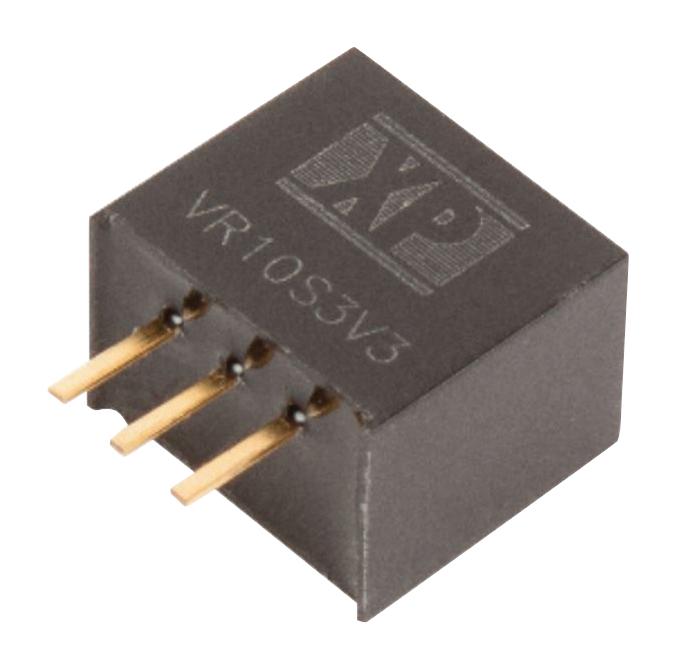

XP POWER VR10S3V3 Switching Regulator
The VR10 Series is a compact, high-efficiency non-isolated switching regulator providing regulated outputs from 3.3V to 15VDC with a wide input range of 6V to 36V. With efficiencies up to 96%, it features short circuit protection, low standby current of 0.3mA, and operates reliably between -40°C to +85°C. The SIP3 package ensures a small footprint, making it ideal for demanding power conversion applications requiring high performance, durability, and minimal thermal dissipation.
XP POWER VR10S3V3 Switching Regulator Specifications:
- Input Voltage Range: 6V to 36V
- Output Voltage: 3.3V
- Output Current: 1.0A
- Efficiency: Up to 96%
- Input Filter: Internal capacitor
- Ripple & Noise: 75 mV pk-pk
- Short Circuit Protection: Continuous with auto recovery
- Temperature Range: -40°C to +85°C
- MTBF: >2 million hours
- Package: SIP3
- Dimensions: 0.457 x 0.409 x 0.315 inches (11.6 x 10.4 x 8.0 mm)
- Weight: Approx. 0.0041 lbs (1.99 g)
- Switching Frequency: 520 kHz
- Isolation: None (input to output)
- Case Material: Non-conductive black plastic UL94V-0
- Pin Material: Solder coated phosphor bronze
- Start-up Time: 20 ms
- Operating Temperature: -40°C to +85°C
- Humidity: Up to 95% RH, non-condensing
Buy the XP Power Series VR10 Switching Regulator: VR10S3V3
Discover the versatile and reliable VR10 Series switching regulator, offering 3.3V output at 1A from a 6V-36V input range. Engineered for high efficiency up to 96%, it features short circuit protection, a broad operating temperature of -40°C to +85°C, and a compact SIP3 case for space-constrained applications. With a switching frequency of 520 kHz, low standby current, and robust durability, this regulator guarantees stable power conversion in industrial, embedded, and control systems. Purchase online today for high-performance power management tailored to your needs.
Order your XP Power Series VR10S3V3 high-efficiency switching regulator today and ensure reliable power delivery for your demanding projects.
