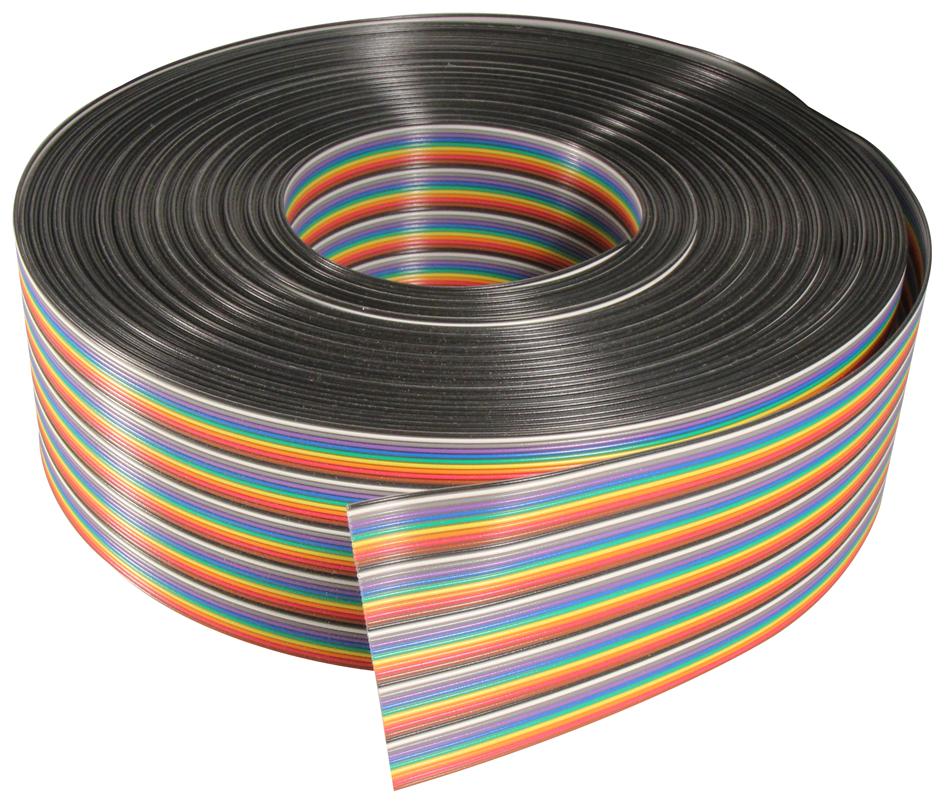

3M 381150 Flat Ribbon Cable
The 3811 series color-coded flat ribbon cable features 26 AWG tinned copper conductors on a 0.050-inch pitch. Designed for easy mass termination, it is compatible with a wide range of IDC connectors. The cable is constructed with flexible stranded wire for durability and longer lifespan, with a PVC jacket for insulation. It is also zippable, allowing for branching or discrete terminations, and is color-coded for easy wire identification. The cable meets VW-1 flammability standards and is suitable for industrial applications.
3M 381150 Flat Ribbon Cable Specifications:
- Insulation Material: Polyvinyl Chloride (PVC)
- Conductor Material: Tinned Stranded Copper
- Conductor Size: 26 AWG
- Pitch: 0.050 inch
- Number of Conductors: Varies from 10 to 64 in different models
- Voltage Rating: 300V (USA), 150V (Canada), <50V (EU)
- Insulation Resistance: > 1 x 10^9Ω/10 ft
- Characteristic Impedance: 95Ω
- Capacitance: 14.8 pF/ft
- Inductance: 13 μH/ft
- Propagation Delay: 1.41 ns/ft
- Velocity of Propagation: 72%
- Flammability Rating: VW-1
- Temperature Rating: -20°C to +105°C
- Color Coding: 10-color repeat pattern
- Available Lengths: 100 ft, 300 ft
- Suitable for IDC connectors and branching applications
Buy the 3M 3811 Series U+2013 Reliable Flat Ribbon Cable for Industrial Applications
Purchase the 3M 3811 series flat ribbon cable online today. This durable, flexible cable features a 0.050-inch pitch, tinned copper conductors, and color coding for easy identification. Its PVC insulation ensures safety and reliability for industrial applications, with zippable options for branching and discrete terminations. Suitable for mass termination to IDC connectors, it offers excellent electrical performance, high voltage ratings, and compliance with flammability standards. Order now to improve your wiring efficiency and project reliability.
Get 3M 3811 Series flat cable today—designed for reliable industrial connectivity and long-lasting performance in wiring projects.
Frequently Asked Questions
Where can I buy 3M 381150?
You can click on the BUY or RFQ button to purchase 381150 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 381150?
You can download the 381150 datasheet or visit the 3M website for support.
Who is the manufacturer of 381150?
3M
