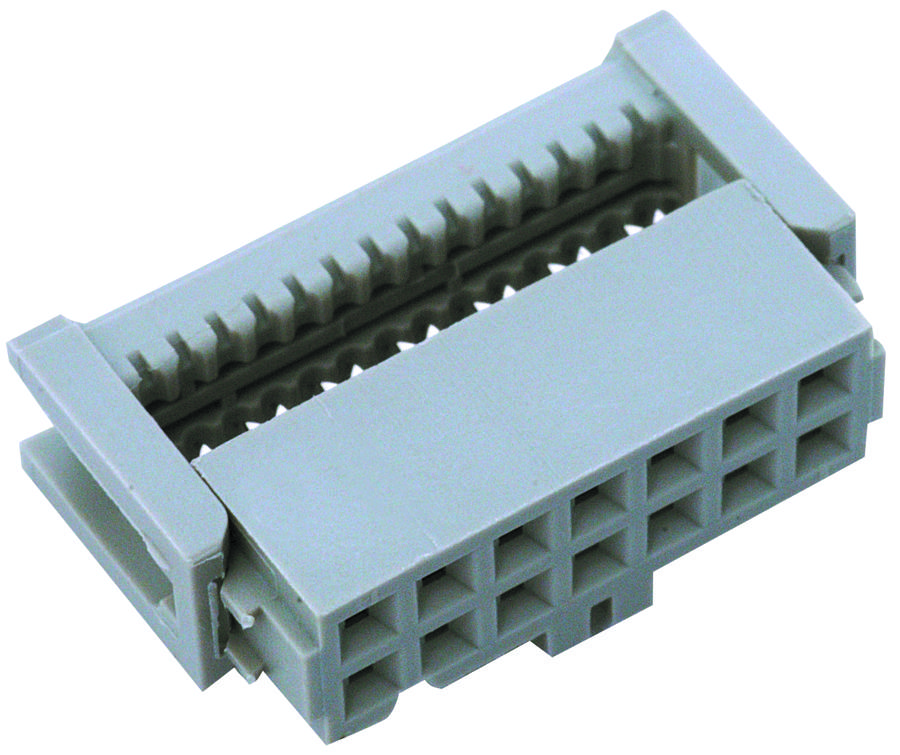

3M 891240101 Ribbon Cable Connector
The 3M™ IDC Ribbon Cable Socket of the 891 Series is a preassembled, wire-mounted connector designed for 0.050-inch pitch cables, measuring 0.100 inches for reliable connections. Constructed from durable glass-filled polyester (PBT) with UL 94V-0 flammability rating, it features phosphor bronze contacts with nickel underplating and gold wiping for excellent electrical performance. It supports 26 and 28 AWG stranded wire, with a current rating of 1A per contact at 30°C and a temperature range of -55°C to +105°C. Its double-recessed cover enables cable termination from either side, suitable for high-density electronic applications.
3M 891240101 Ribbon Cable Connector Specifications:
- Material: Glass filled polyester (PBT)
- Flammability: UL 94V-0
- Color: Gray
- Contact Material: Phosphor bronze
- Plating: 50 micron nickel underplate, 30 micron gold wiping
- Wire Range: 26 and 28 AWG stranded
- Current Rating: 1A per contact at 30°C
- Temperature Rating: -55°C to +105°C
- Dimensions: 0.100 inches x 0.100 inches for 0.050-inch pitch cables
- Cable Exit: Recessed for cable exit from either side
- Insulation Resistance: As per industry standards
- Withstanding Voltage: 1000 V at sea level
- Certifications: UL Listed (File No. E68080)
Buy the 3M Series 891 Cable Connector: 891240101
Purchase the 3M Ribbon Cable Connector of the 891 Series online today to ensure reliable and efficient cable connections in your electronic projects. This preassembled connector, measuring 0.100 inches for 0.050-inch pitch cables, provides a secure fit with durable materials like glass-filled polyester and precision phosphor bronze contacts. It supports stranded wires of 26 and 28 AWG with a current rating of 1A per contact at 30°C, operating effectively within a temperature range of -55°C to +105°C. Easy to install, it is ideal for high-density electronic assembly environments, ensuring dependable performance and safety standards compliance.
Get 3M 891240101 today—designed for high-density wiring and long-lasting electrical performance.
Frequently Asked Questions
Where can I buy 3M 891240101?
You can click on the BUY or RFQ button to purchase 891240101 from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 891240101?
You can download the 891240101 datasheet or visit the 3M website for support.
Who is the manufacturer of 891240101?
3M
