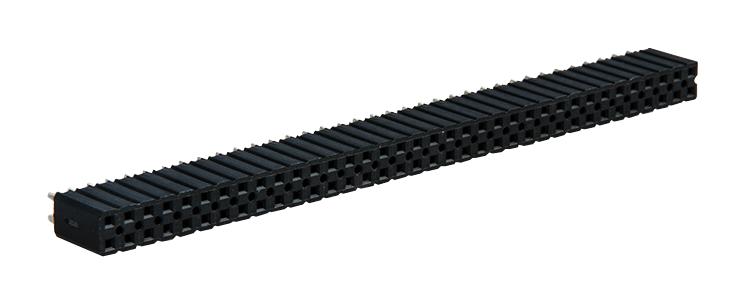

3M 9299750125RK Pin Strip Header
The 3M™ Pin Strip Header Single and Dual Row offers versatile connection options with .100”, .235”/.318” mating lengths in straight and right angle configurations with solder tails. Suitable for high-temperature soldering with PCT plastic insulators, it features stackable design, gold, matte tin, or tin-lead plating, and a board pin retention option. Constructed from glass-filled polyester or high-temperature plastic, it ensures reliable electrical performance up to 2.5A, with excellent insulation resistance and withstand voltage suitable for demanding industrial applications. Easy to install and compliant with safety standards, this header facilitates efficient PCB connections in various electronic systems.
3M 9299750125RK Pin Strip Header Specifications:
- Material: Glass Filled Polyester or High Temperature (PCT)
- Flammability: UL 94V-0
- Color: Black
- Contact Material: Copper Alloy
- Plating Options: Gold, Matte Tin, or Tin-Lead
- Current Rating: 2.5A
- Insulation Resistance: >5x 10^9Ω at 500V
- Withstanding Voltage: 1500V AC at Sea Level
- Temperature Rating: -40°C to +105°C
- Process Rating: 260°C for PCT parts, maximum insulator temperature 191°C
- Moisture Sensitivity Level: Level 1 (per J-STD-020C)
Buy the 3M 9299750125 RK – Reliable Pin Strip Headers for Industrial Applications
Order the 3M Pin Strip Header now to ensure high-quality, reliable PCB connections in your electronic projects. Featuring high-temperature plastic, multiple plating options, and design versatility, this header is ideal for industrial and commercial applications. Its stackable design, solder tails, and optional pin retention make assembly efficient and dependable. Suitable for wave or IR soldering processes, it guarantees compliance with safety and environmental standards, offering superb electrical performance and durability. Purchase online today to streamline your manufacturing and repair processes with confidence.
Buy 3M 9299750125 RK now and experience unmatched reliability and high-temperature performance for your PCB connections.
Frequently Asked Questions
Where can I buy 3M 9299750125RK?
You can click on the BUY or RFQ button to purchase 9299750125RK from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part 9299750125RK?
You can download the 9299750125RK datasheet or visit the 3M website for support.
Who is the manufacturer of 9299750125RK?
3M
