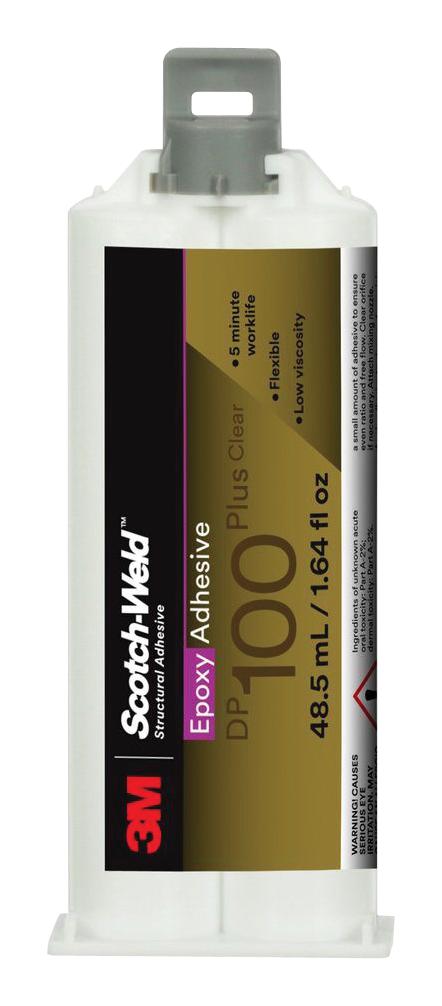

3M DP100PLUS Epoxy Adhesive Clear
3M™ Scotch-Weld™ Epoxy Adhesive DP100 Plus Clear is a fast-setting, two-part, 1:1 mix ratio mercaptan-cured epoxy adhesive. It's unique for its combination of high shear strength and good peel performance. This transparent and slightly flexible adhesive is ideal for bonding a wide range of materials including metals, plastics, and composites. It is recognized as meeting UL 94 HB flammability standards. Typical applications include bonding in automotive, appliance, and general industrial assembly.
3M DP100PLUS Epoxy Adhesive Clear Specifications:
- Base Color: Clear
- Accelerator Color: Clear
- Base Viscosity: 4000 to 11000 cP
- Accelerator Viscosity: 7000 to 13000 cP
- Base Resin: Epoxy
- Accelerator Resin: Mercaptan
- Base Net Weight: 9.7 to 9.9 lb/gal
- Accelerator Net Weight: 9.4 to 9.8 lb/gal
- Mix Ratio by Volume (B:A): 1:1
- Mix Ratio by Weight (B:A): 1:1
- Elongation: 75%
- Overlap Shear Strength (Etched Aluminum): 3500 lb/in²
- Overlap Shear Strength (Sanded Aluminum): 1800 lb/in²
- Overlap Shear Strength (Cold Rolled Steel): 1700 lb/in²
- Overlap Shear Strength (Wood - Fir): 700 lb/in²
- Overlap Shear Strength (Glass): 250 lb/in²
- Overlap Shear Strength (Glass w/ Primer): 300 lb/in²
- Overlap Shear Strength (Polycarbonate): 600 lb/in²
- Overlap Shear Strength (Acrylic): 300 lb/in²
- Overlap Shear Strength (Fiberglass): 1500 lb/in²
- Overlap Shear Strength (ABS): 280 lb/in²
- Overlap Shear Strength (PVC): 450 lb/in²
- Overlap Shear Strength (Polypropylene): 80 lb/in²
- Environmental Resistance (OLS): 4500 lb/in² (24 hrs @ 240°F)
- Overlap Shear Strength (-67°F): 3000 lb/in²
- Overlap Shear Strength (Room Temp): 3500 lb/in²
- Overlap Shear Strength (120°F): 750 lb/in²
- Overlap Shear Strength (150°F): 400 lb/in²
- Overlap Shear Strength (180°F): 200 lb/in²
- T-Peel Adhesion (-67°F): 2 lb/in width
- T-Peel Adhesion (Room Temp): 13 lb/in width
- T-Peel Adhesion (120°F): 15 lb/in width
- T-Peel Adhesion (150°F): 2 lb/in width
- T-Peel Adhesion (180°F): 1 lb/in width
- Solvent Resistance (Acetone): Unaffected
- Exotherm max temp: 128 °F
