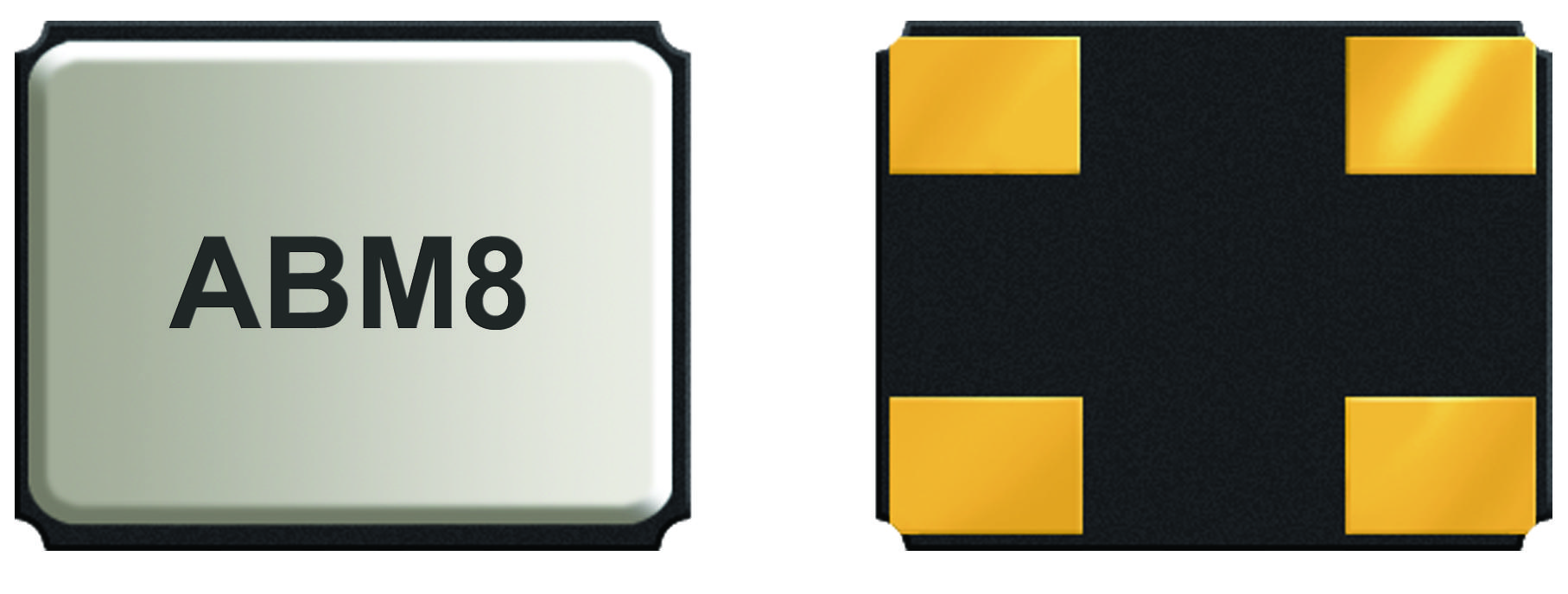

ABRACON ABM818432MHZD1XT Ultra Miniature Ceramic Crystal
This ultra miniature ceramic surface-mount crystal provides high stability, low power consumption, and excellent frequency accuracy for clock and timing applications. Its hermetically sealed, moisture-resistant package ensures long-term reliability in various conditions, suitable for high-density, thin equipment, and RoHS reflow-compatible designs. Operating from 10 MHz to 125 MHz with tight tolerance, it ensures precise synchronization for communication, modem, and test equipment, making it ideal for modern electronics requiring miniature size and robust performance.
ABRACON ABM818432MHZD1XT Ultra Miniature Ceramic Crystal Specifications:
- Dimensions: 3.2x2.5x 0.8mm
- Frequency Range: 10.000 - 125.000 MHz (Fundamental and 3rd Overtone modes)
- Operation Temperature: -10°C to +60°C (options: 0°C to 185°C)
- Frequency Tolerance: ±50 ppm (see options for tighter tolerances)
- Frequency Stability: ±50 ppm over temperature
- Equivalent Series Resistance (ESR): 30-80 Ohms depending on frequency
- Shunt Capacitance: 7.0 pF
- Load Capacitance: 18.0 pF
- Drive Level: 10-100 μW
- Aging: ±3 ppm first year
- Insulation Resistance: 500 MΩ at 100 V DC
- RoHS && Moisture Sensitive Level: Compliant, hermetically sealed
Buy the Buy Abracon Ultra Miniature Ceramic SMD Crystal Part Number ABM818432MHZD1XT Online
Purchase the Abracon Series ABM818432MHZD1XT ultra miniature ceramic SMD crystal online today. Its hermetically sealed, moisture-resistant package offers high stability and accuracy from 10 to 125 MHz, perfect for clock, timing, and high-density applications. The compact size of 3.2x2.5x0.8mm makes it suitable for thin, space-constrained devices. Enjoy reliable operation over wide temperature ranges with excellent frequency tolerance and stability. Order now and benefit from fast, secure online shopping for this high-performance timing component.
Order your Abracon Series ABM818432MHZD1XT ultra miniature ceramic crystal today and ensure precise timing and reliable synchronization for your electronic projects.
Frequently Asked Questions
Where can I buy ABRACON ABM818432MHZD1XT?
You can click on the BUY or RFQ button to purchase ABM818432MHZD1XT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM818432MHZD1XT?
You can download the ABM818432MHZD1XT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM818432MHZD1XT?
ABRACON
