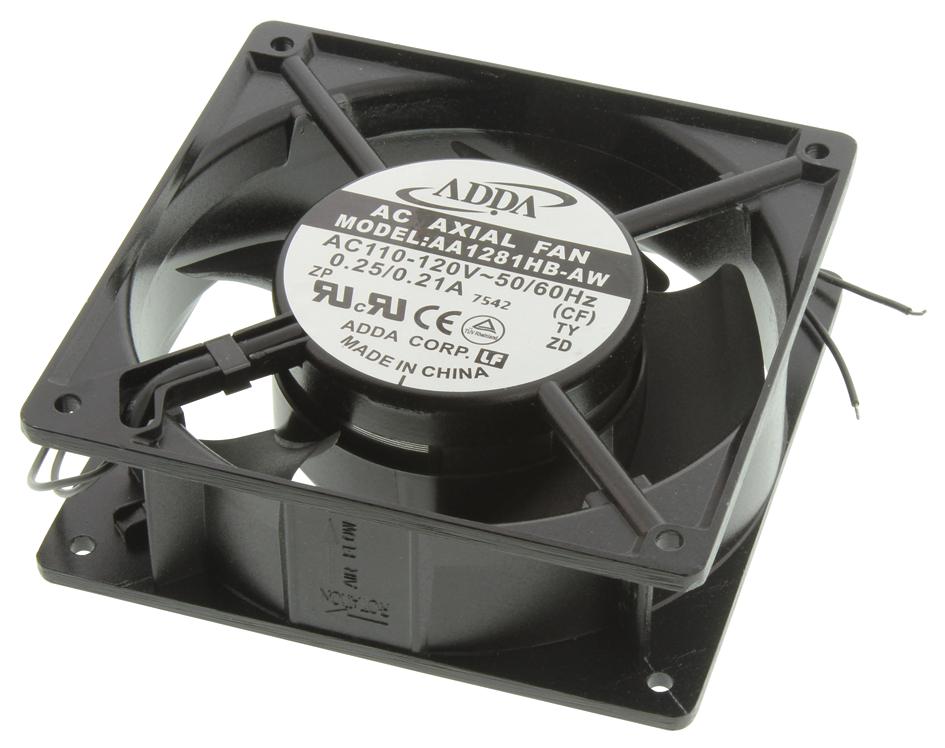

ADDA AA1281HBAW AC axial fan
The AA1281HB-AW is a high-quality AC axial fan designed for reliable cooling and ventilation in various electronic and industrial applications. It features a sturdy aluminum alloy frame, a plastic impeller, and a high-speed ball bearing system ensuring durability and smooth operation. Powered by a shaded pole induction motor, this fan rotates counter-clockwise, operating efficiently within a temperature range of -10°C to 70°C. Its UL94V-0 flammability rating guarantees safety, making it suitable for demanding environments requiring dependable airflow and safety compliance.
ADDA AA1281HBAW AC axial fan Specifications:
- Frame Size: 120 X 120 X 38 mm
- Model: AA1281HB-AT(AW)
- Type: AC axial fan
- Input Voltage: 115/50V or 115/60V
- Current: 0.25A (50Hz), 0.2A (60Hz)
- Power: 16.3W (50Hz), 14.2W (60Hz)
- Speed: 2400 RPM (50Hz), 2500 RPM (60Hz)
- Air Flow: 48 CFM
- Pressure: 43.5 mm H2O
- Noise Level: 45.0 dB(A)
- Weight: 545 grams
- Bearing Type: Ball bearing
- Material: Aluminum alloy frame, plastic impeller
- Connection: Lead wires
- Flammability Rating: UL94V-0
- Temperature Range: -10°C to 70°C
- Safety Approvals: UL, CUL, TUV, CE
- Motor Type: Shaded pole induction motor
Buy the Buy ADDA AC Fan Part Number AA1281HB-AT(AW) Online
Purchase the ADDA AA1281HB-AT(AW) AC axial fan online today to enjoy fast delivery and reliable cooling performance. This durable fan features a high-speed ball bearing system, aluminum alloy frame, and plastic impeller for maximum durability. Operates within -10°C to 70°C temperature range with UL94V-0 flammability rating for safety. Ideal for electronic enclosures, industrial cooling, or ventilation systems, ensuring effective airflow and noise control. Buy now for quality, safety, and dependable operation in all your applications.
Order your ADDA Series AA1281HB-AT(AW) high-speed axial fan today and ensure efficient cooling for your electronic or industrial projects.
