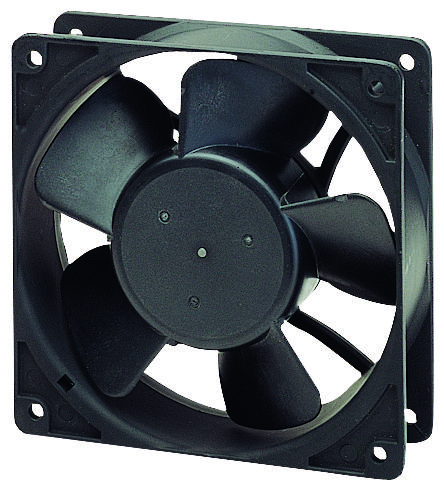

ADDA AD1212UBF51 Axial Fan
The AD1212UB-F51 is a high-performance 12V DC axial fan with a 38mm thickness and five blades. It features a plastic frame and impeller, with UL94V-0 flammability rating, ensuring safe operation. Designed for efficient airflow, it operates at 3,200 RPM with a power consumption of 7.44W and can generate a maximum pressure of 0.335 inches of water (Aq). The fan includes ball bearings, motor and polarity protection, and operates within a temperature range of -10°C to 70°C. Its wire lead is UL1007 24AWG, ensuring reliable electrical connections for cooling applications in electronic equipment.
ADDA AD1212UBF51 Axial Fan Specifications:
- Voltage: 12V DC
- Speed: 3,200 RPM
- Power Consumption: 7.44W
- Maximum Pressure: 0.335 inches of water (Aq)
- Frame Material: Plastic (UL94V-0)
- Impeller Material: Plastic
- Number of Blades: 5
- Bearing Type: Ball bearings
- Operating Temperature Range: -10°C to 70°C
- Lead Wire: UL1007 AWG 24
- Insulation Resistance: At least 10 megaohms at 500VDC
- Dielectric Strength: 1mA at 500VAC for 1 minute
- Rotation: Clockwise viewed from front
- Certifications: UL94V-0 flammability rating
Buy the Adda Series 12V Axial Fan: AD1212UBF51
Discover the Adda Series 12V axial fan AD1212UBF51, engineered for optimal cooling performance. With a 38mm thickness, five blades, and ball bearings, this fan ensures efficient airflow and durability for electronic devices. Its plastic UL94V-0 frame and impeller provide safety and reliability, while features like motor and polarity protection enhance longevity. Operating at 3,200 RPM with a power draw of just 7.44W, it delivers impressive pressure and airflow capacity. Ideal for applications requiring consistent, quiet operation and high airflow in a compact form factor. Buy online now for reliable cooling solutions.
Get Adda 12V axial fan AD1212UBF51 today—built for reliable cooling, high airflow, and long-lasting durability in electronic equipment.
Frequently Asked Questions
Where can I buy ADDA AD1212UBF51?
You can click on the BUY or RFQ button to purchase AD1212UBF51 from an authorized ADDA distributor.
How do I troubleshoot issues or seek technical support for part AD1212UBF51?
You can download the AD1212UBF51 datasheet or visit the ADDA website for support.
Who is the manufacturer of AD1212UBF51?
ADDA
