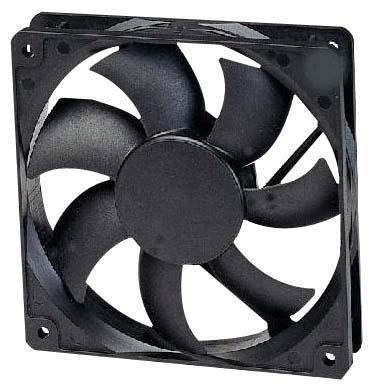

ADDA AD1248UBA71GL Axial Fan
The AD1248UBA71GL is a high-performance axial fan designed for reliable airflow in industrial cooling applications. Constructed with UL 94V-0 rated plastic for the frame and impeller, it features models with various voltage and current options, ensuring compatibility with diverse systems. Capable of delivering airflow up to 2.870 CMM, it operates quietly with noise levels around 39 dB/A. The fan incorporates ball and Hypro bearings rated for maximum durability, making it suitable for continuous operation in demanding environments. Its precise dimensions of 120x120x25 mm make it a versatile choice for cooling and ventilation needs.
ADDA AD1248UBA71GL Axial Fan Specifications:
- Dimensions: 120x120x25 mm
- Frame Material: Plastic (UL 94V-0)
- Impeller Material: Plastic (UL 94V-0)
- Lead wire: UL1007 AWG24
- Bearing Types: Ball bearing, Hypro bearing
- Maximum Bearing Rated Load: Refer to manufacturer specifications
- Model Numbers: AD1248UBA71GL, AD1248UB-A7BGL, AD1248HB-A7BGL
- System Voltage Options: 12 VDC, 24 VDC, 48 VDC
- Current Range: 0.07A to 0.19A
- Power Consumption: 1.8W to 4.4W
- Airflow: Up to 2.870 CMM (101.2 CFM)
- Static Pressure: 0.134 to 0.176 mmAq (0.0053 to 0.0069 inAq)
- Noise Level: 38 to 39 dB/A
- Performance Curve: Graphical airflow vs pressure
- Certifications: Safety approvals as per industry standards
- Temperature Rating: Operating within specified temperature range
Buy the Adda Series Axial Fan: Airflow 120x120x25 mm Model AD1248UBA71GL
Purchase the Adda AD1248UBA71GL online today to enjoy efficient cooling performance, durable plastic construction, and quiet operation. Designed for industrial applications, this axial fan offers maximum airflow of 2.870 CMM, ensuring effective ventilation. Its UL-rated materials and reliable bearings guarantee long-term durability, making it ideal for continuous use in demanding environments. Easy to install and compatible with multiple voltage options, this fan enhances your system’s cooling capabilities while reducing noise levels to improve working conditions. Order now for quick delivery!
Get Adda AD1248UBA71GL today—built for reliable airflow, low noise, and long-lasting durability in industrial cooling systems.
Frequently Asked Questions
Where can I buy ADDA AD1248UBA71GL?
You can click on the BUY or RFQ button to purchase AD1248UBA71GL from an authorized ADDA distributor.
How do I troubleshoot issues or seek technical support for part AD1248UBA71GL?
You can download the AD1248UBA71GL datasheet or visit the ADDA website for support.
Who is the manufacturer of AD1248UBA71GL?
ADDA
