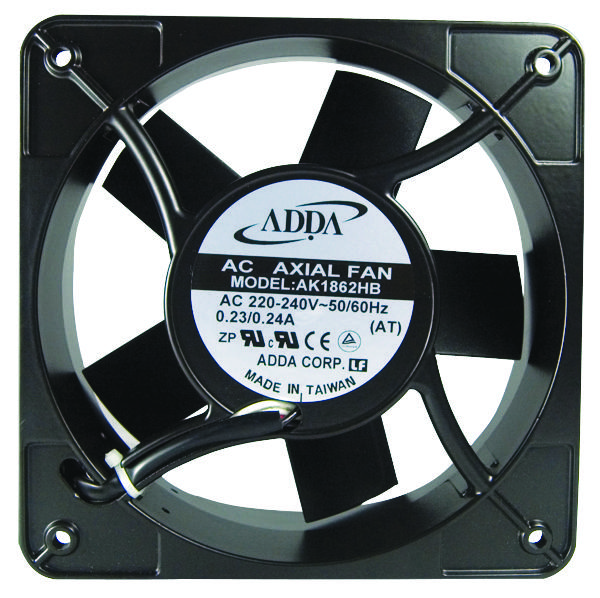

ADDA AK1862HBAT Axial Fan
The AK1862HB-AT axial fan is a robust 240VAC device designed for industrial cooling and ventilation applications. Built with a durable aluminum alloy frame and UL94V-0 plastic impeller, it features a capacitor run motor with thermal protection, ensuring safe operation. The fan operates at speeds between 2800 and 3200 RPM, delivering high airflow with maximum static pressure of 11.603 mmAq. Equipped with UL1015 AWG20 lead wires and terminal connection, it provides reliable, long-lasting performance suitable for demanding environments. Its compact, lightweight design makes it ideal for various ventilation needs.
ADDA AK1862HBAT Axial Fan Specifications:
- Frame: Aluminum Alloy
- Impeller: Plastic (UL94V-0)
- Motor Structure: Capacitor-Run Induction Motor
- Bearing Type: Ball Bearing
- Operating Temp: -10°C to 70°C
- Rated Speed: 2800 to 3200 RPM
- Maximum Pressure: 11.603 mmAq
- Maximum Airflow: 410 CFM
- Power Consumption: 46.5 to 51.1 Watts
- Voltage: 240VAC
- Lead Wire: UL1015 AWG20
- Noise Level: Measured at 1 meter distance
- Motor Protection: Thermal
- Connections: Terminal wiring
- Safety Approvals: UL Listed
Buy the Ly Series Axial Fan: AK1862HBAT
Purchase the Ly Series AK1862HBAT axial fan online today to ensure your cooling and ventilation needs are met with high-performance reliability. Designed with durable aluminum alloy frames and UL94V-0 plastic impellers, this 240VAC fan offers high airflow up to 410 CFM at speeds of 2800-3200 RPM. Equipped with thermal motor protection and UL-rated wiring, it guarantees safety and longevity. Ideal for industrial, commercial, and equipment cooling applications, buying online provides convenience, fast delivery, and the assurance of genuine, high-quality parts for continuous operation.
Buy Ly Series AK1862HBAT axial fan now and experience unmatched durability, high airflow, and reliable thermal protection for demanding industrial environments.
