AEMC INSTRUMENTS 101745 AC Current Probe
The AC Current Probe Model MN185 is a small, rugged, and versatile instrument designed for precise AC current measurements from 50mA to 150A. Its unique 'clothes pin' shape allows easy access in tight spaces like breaker or controller panels, making it excellent for electrical utility, HVAC, and industrial maintenance. It offers true RMS measurement capability, high accuracy with minimal phase shift, and can connect to DMMs or recorders. Constructed from durable polycarbonate and featuring safety compliant insulated connectors, this probe ensures reliable, safe, and accurate testing in demanding environments.
AEMC INSTRUMENTS 101745 AC Current Probe Specifications:
- Nominal Range 150A
- Measurement Range 50mA to 150A
- Transformation Ratio 1000:1
- Output Signal AmAac/Aac (120mA @ 120A)
- Accuracy (120A Range) 1% of Reading + 0.01A (50mA to 100A), 1.5% + 0.01A (100 to 120A)
- Phase Shift <3.5° (1 to 100A/ 50 to 60Hz)
- Frequency Range 30Hz to 10kHz
- Load Impedance Max 5Ω
- Jaw Opening 0.78 inches (20mm)
- Maximum Conductor Size 0.47 inches (12mm)
- Dimensions 1.26 x 4.53 x 0.87 inches (32 x 115 x 22mm)
- Weight 5.6 oz (160g)
- Material Polycarbonate (UL94 VO)
- Operating Temperature -25°C to +50°C (13°F to 122°F)
- Storage Temperature -40°C to +80°C
- Humidity 85% RH (10-35°C), test conditions
- Safety 30V max between output & ground; 3kV dielectric isolation

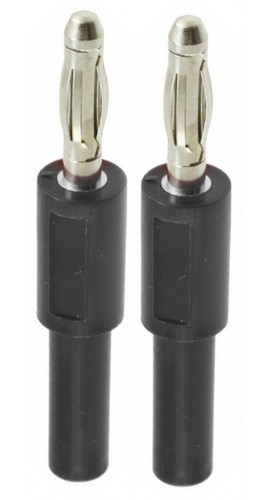

- Jacks Two safety banana jacks (4mm)
Buy the AEMC Series MN185 AC Current Probe: 101745
Enhance your electrical testing capabilities with the AC Current Probe Model MN185. This compact, tough, and easy-to-use device provides accurate measurements from 50mA to 150A, ideal for breaker panels, controllers, and outlets. Its unique 'clothes pin' shape fits into tight spaces and ensures safe operation. Compatible with DMMs, it offers true RMS readings for precise AC current measurement. Built from durable polycarbonate, it guarantees reliable performance in industrial, HVAC, and utility applications. Buy online today for confident, safe testing.
Order your AEMC Series MN185 AC current probe today and enjoy reliable, precise measurements with top safety and durability for electrical testing.
Frequently Asked Questions
Where can I buy AEMC INSTRUMENTS 101745?
You can click on the BUY or RFQ button to purchase 101745 from an authorized AEMC INSTRUMENTS distributor.
How do I troubleshoot issues or seek technical support for part 101745?
You can download the 101745 datasheet or visit the AEMC INSTRUMENTS website for support.
Who is the manufacturer of 101745?
AEMC INSTRUMENTS
