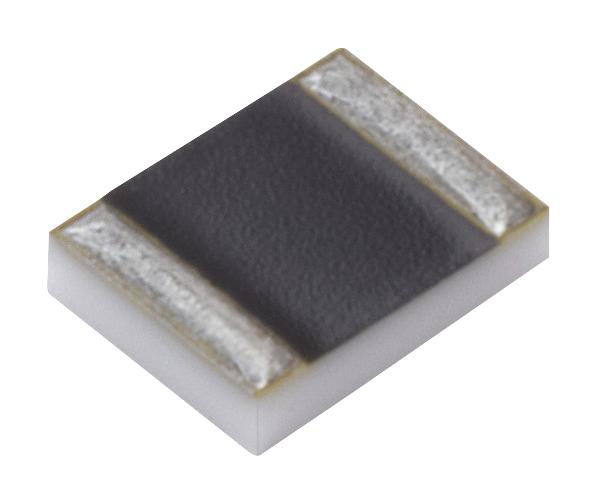

ALPHA ELECTRONICS RBDJR0500FL Precision Current Sense Resistor
This ultra-precision SMT current sensing resistor series includes RBD, RBF, and RBH models designed for high accuracy and thermal stability. These flip-chip resistors feature ceramic substrates, high-purity alumina, and metal foil construction, providing excellent performance in industrial and electronic applications. The devices offer resistance ranges from 0.01 to 0.1 ohms, with TCR values as low as ±42 ppm/°C, rated power up to 0.5 W to 5 W, and operating temperatures from 65°C to 155°C. They are RoHS compliant and suitable for precise current measurement in various electronic systems.
ALPHA ELECTRONICS RBDJR0500FL Precision Current Sense Resistor Specifications:
- Resistance Range: 0.01 to 0.1 ohms
- Resistance Tolerance: ±0.5%, ±1%, ±2%
- TCR (ppm/°C): ±42
- Rated Power: 0.5 W to 5 W depending on model
- Operating Temperature: 65°C to 155°C
- Maximum Operating Temperature: 70°C
- Thermal Shock Resistance: 65°C/30 min to +155°C/30 min, 5 cycles
- Dielectric Withstanding Voltage: AC 200V for 1 min
- Insulation Resistance: >10,000 MΩ at DC 100V
- Construction: Ceramic substrate, metal foil, solder layers
- Package: Tape and reel, up to 4,000 pieces per reel
- RoHS Compliant: Yes
- Soldering: Reflow at peak 250°C for 10 sec, wave, and dip soldering recommended
- Applied Power: Keep below 2W at 70°C when mounted on metal board
Buy the Alpha Electronics RBD5000F – Reliable Current Sense Resistor for Industrial Applications
Order Alpha Electronics RBD5000F today for high-accuracy current measurement in industrial electronic systems. Designed with ceramic substrates and metal foil, these resistors ensure excellent stability, low TCR, and RoHS compliance. Perfect for demanding applications requiring reliable performance and thermal stability. Their compact flip-chip design facilitates easy mounting and integration into current sensing circuits. With features like high insulation resistance, wide temperature range, and robust construction, these resistors enhance device reliability. Purchase online now for fast delivery and superior quality in your electronic projects.
Get Alpha Electronics RBD5000F today—built for precision and long-lasting durability in electronic systems.
Frequently Asked Questions
Where can I buy ALPHA ELECTRONICS RBDJR0500FL?
You can click on the BUY or RFQ button to purchase RBDJR0500FL from an authorized ALPHA ELECTRONICS distributor.
How do I troubleshoot issues or seek technical support for part RBDJR0500FL?
You can download the RBDJR0500FL datasheet or visit the ALPHA ELECTRONICS website for support.
Who is the manufacturer of RBDJR0500FL?
ALPHA ELECTRONICS
