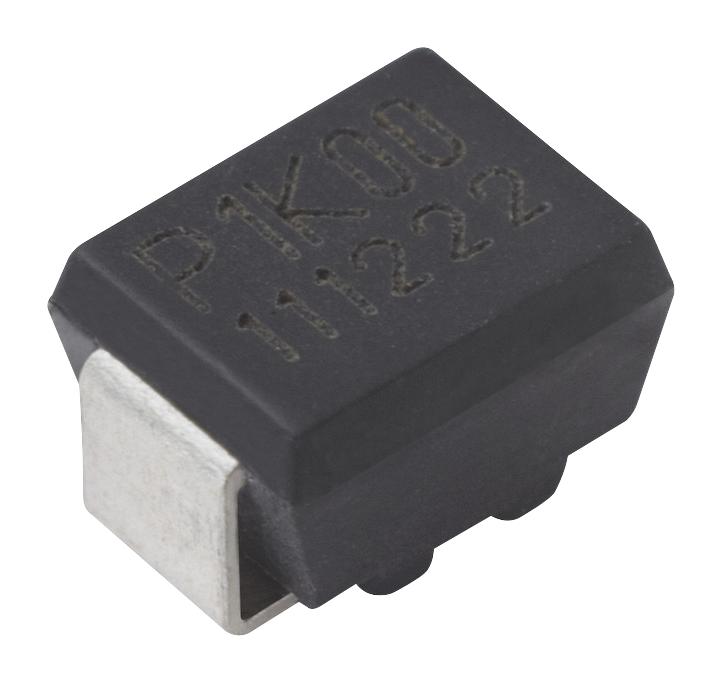

ALPHA ELECTRONICS MPP30R000B High-Precision SMT Resistor
The MPP series offers ultra high-precision SMT resistors utilizing Z-Foil technology, characterized by a low TCR of 0.05 ppm/°C and resistance tolerance as tight as +0.01%. Suitable for demanding applications, these resistors sustain operation up to 125°C and feature exceptional stability, with load life stability of +0.005% over 2000 hours at rated power. Their compact molded design with J-lead terminals ensures reliable performance in high-frequency circuits, with power ratings of 200 mW for MPP. Ideal for precision electronics requiring minimal drift and high reliability.
ALPHA ELECTRONICS MPP30R000B High-Precision SMT Resistor Specifications:
- Resistance Range: 55°C to +125°C
- Maximum Rated Operating Temperature: 125°C
- Working Temperature Range: 65°C to +175°C
- Maximum Working Voltage: 50V (MPP), 100V (MQP)
- Maximum Working Current: 350 mA
- Resistance Tolerance: +0.01%
- TCR: 0.05 ppm/°C typical (0°C to +60°C), 0.2 ppm/°C (-55°C to +125°C, +25°C ref.)
- Power Rating: 200 mW (MPP), 250 mW (MQP) at +70°C
- Load Life Stability: +0.005% at 70°C, 2000h at rated power
- Dielectric Withstanding Voltage: AC 200V, 1 min
- Insulation Resistance: Over 10,000 MΩ at DC 100V, 1 min
- Temperature Coefficient of Resistance: 0.05 ppm/°C (typical)
- Resistance Tolerance: to +0.01%
- Resistors are RoHS compliant and molded with J-lead terminals for high reliability
- Suitable for high-frequency applications, with stable performance in demanding precision circuits.
- Designed for electronics requiring minimal drift and durable operation in industrial environments.
- Packaging includes tape and reel options, with detailed dimensions for automated assembly.
Buy the Alpha Electronics Series Z-Foil Ultra High-Precision SMT Resistor: MPP30R000B
Order the Alpha Electronics MPP30R000B high-precision SMT resistor online today to upgrade your electronic designs. Featuring unmatched stability with a TCR of 0.05 ppm/°C, this resistor offers resistance tolerance of +0.01%, making it perfect for high-frequency, low-noise circuits. Its robust construction ensures long-term reliability and consistent performance across temperature ranges up to 125°C. Ideal for demanding industrial applications, this resistor's compact molded form with J-lead terminals simplifies integration. Enhance your electronic projects with precision components that deliver superior performance and durability — buy now!
Buy Alpha Electronics MPP30R000B now and experience unmatched reliability and precision in high-frequency electronics with low TCR and tight resistance tolerance.
