AMPHENOL INDUSTRIAL H4CMC4DI Photovoltaic Solar Connector
The H4CMC4DI is a high-quality, robust solar connector designed for photovoltaic systems. It features weather-resistant construction, high electrical performance, and easy installation, ensuring reliable connections in harsh environments. Compatible with Amphenol's Helios H4 series, it supports high current and voltage ratings, making it suitable for residential, commercial, and utility-scale solar projects. The connector's design guarantees a secure, waterproof connection with excellent durability and resistance to environmental influences, ensuring long-term operational stability and safety in solar power systems.
AMPHENOL INDUSTRIAL H4CMC4DI Photovoltaic Solar Connector Specifications:
- Connector Type: Female PV cable connector
- Gender: Female
- Cable Size: 2.5 mm² / 14 AWG
- Rated Voltage: 1000V (IEC & UL)
- Rated Current: 44A (6.0mm² / 10 AWG), 65A (10.0mm² / 6 AWG)
- Test Voltage: 6kV for 1 minute, 1.2/50 μs impulse (IEC)
- Contact Resistance: 0.30mΩ for S&F contact, 0.25mΩ for machined contact
- Contact Material: Copper, tin-plated
- Insulation Material: Polycarbonate (PC)
- Locking Mechanism: Snap-lock with unlocking tool
- Cable Strain Relief: Compression gland with ratcheting nut
- Degree of Protection: IP68
- Safety Class: 0
- Pollution Degree: 2
- Overvoltage Category: Class II
- Flame Class: UL94 V0
- Ambient Temperature Range: -40°C to +70°C

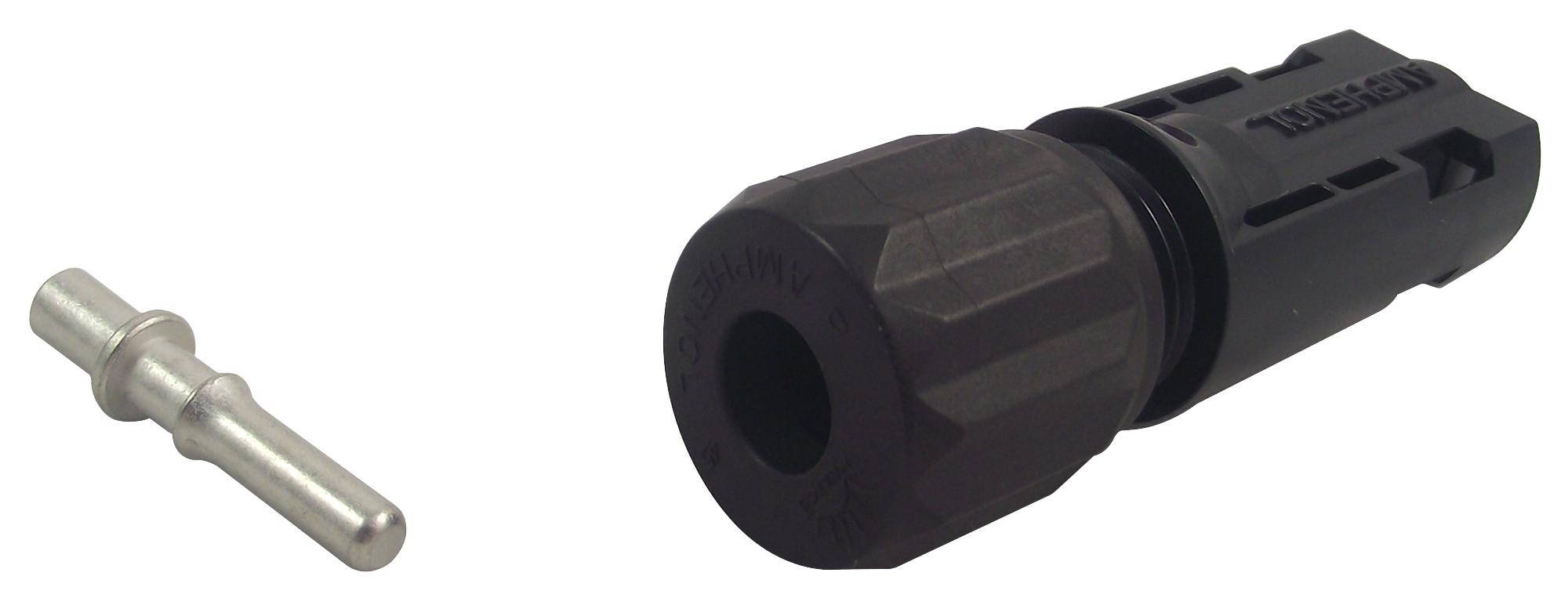

Buy the Buy Amphenol H4CMC4DI Solar Connector Part Number H4CMC4DI Online
Enhance your solar installations with the H4CMC4DI photovoltaic connector, engineered for durability and high electrical performance. Its weather-resistant design ensures long-term reliability in harsh environments, supporting high current and voltage standards required for residential, commercial, and utility-scale solar projects. Easy to install, waterproof, and compliant with UL and IEC certifications, this connector provides secure connections for optimal power transfer and system safety. Upgrade your solar system with confidence by ordering the H4CMC4DI online today for hassle-free installation and long-lasting performance.
Buy Amphenol H4CMC4DI solar connector now and experience unmatched reliability and performance in PV systems with secure waterproof connections.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL H4CMC4DI?
You can click on the BUY or RFQ button to purchase H4CMC4DI from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part H4CMC4DI?
You can download the H4CMC4DI datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of H4CMC4DI?
AMPHENOL INDUSTRIAL
