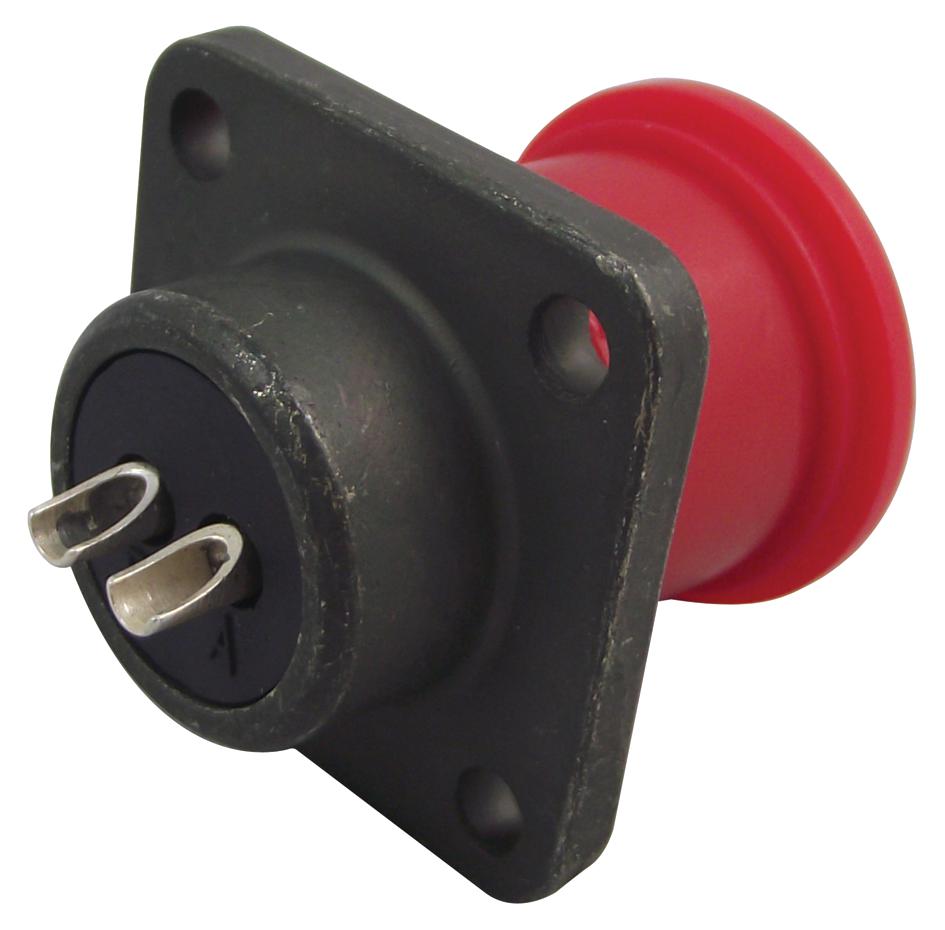

AMPHENOL INDUSTRIAL MS3102R10SL4P Military Circular Connector
The MS3102R10SL-4P is a rugged military-grade circular connector with two solder cup contacts made of copper alloy and silver plating. It features a durable aluminum alloy shell finished with olive drab chromate over cadmium plating, providing outstanding corrosion resistance. Designed for harsh environments, it includes neoprene inserts for moisture sealing and vibration resistance. The connector supports threaded coupling for secure attachment, with a 10SL-4 insert arrangement, suitable for military, aerospace, and shipboard applications requiring high durability, environmental resistance, and secure electrical connections.
AMPHENOL INDUSTRIAL MS3102R10SL4P Military Circular Connector Specifications:
- Shell Material: Aluminum alloy with olive drab chromate coating over cadmium plating
- Contacts: 2, solder cup type, copper alloy, silver plated
- Contact Resistance: Low, ensuring reliable conductivity
- Insulation Resistance: >1000 MO, according to VG95319
- Test Voltage: 1600 Vrms
- Operating Temperature: -55°C to +125°C
- IP65: Dust tight and water resistant
- Salt Spray Resistance: 500 hours
- Mating Cycles: Minimum 500
- Shell Size: 10SL
- Contact Arrangement: 10SL-4
- Inserts: 10SL-4 configuration
- Coupling Torque: Max 1.7 Nm (closing), Min 0.15 Nm (opening)
- Gage: Refer to VG95234, part 1
- Wire Stripping Length: 6.2 mm
Buy the Cannon Series MIL-DTL 5015 Circular Connector: MS3102R10SL4P
Purchase the Cannon MS3102R10SL4P online for high-performance military-grade circular connections ideal for aerospace, defense, and marine applications. This durable connector features a corrosion-resistant aluminum alloy shell with olive drab chromate plating, ensuring long-lasting environmental protection. Equipped with two solder cup contacts made of copper alloy and silver plating, it guarantees low contact resistance and reliable conductivity even in harsh conditions. The connector supports threaded coupling, safe mating, and high vibration resistance. Order now for secure, weather-resistant electrical connections critical to mission success.
Buy Cannon MS3102R10SL4P now and experience unmatched durability, reliable environmental resistance, and secure military-grade connections.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL MS3102R10SL4P?
You can click on the BUY or RFQ button to purchase MS3102R10SL4P from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part MS3102R10SL4P?
You can download the MS3102R10SL4P datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of MS3102R10SL4P?
AMPHENOL INDUSTRIAL
