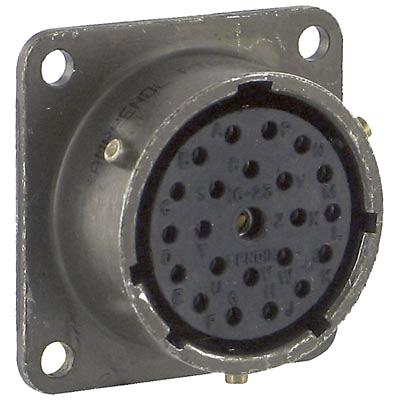

AMPHENOL INDUSTRIAL PT02A1623S Hermetic Connector
The PT02A1623S is a miniature cylindrical connector featuring a hermetic sealed box mounting design with solder contacts. It offers robust environmental protection with a fused glass seal, high current capacity up to 17 amps, and dielectric withstand voltage ratings of 1500 volts RMS at sea level. Manufactured with aluminum shells tin plated for corrosion resistance, it supports multiple insert arrangements, including coaxial and power options. Suitable for high-reliability applications in harsh environments, the connector retains excellent electrical properties under extreme temperature, vibration, and shock conditions, and is compatible with various accessories like strain relief clamps and dust caps.
AMPHENOL INDUSTRIAL PT02A1623S Hermetic Connector Specifications:
- Shell Material: Aluminum, Tin plated
- Shell Size: 6 thru 22
- Contact Rating: 17 Amps per contact
- Voltage Rating: Up to 1500 VAC RMS at sea level
- Dielectric Withstanding Voltage: 1500 volts RMS, Service Rating I; 2300 volts RMS, Service Rating II
- Current: 5.0 amps (size 20), 10 amps (size 16), 17 amps (size 12)
- Leakage: Less than 1.0 x 10^-8 cc/sec at 15 psi differential
- Temperature Range: -55°C to +125°C
- Vibration: Exceeds MIL-E-5272 Procedure II
- Shock Resistance: 100 G's
- Corrosion Resistance: Aluminum shell with tin plating, hermetically sealed with fused glass inserts
- Insert Availability: Multiple arrangements, including coaxial and power contacts
- Accessories: Strain relief clamps, dust caps, mounting gaskets
Buy the Amphenol Series Hermetic PT02A1623S: Connectors
Get the reliable Hermetic PT02A1623S miniature cylindrical connector from Amphenol online today. Designed for high durability in harsh environments, it features a sealed glass insert to prevent moisture ingress, supports high current capacity of up to 17A, and is rated for 1500V RMS. The aluminum shell offers corrosion resistance with tin plating, and multiple insert configurations provide versatile application options. Perfect for aerospace, military, and industrial use where dependability and environmental sealing are critical.
Order your Amphenol PT02A1623S hermetic connector today and ensure reliable performance in extreme environmental conditions for your critical applications.
