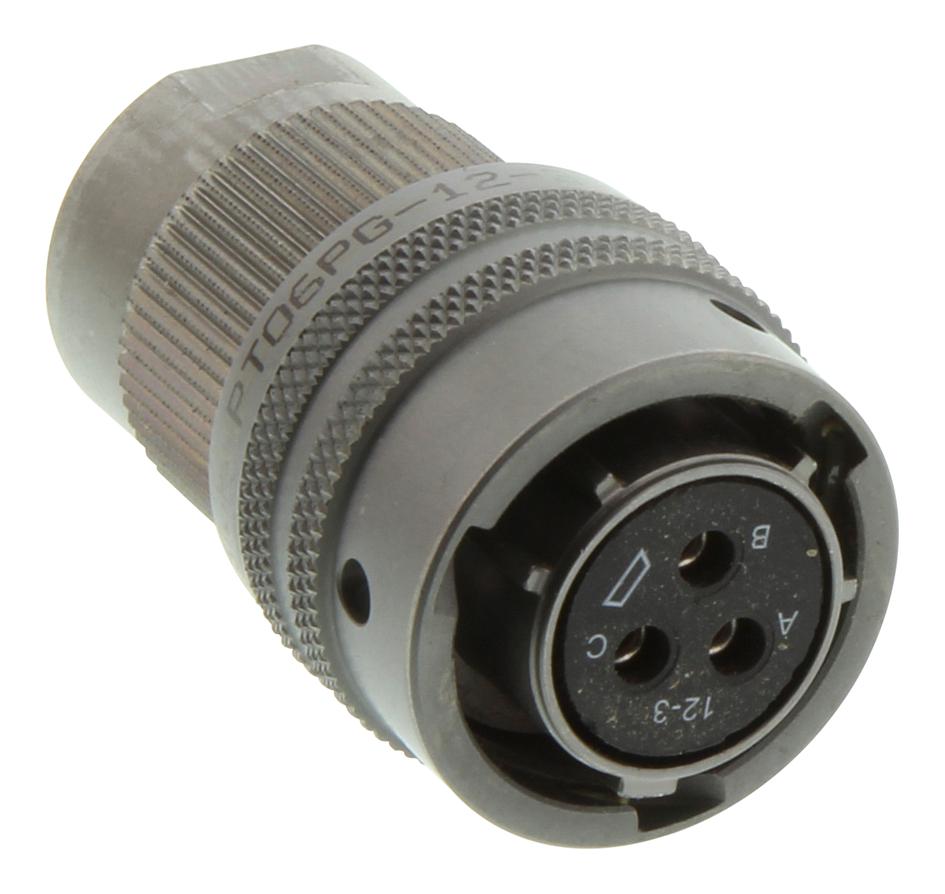

AMPHENOL INDUSTRIAL PT06PG123S072 Miniature Cylindrical Connector
Amphenol Miniature Cylindrical PT Series connectors feature high reliability, environmental sealing, and high-performance power, coax, and PCB contacts. Crafted from durable aluminum shells with optional hermetic sealing, they support operating temperatures from –55°C to +125°C and voltages up to 1000 VAC at sea level. These versatile connectors come in various styles including wall, cable, box mounting, straight, and 90-degree plugs, with options for crimp or solder terminations. They are ideal for military, aerospace, industrial, and geophysical use, supporting diverse insert arrangements, high dielectric strength, moisture barrier, and optional RoHS compliant finishes including cadmium, anodic coating, nickel, and black zinc cobalt. Power contacts handle currents up to 17A, and coaxial contacts support shielded signals with voltage ratings up to 1300 VAC, ensuring dependable performance even in harsh environments.
AMPHENOL INDUSTRIAL PT06PG123S072 Miniature Cylindrical Connector Specifications:
- Shell Material: Aluminum
- Operating Temperature: –55°C to +125°C
- Voltage Rating: Up to 1000 VAC at sea level
- Power Contact Current: Up to 17A
- Contact Types: Power, coaxial, PCB, thermocouple
- Contact Resistance: 5 milliohms (typical)
- Dielectric Withstanding Voltage: 1500–2300 VAC RMS
- Moisture Sealing: Grommet and clamp design, neoprene gasket
- Finish Options: Cadmium, anodic coating, electroless nickel, black zinc cobalt
- Shell Sizes: 6 to 24
- Insert Arrangements: Multiple configurations (pages 4-10)
- Sealing: Environmental, hermetic (glass fusion)
- Optional RoHS compliant finishes: alumilite®, black zinc cobalt
- Applications: Military, aerospace, geophysical, industrial, automation
- Certifications: MIL-DTL-26482 Series 1 qualified, UL recognition for some styles
Buy the Amphenol Series PT: Miniature Cylindrical Connectors PartNumber PT06PG123S072
Experience the durability, high performance, and environmental sealing of Amphenol Miniature Cylindrical Connectors. Designed for military, aerospace, and industrial use, these connectors offer a wide range of styles including hermetic, power, coax, PCB, and thermocouple contacts. Support operating temperatures from –55°C to +125°C and voltages up to 1000 VAC. Their resilient neoprene gaskets, robust aluminum shells, and optional RoHS finishes ensure excellent moisture resistance, electrical isolation, and longevity even in harsh conditions. Ideal for optimized harnesses, high-reliability systems, and demanding applications requiring maximum flexibility and performance.
Buy Amphenol PT06PG123S072 miniature cylindrical connector now and experience unmatched reliability and performance in challenging industrial environments.
