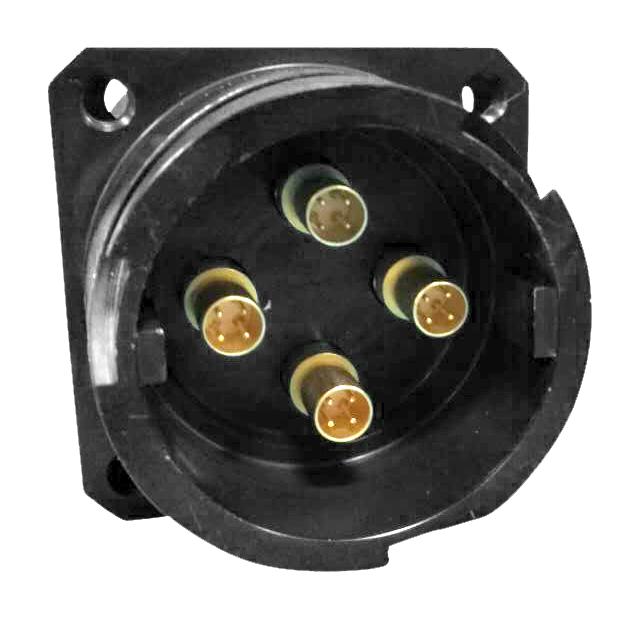

AMPHENOL INDUSTRIAL QX420P100 Cable Assembly
The assembly comprises a plug and receptacle system designed for industrial cable connections, featuring detailed steps for wire preparation, crimping, and insertion into shells, with torque specifications for components. It includes plug and receptacle components such as shells, inserts, ferrules, and grommets, ensuring secure and reliable electrical connections in industrial environments. The assembly process emphasizes proper insulation stripping, shielding, and crimping, adhering to safety standards with correct torque application for grommets and adapters. Suitable for industrial automation and equipment requiring high durability and precision in connector assembly.
AMPHENOL INDUSTRIAL QX420P100 Cable Assembly Specifications:
- Connector Type: Plug and Receptacle system
- Contact Material: Not specified
- Wire Preparation: Strip insulation 17.5mm for shield, 4mm for individual wires
- Crimping: Use recommended tools, ensure seating, visual inspection
- Shell Material: Not specified
- Shielding: Ferrule for shielding layer
- Grommet: Fits into receptacle shell, tightened with specified torque
- Retainer: Inserted and tightened with screw
- Assembly steps: Wire insertion, crimping, inserting contacts into shells, tightening screws
- Torque for grommet and adapter: 39.5~42.3 Nm or 50.8~53.6 Nm depending on part number
- Compliance: Ensures reliable electrical connection with secure layer and proper insulation
- Application: Industrial automation, machinery, electronic equipment
Buy the Amphenol QX420P100 – Reliable Cable Assembly for Industrial Applications
Purchase the Amphenol QX420P100 cable assembly online today to ensure secure, durable, and efficient electrical connections for your industrial projects. This assembly incorporates high-quality components including shells, ferrules, and grommets, designed for precise assembly and long-term performance. With detailed instructions for insulation stripping, crimping, and assembly, it guarantees a reliable connection adhering to industry standards. Order now to benefit from fast shipping, expert support, and the assurance of an industrial-grade connector that meets your high-performance requirements.
Buy Amphenol QX420P100 now and experience unmatched reliability and high-quality electrical connections in industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL INDUSTRIAL QX420P100?
You can click on the BUY or RFQ button to purchase QX420P100 from an authorized AMPHENOL INDUSTRIAL distributor.
How do I troubleshoot issues or seek technical support for part QX420P100?
You can download the QX420P100 datasheet or visit the AMPHENOL INDUSTRIAL website for support.
Who is the manufacturer of QX420P100?
AMPHENOL INDUSTRIAL
