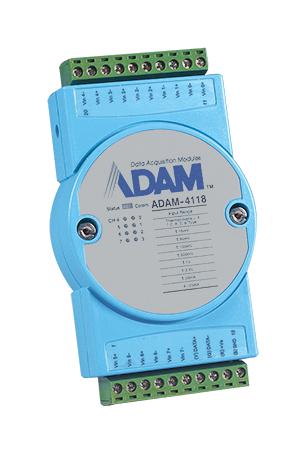

Advantech Automation ADAM4118C Thermocouple Input Module
The ADAM-4118 is a robust 8-channel thermocouple input module designed for industrial environments, supporting various thermocouple types and voltage/current input ranges. It features 16-bit resolution, sampling rates up to 100 samples/sec, and built-in TVS/ESD protection for enhanced durability. With certifications including FCC, CE, and UL, it operates efficiently at 0.5W power consumption, providing high accuracy and reliable burnout detection. Suitable for precise temperature measurement in automation, control systems, and industrial monitoring applications.
Advantech Automation ADAM4118C Thermocouple Input Module Specifications:
- Channels: 8 differential thermocouple inputs with independent configuration
- Input Impedance Voltage: 20 MQ, Current: 1202
- Input Types: T/C, mV, V, mA
- Input Range: Thermocouple, Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, 2.5 V, Current: ±20 mA, 4~20 mA
- Resolution: 16-bit
- Sampling Rate: 10/100 samples/sec (selected by Utility)
- Accuracy: Voltage mode: ±0.1%, Current mode: ±0.2%
- Built-in TVS/ESD Protection
- Power Consumption: 0.5W @ 24 V
- Certifications: FCC, CE, UL
- Operating Temperature: -40°C to 85°C
- Protection: Overvoltage up to 60 Voc, High common mode up to 200 Voc
- Isolation Voltage: 3000 Voc
- Communication Interface: RS-485, micro USB
- Supported Protocols: ASCII, Modbus/RTU
- Power Supply: 10-48 V unregulated
- Dimensions and Physical: Plug-in terminal blocks, robust enclosure, typical installation for industrial settings
Buy the Adam 4118 – Reliable Thermocouple Input Module for Industrial Applications
Purchase the Adam 4118 thermocouple input module online today—engineered for industrial environments with high accuracy, 16-bit resolution, and robust protection. This 8-channel module offers reliable temperature data acquisition, supporting various thermocouple types and voltage/current inputs. Its certified design ensures safety and durability, making it ideal for automation, process control, and industrial monitoring. Order now to enhance your automation system with a high-performance, dependable thermocouple measurement solution tailored for demanding industrial applications.
Get Adam 4118 today—built for precision and long-lasting durability in temperature measurement and automation systems.
Frequently Asked Questions
Where can I buy Advantech Automation ADAM4118C?
You can click on the BUY or RFQ button to purchase ADAM4118C from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part ADAM4118C?
You can download the ADAM4118C datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of ADAM4118C?
Advantech Automation
