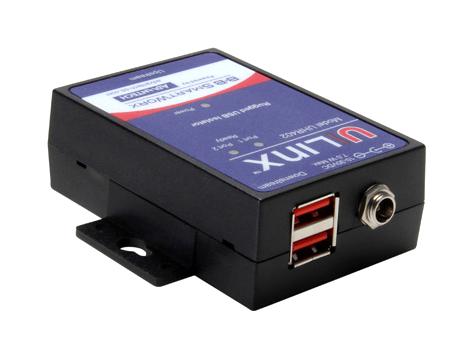

Advantech Automation BBUHR402 Rugged USB Isolator
The ruggedized USB isolator provides reliable 4kV isolation between USB ports, ensuring data integrity and protection from ground loops in harsh industrial environments. It features high retention USB connectors suitable for high vibration applications, along with ESD protection of 15 kV Air. Designed for heavy-duty use, it operates with an external power supply from 10 to 30 VDC, supporting up to 500 mA power output per downstream port. Ideal for industrial automation, motor control, and welding environments requiring robust EMI resilience.
Advantech Automation BBUHR402 Rugged USB Isolator Specifications:
- USB Standards: USB 1.1 & 2.0 (12 Mbps)
- Isolation Voltage: 4 kV between upstream and downstream ports
- ESD Protection: 45 kV Air, 8 kV Contact
- Port Type: Upstream Type B Female, downstream Type A Female
- Power Supply: External, 10 to 30 VDC, included US, EU, UK blades
- Power Consumption: UHR401 – 4 Watts, UHR402 – 7 Watts
- Downstream Power Output: Up to 500 mA per port
- Enclosure: IP30, plastic
- Dimensions: 7.9 x 5.4 x 2.7 cm (3.1 x 2.1 x 1.1 inches)
- Weight: 0.15 lb (80 g)
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 0-95%, non-condensing
- Certifications: FCC, CE, KCC, RoHS, WEEE
- Shock & Vibration Resistance: 50G peak, 4G vibration
- Standards for EMC and immunity: EN 55032, EN 55024, IEC 61000 series
Buy the Buy Advantech Rugged USB Isolator Part Number BB-UHR402 Online
Purchase the Advantech Series BB-UHR402 rugged USB isolator online today and secure your industrial communications. Equipped with 4kV isolation, high retention USB connectors, and certified to meet heavy EMC standards, this device ensures data integrity and equipment safety in demanding environments such as motor control, welding, and variable frequency drives. Its robust design allows operation in extreme temperatures and vibrations, supported by an external power supply and multiple safety features, delivering dependable performance in critical industrial applications. Upgrade your system now with this industrial-grade isolation device.
Order your Advantech Series BB-UHR402 rugged USB isolator today and enhance your industrial data communication with reliable, EMI-resistant protection.
