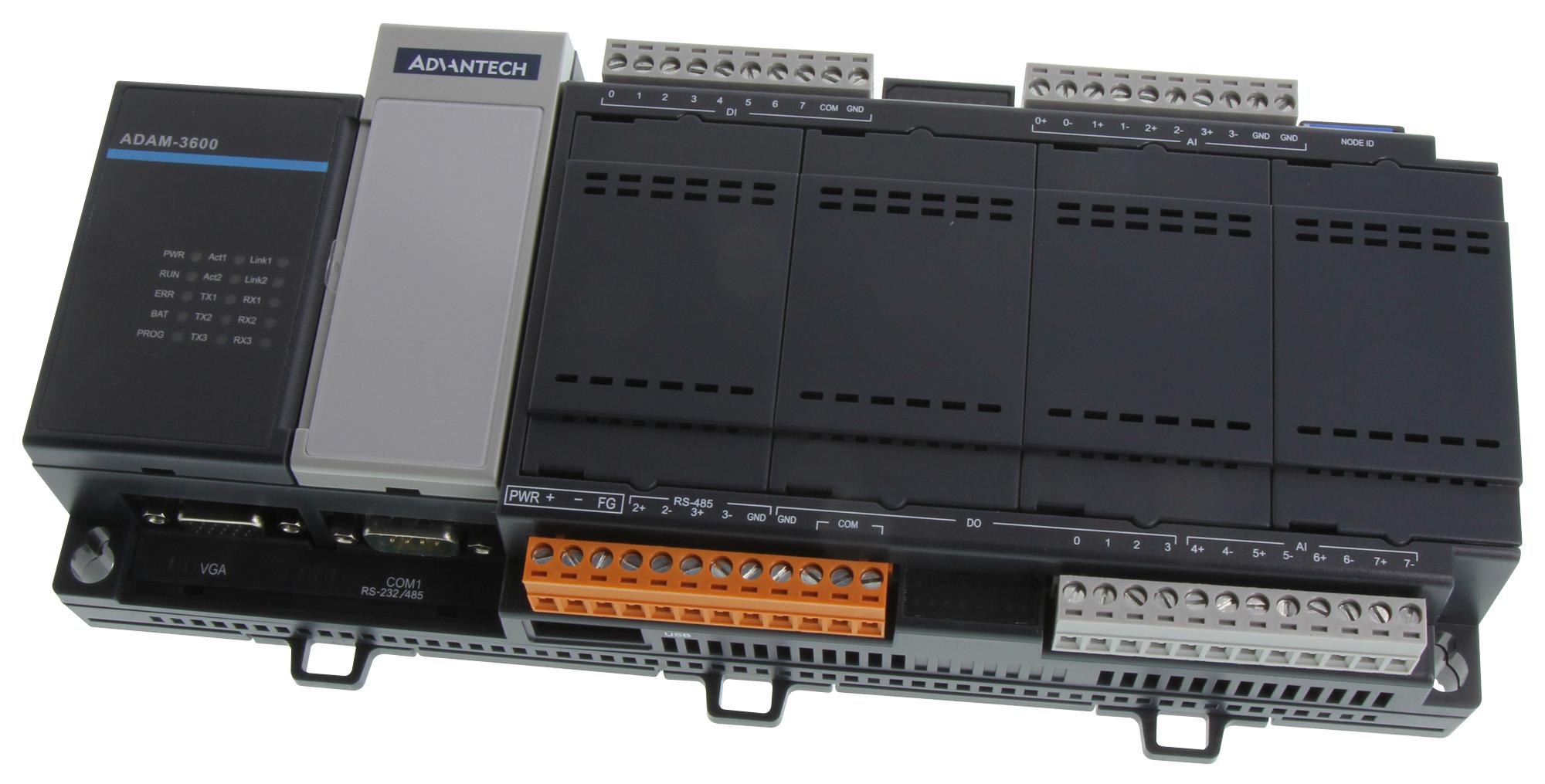

Advantech Automation ESRPPCSADAM3600 Industrial Edge Data Acquisition Device
The ESRP-PCS-ADAM3600 is a modular, industrial edge solution designed to optimize equipment efficiency through real-time data collection, analysis, and cloud connectivity. Featuring multiple communication protocols, local data storage, and remote management capabilities, it supports various industrial environments such as boilers, compressors, and power systems. Equipped with Cortex-A8 processor, Real-Time Embedded Linux, and LTE/3G/2G options, it ensures reliable operation across a temperature range of -40°C to 70°C. Certified for CE and FCC Class A, it offers versatile installation options for industrial monitoring and control applications.
Advantech Automation ESRPPCSADAM3600 Industrial Edge Data Acquisition Device Specifications:
- Processor: Cortex-A8, 600MHz
- Operating System: Embedded Linux, kernel v4.9.69
- Memory: 256MB RAM, 32KB Backup Memory
- Data Storage: 4GB SD card
- Connectivity: 2x LAN, 3x COM, LTE/3G/2G (optional), WLAN, Bluetooth
- Display Interface: VGA
- Power Input: 10-30VDC
- Physical Mounting: DIN-rail or wall mount
- Operating Temperature: -40°C to 70°C
- Certifications: CE, FCC Class A
- Supported Protocols: DNP3.0, IEC-60870-5-104, Modbus RTU/TCP, BACnet/IP
- Maximum Tags: 3000 (system), 500 (data monitor)
- Additional Features: OPC-UA client & server, VPN tunneling, NTP/SNTP/GPS time sync
Buy the Industrial Edge Solution Series ESRP-PCS-ADAM3600: ESRPPCSADAM3600
Enhance your industrial monitoring with the ESRP-PCS-ADAM3600. This versatile, modular solution supports multiple communication protocols, local data storage, and cloud connectivity. With a robust Cortex-A8 processor and embedded Linux OS, it offers reliable operation across a wide temperature range. Easy installation via DIN-rail or wall mount makes it suitable for various industrial environments like power systems and chillers. Certified for CE and FCC, it provides comprehensive features for real-time data collection, remote management, and efficient equipment operation.
Order your industrial edge data acquisition ESRP-PCS-ADAM3600 today and enhance your facility monitoring with reliable real-time analytics and cloud connectivity.
Frequently Asked Questions
Where can I buy Advantech Automation ESRPPCSADAM3600?
You can click on the BUY or RFQ button to purchase ESRPPCSADAM3600 from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part ESRPPCSADAM3600?
You can download the ESRPPCSADAM3600 datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of ESRPPCSADAM3600?
Advantech Automation
