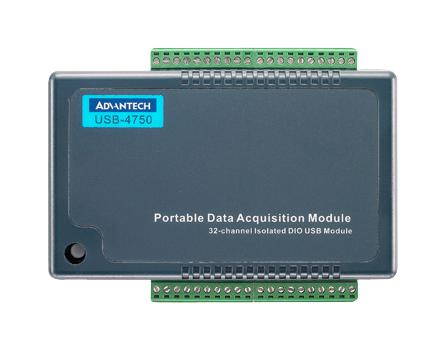

Advantech Automation USB4750BE Digital I/O Module
This 32-channel isolated digital I/O USB module is compatible with USB 1.1 and 2.0 standards and is bus-powered for easy setup. It features 16 isolated digital input channels and 16 isolated digital output channels, each with high voltage isolation of 2,500VDC to ensure safety and noise immunity. The output channels can sink up to 200mA, making it suitable for various control applications. The module supports input voltage ranges from 5V to 60VDC on its input channels. It also offers interrupt handling and timer/counter capabilities for precise control and measurement. Designed for DIN rail mounting, it includes a lockable USB cable for connection security.
Advantech Automation USB4750BE Digital I/O Module Specifications:
- Channels: 16 isolated digital inputs, 16 isolated digital outputs
- Input Voltage Range: 5V to 60V DC
- Isolation Protection: 2,500 VDC on all channels
- Output Current: 200 mA per channel, total 1.1 A maximum
- Relay Outputs: 8 Form C relays, contact rating 0.254 @ 240 VAC, 1A
- Input Response Time: 50 μs for opto-isolators
- Switching Voltage: up to 250 VAC, 220 VDC
- Dimensions: 132 x 80 x 32 mm (5.2
- Power Consumption: Typical 5 V at 200 mA; Max 5 V at 350 mA
- Operating Temperature: 0°C to 60°C
- Storage Temperature: -20°C to 70°C
- Humidity: 5% to 95% RH, non-condensing
- Mounting: DIN rail compatible, lockable USB cable included
- Certifications: FCC, CE
- Dimensions: 132 mm x 80 mm x 32 mm
Buy the Microcontroller Module USB-4750: 32-Channel Isolated Digital I/O
Purchase the Digital I/O Module online today and upgrade your automation setup with this versatile, high-isolation, DIN rail-mountable device. Featuring 16 digital inputs and 16 outputs with 2,500V isolation protection, it ensures safety and noise immunity. Built for USB 1.1/2.0 standards, it supports input voltage from 5V to 60V DC and provides interrupt and timer/counter functionalities. The compact design includes a lockable USB cable, making installation secure and efficient for industrial control applications.
Order your Microcontroller Module USB-4750 today and enhance your control system with high-voltage isolation and reliable digital input/output channels.
Frequently Asked Questions
Where can I buy Advantech Automation USB4750BE?
You can click on the BUY or RFQ button to purchase USB4750BE from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part USB4750BE?
You can download the USB4750BE datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of USB4750BE?
Advantech Automation
