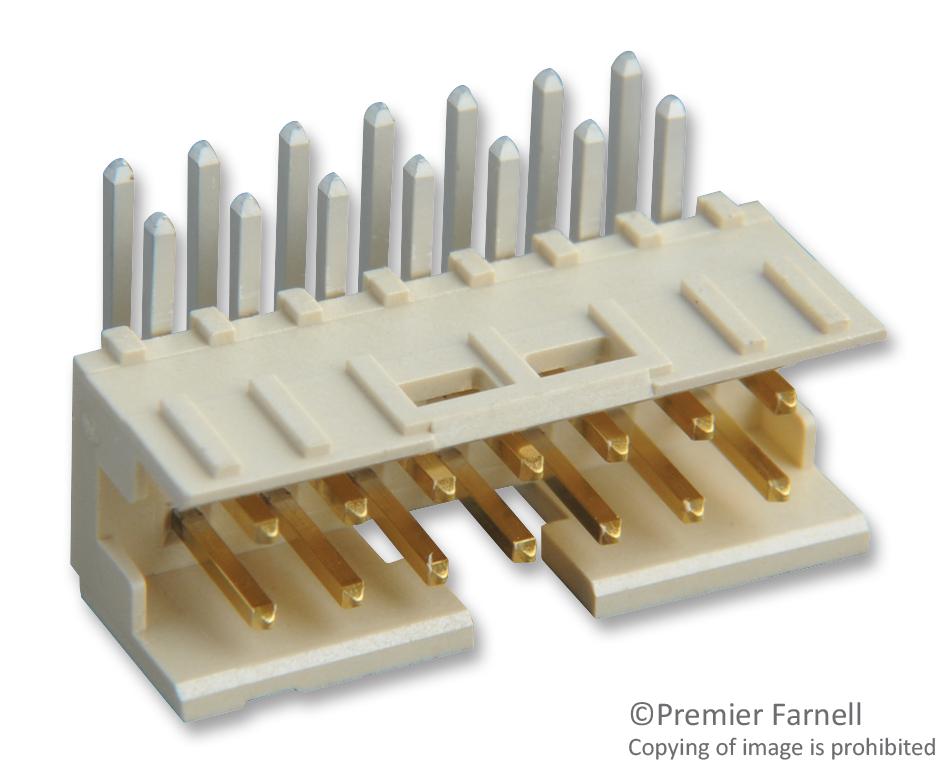

AMPHENOL COMMUNICATIONS SOLUTIONS 98464G6114ULF Pin-in-Paste Connector
Minitek headers for pin-in-paste processes are designed for SMT manufacturing, enabling automatic or manual placement on PCBs with high-temperature thermoplastic housings that withstand exposure to 260°C. With short pin lengths of 2 ± 0.2mm and standoffs to facilitate solder flow, these connectors ensure reliable solder joints and mechanical strength. Available in shrouded and unshrouded variants, they support up to 50-150 pin configurations. Suitable for industrial and automotive applications, they are RoHS compliant, with gold and tin-plated contacts, rated for 1A to 2A currents. Compatible with IR reflow soldering and designed following strict guidelines for optimal paste application and board layout.
AMPHENOL COMMUNICATIONS SOLUTIONS 98464G6114ULF Pin-in-Paste Connector Specifications:
- Housing Material: High-temperature thermoplastic
- Housing Color: Black
- Flammability: UL94V-O
- Pin Material: Phosphor bronze
- Plating: Gold and tin over 1.27 µm nickel
- Current rating: 1A (unshrouded), 2A (shrouded)
- Insulation resistance: 10000MΩ minimum
- Dielectric withstanding voltage: 650V
- Operating temperature: -55°C to +125°C (unshrouded), -40°C to +125°C (shrouded)
- Pin retention: ≥7N
- Reflow profile: TA-842
- Compatible with IR reflow soldering processes
- RoHS compliant according to EU Directive 2002/95/IEC
- Number of positions: 2 to 50, in 0.1 mm increments
- Packaging: Tape-on-reel or tube (availability varies)
- Mating side: Gold flash or gold plating
- Solder side: Tin plating
- Application: PCB connectors for SMT with pin-in-paste technology
Buy the FCI Series Minitek Pin-in-Paste Connectors: 98464G6114ULF
Purchase the FCI Minitek Pin-in-Paste Connector today for reliable and robust soldering in SMT manufacturing. Designed with high-temp thermoplastic housing, precise pin length, and gold and tin-plated contacts, these connectors ensure excellent electrical performance and mechanical strength. Suitable for industrial and automotive sectors, they support up to 150 pins with RoHS compliance. Available in tape-on-reel or tube packaging, they are compatible with IR reflow soldering, making assembly efficient and dependable. Trust FCI for quality PCB connection solutions.
Get FCI Minitek 98464G6114ULF today—built for precision and long-lasting durability in high-temperature SMT applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 98464G6114ULF?
You can click on the BUY or RFQ button to purchase 98464G6114ULF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 98464G6114ULF?
You can download the 98464G6114ULF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 98464G6114ULF?
AMPHENOL COMMUNICATIONS SOLUTIONS
