AMPHENOL COMMUNICATIONS SOLUTIONS HSDNARPPCB19B Automotive Shielded Connector
The HSD Connector System is a fully shielded automotive interconnect that supports low-voltage differential signals for applications like LVDS cameras, USB, and IEEE 1394. It features enhanced retention force, compatibility with other products, resistance to reflow soldering temperature, and is USCAR-2 compliant. Made with high-temperature polymer housing and copper alloy contacts, it ensures reliable electrical performance and durability through 25 mating cycles. The system supports automated assembly and offers various configurations, including low profile and right angle options, tailored for in-vehicle infotainment, ADAS, and camera systems, meeting stringent automotive standards.
AMPHENOL COMMUNICATIONS SOLUTIONS HSDNARPPCB19B Automotive Shielded Connector Specifications:
- Housing: High Temperature Polymer, UL94V-0
- Contacts: Copper Alloy
- Die Casting: Zinc Alloy
- Cover: Zinc Alloy
- Baffle: Stainless Steel
- Insertion Force: 35N max.
- Extraction Force without Locking Latch: 5N min.
- Durability: 25 Cycles
- Contact Resistance: 20 mQ max. per pin
- Isolation Resistance: Exceed 100 mQ at 500 VDC
- Dielectric Withstanding Voltage: AC 250Vrms per minute
- Temperature/Humidity Cycling: -40°C to +105°C, 90-95RH% / 40 Cycles
- High Temperature Exposure: Static 105°C / 1008 Hours
- RoHS, REACH/SVHC, Low Halogen, USCAR-2, ISO/TS Compliant

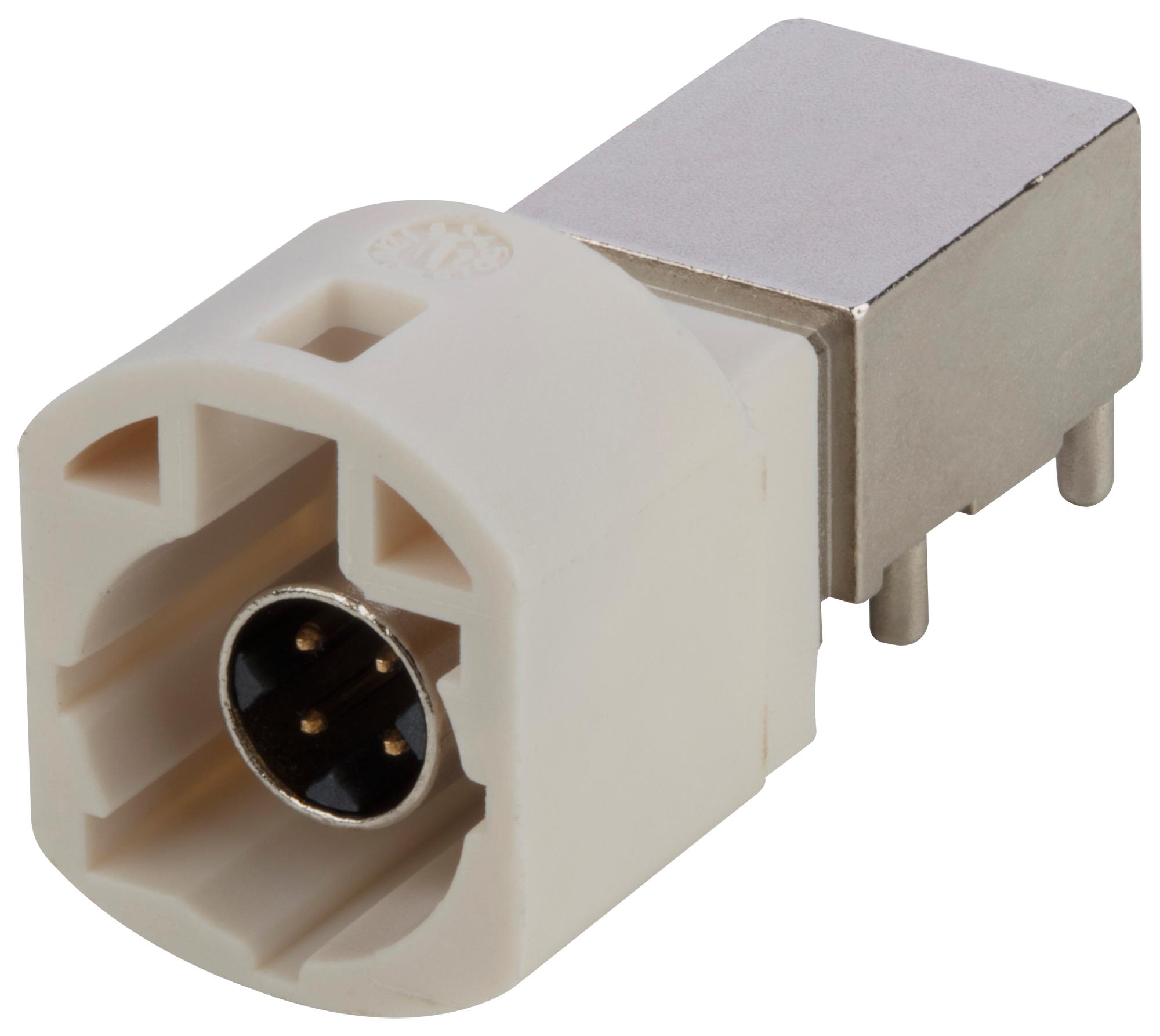

Buy the Amphenol Series HSD Connector: HSDNARPPCB19B
Discover the robust automotive shielded connector designed for low-voltage differential signals in vehicle systems such as cameras, USB, and infotainment. It features high retention force, excellent durability for 25 mating cycles, and resistance to reflow soldering temperatures. Made with high-temperature polymer and plated copper contacts, it ensures reliable electrical connections under harsh environments. Perfect for automated assembly and compliant with industry standards like USCAR-2, this connector is ideal for automotive manufacturers seeking high-quality, reliable interconnect solutions for advanced driver assistance, infotainment, and camera modules.
Buy Amphenol HSDNARPPCB19B now and experience unmatched reliability and high-performance automotive connectivity for your critical systems.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HSDNARPPCB19B?
You can click on the BUY or RFQ button to purchase HSDNARPPCB19B from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HSDNARPPCB19B?
You can download the HSDNARPPCB19B datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HSDNARPPCB19B?
AMPHENOL COMMUNICATIONS SOLUTIONS
