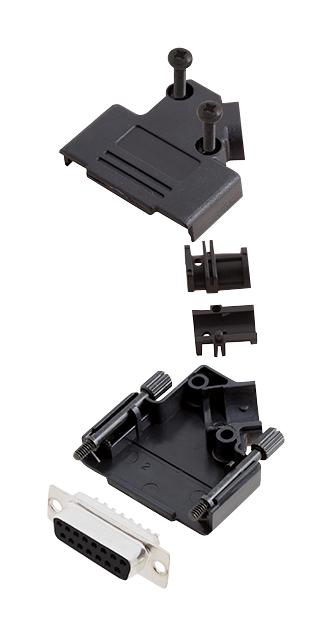

Amphenol-Communications-Solutions L17D45PKP15L77SDA15S D-Sub Connector
The D-Sub Hood and Solder Cup connectors are designed for reliable cable management and secure electrical connections in electronic systems. Made from UL 94 V-0 plastic, these components operate within -55°C to +110°C temperature ranges, ensuring durability in harsh environments. The D-Sub Hood features side cable entry and is compatible with cable O.D. up to 11.5mm, with standard UNC 4-40 thumbscrews. The Standard D-Sub Solder Cup has a glass-filled insulator, tin-plated steel shell, and copper alloy contact pins with gold flash plating over nickel, supporting voltages over 1000V and current of 5A. Sizes range from 9 to 37 ways, with strain relief inserts providing secure termination. Their sturdy construction ensures optimal performance in industrial and communication applications.
Amphenol-Communications-Solutions L17D45PKP15L77SDA15S D-Sub Connector Specifications:
- Material: UL 94 V-0 plastic for hood and glass-filled TP for insulator
- Operating Temperature: -55°C to +110°C for hood, -55°C to +85°C for solder cup
- Cable Entry: Side, Cable O.D. Up to 11.5mm
- Color: Black
- Shell Material: Steel, Tin Plated
- Contact Pins: Copper Alloy with Gold flash over Nickel
- Voltage Rating: >1000V RMS to 50 Hz for 1 minute
- Current Rating: 5A
- Insulator Resistance: >5000MQ min.
- Connector Sizes: 9, 15, 25, 37 ways
- Strain Relief: Inserts for secure termination
- Operating Temperature Range: -55°C to +110°C for hood, -55°C to +85°C for solder cup
- Standard Thumbscrews: UNC 4-40
- Dimensions: Varies with number of ways; 9-way: 31.0x36.3x15.0mm, 15-way: 39.5x40.3x15.0mm, 25-way: 53.2x40.3x15.0mm, 37-way: 69.7x40.3x15.0mm
Buy the Amphenol Series D-Sub Connector: L17D45PKP15L77SDA15S
Order the durable D-Sub Connector and Hood set today from authorized distributors. Built with UL 94 V-0 plastic for enhanced safety, supporting up to 110°C, and compatible with cable O.D. up to 11.5mm. Designed for secure connections in industrial, communication, and control systems, these connectors feature high-performance copper alloy contacts with gold flash plating over nickel, ensuring superior electrical stability. Sizes available from 9 to 37 ways, with strain relief inserts, making them suitable for critical applications where reliability is essential. Secure your electronic system connection now!
Buy Amphenol L17D45PKP15L77SDA15S now and experience unmatched reliability and performance with durable, multi-way D-Sub connectors for professional electronic projects.
Frequently Asked Questions
Where can I buy Amphenol-Communications-Solutions L17D45PKP15L77SDA15S?
You can click on the BUY or RFQ button to purchase L17D45PKP15L77SDA15S from an authorized Amphenol-Communications-Solutions distributor.
How do I troubleshoot issues or seek technical support for part L17D45PKP15L77SDA15S?
You can download the L17D45PKP15L77SDA15S datasheet or visit the Amphenol-Communications-Solutions website for support.
Who is the manufacturer of L17D45PKP15L77SDA15S?
Amphenol-Communications-Solutions
